3.1.2 POWER SUPPLY UNIT

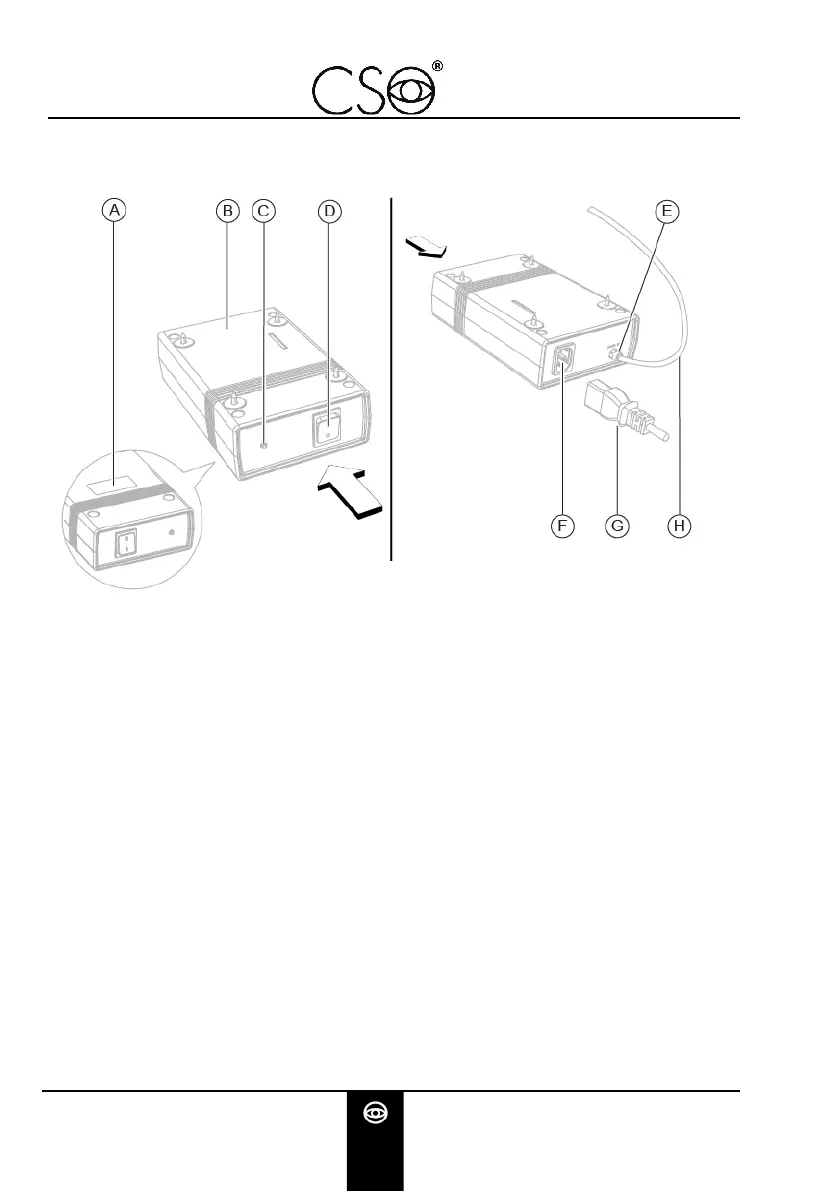

Fig 7 - Power supply unit
Pos
Description
A
Data plate
B
Power supply unit
C
Power supply status control light
D
ON/OFF switch
E
Power supply out connector
F
Power supply mains connector
G
Power supply cable
H
Device power cable
