User's ManualHS-2800
6
JOYSTICK：
•Self Diagnostic Warning Lights
Flashing of lights indicates there is a problem within power chair. See page 18 for more
information.
•Battery Gauge
There are eleven LED lights on joystick. When all LED lights are on, batteries are fully
charged; The Battery Gauge is used to indicate power on and provides an estimate of
the remaining battery capacity.
Any green LEDs lit indicate well charged batteries.
If only amber and red LEDs are lit, the batteries are moderately charged. Recharge
before undertaking a long trip.
If only red LEDs are lit, the batteries are running out of charge. Recharge as soon as
possible.
•Swing Away Bracket
The joystick is able to extend and retract. With joystick retracted, this enables you to
pull up to any table.
ARMREST：
•Armrest width & height Adjustment Thumbscrews
Loosen two thumbscrews to adjust armrest width & height tighten again to lock in
desired position.

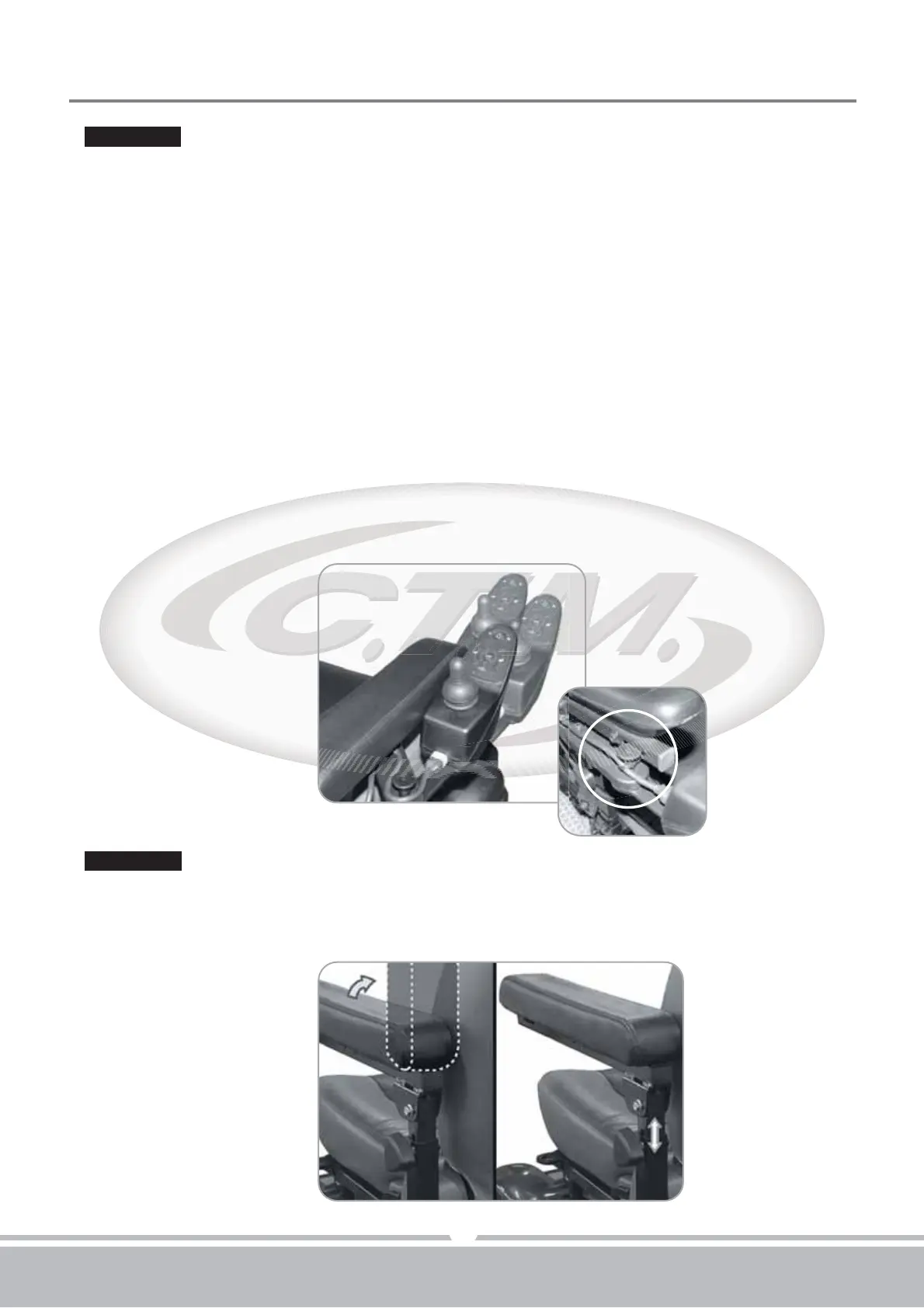

Figure 4
Figure 5
