User's ManualHS-2800
7

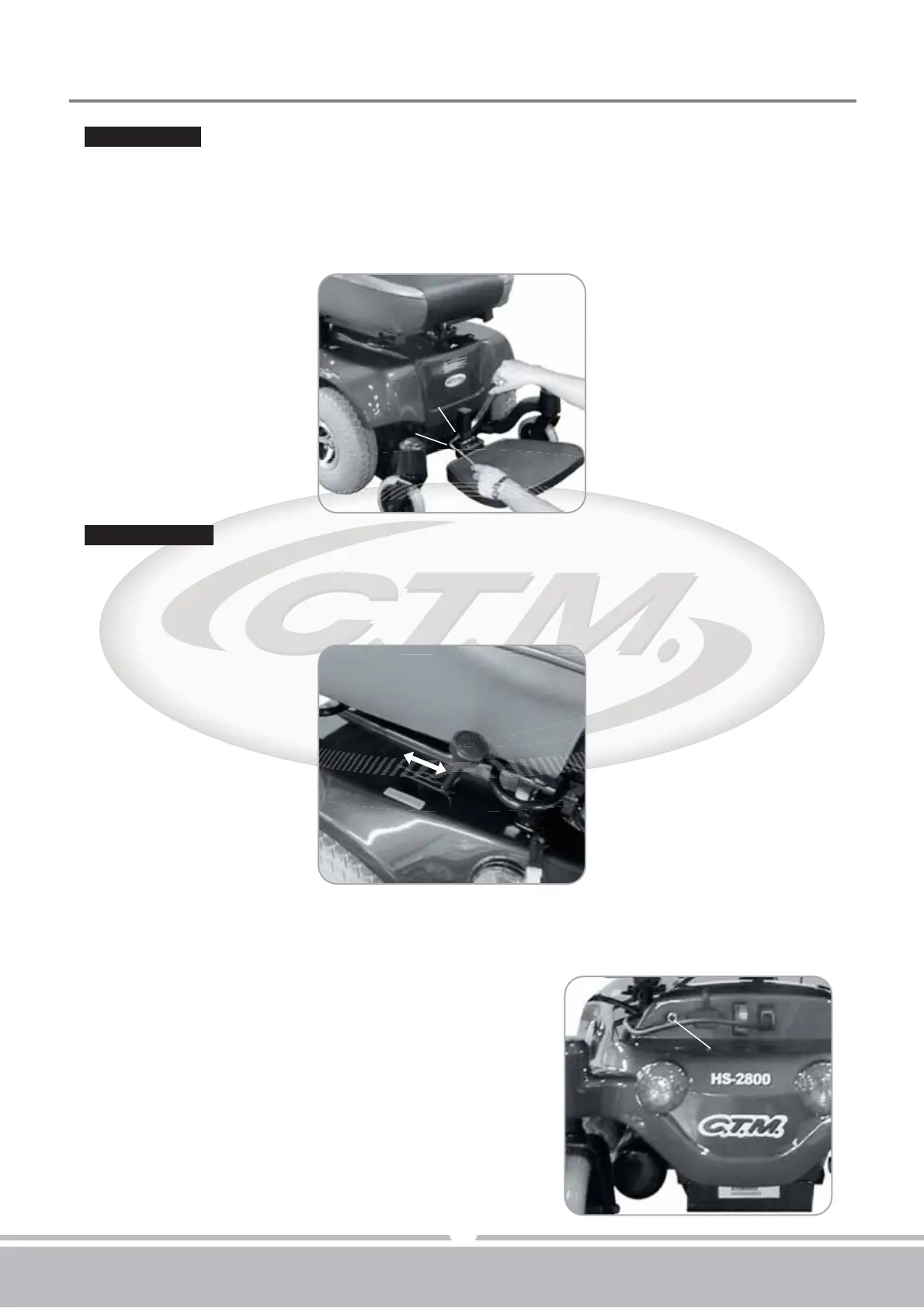

FOOTPLATE：
•Footplate
The footplate can be adjusted according to your specific needs. It can be width &
adjusted vertically or horizontally. To adjust footplate, loosen screw and arrange height
to desired position, then, tightened screw to secure plate in place. (A & B)
Figure 6
POWER BASE：
•Free-Wheeling Lever
When lever is in N (Neutral) position, power chair can be moved manually.
When lever is in D (Drive) position, power chair can be driven. Normal position is D.
•Circuit Breaker
This is to protect your power chair from overloaded current within the electrical parts.
If power chair suddenly stops, push circuit breaker (C) back in will help resolve this
problem.
•Charging port
When charging your power chair, use power cord
provided. To correctly charge your power chair, connect
one end to power chair and the
other end to a
wall
outlet. See Charging the Batteries, page 14 for further
instructions.
Figure 7
Figure 8
(C)
(A)
(B)
