Logika - use and maintenance guide
7/16
page

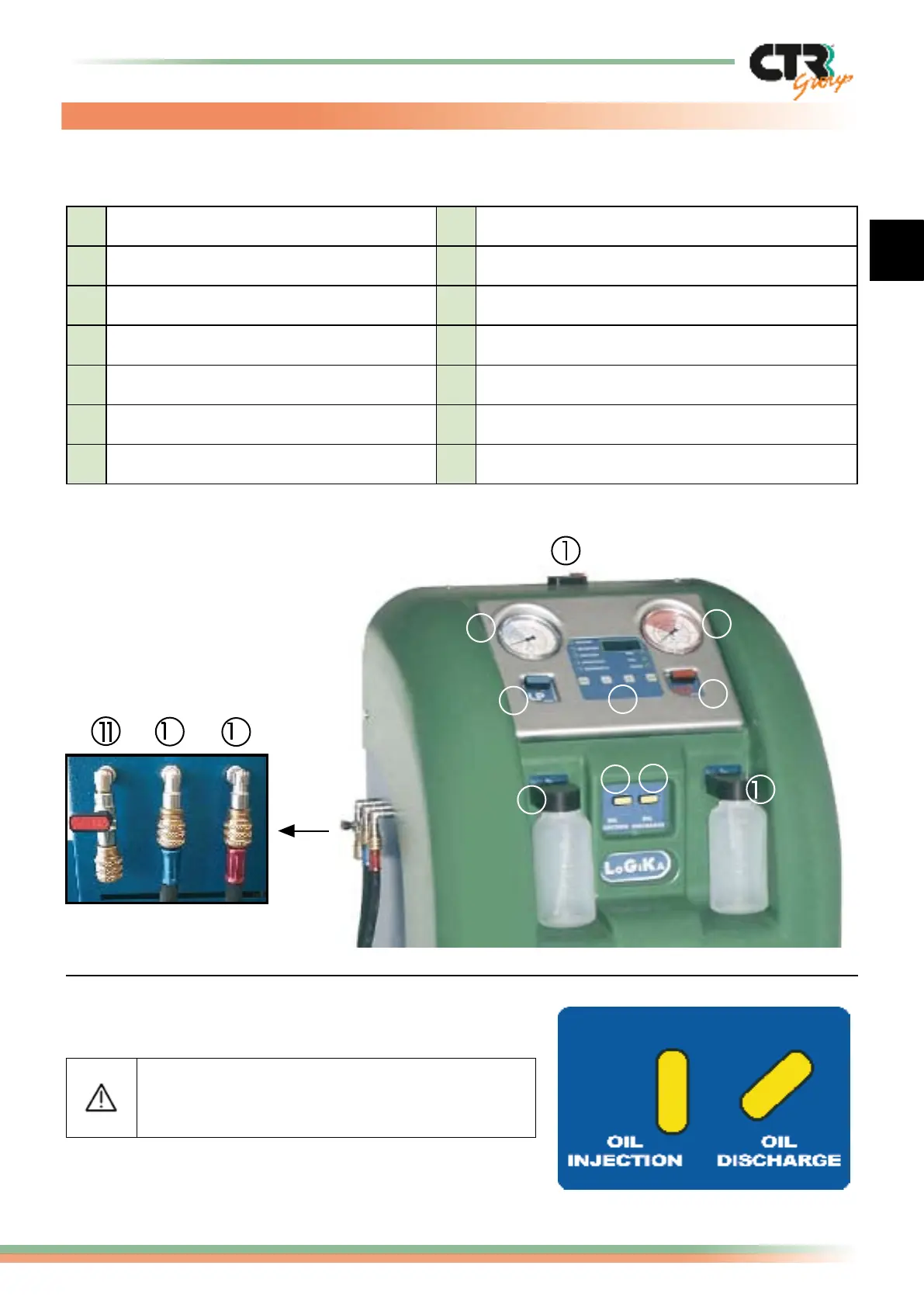

1 ON/OFF Emergency switch 8 Oil injection valve (OIL INJECTION)
2 Control panel 9 Oil discharge valve (OIL DISCHARGE)
3 Low pressure gauge 10 bar 10 Used oil discharge tank connection
4 High pressure gauge 30 bar 11 Ref. Service coupling
5 LP valve (low pressure) 12 Low pressure connection (Blue)
6 HP valve (high pressure) 13 High pressure connection (Red)
7 Oil injection tank connection
6. Controls
This section describes the main functions present on the machine control panel:
During the normal working of the machine
keep the valve no. 8 completely open and
the valve no. 9 open to approx. 45°.
