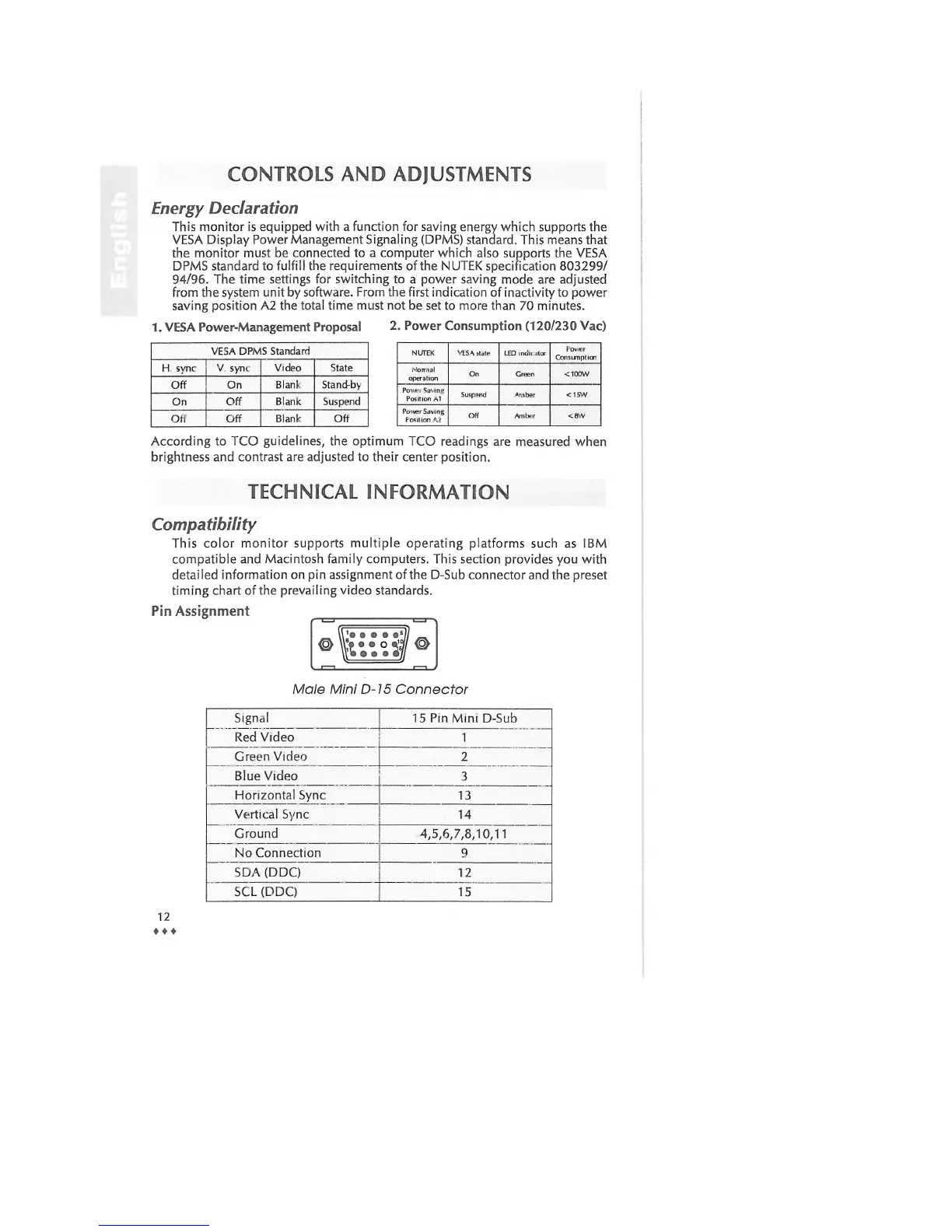

CONTROLS AND ADJUSTMENTS
Energy Declaration
This monitor is equipped with a function for saving energy which supports the
VESA Display Power Management Signaling (DPMS) standard. This means that
the monitor must be connected to a computer which also supports the VESA
DPMS standard to fulfill the requirements of the NUTEK specification 803299/
94/96. The time settings for switching to a power saving mode are adjusted
from the system unit by software. From the first indication of inactivity to power
saving position A2 the total time must not be set to more than 70 minutes.
1. VESA Power-Management Proposal 2. Power Consumption (120/230 Vac)
VESA DPMS Standard
H sync-
V syni Video
State
Off
On Blant Stand-by
On Off Blank Suspend
Off
Off
Blank Oft
NUTEK VtS^stdtP LEO Indii nor
Povucr
Consumption
Normal
operation
On Grpen <100W
Po*--
г
Savine
Position Л1
Suspend
A.'.iber <15W
Ро'маг Saving
Position Kl
Off ЛпЬ< r <BW
According to TCO guidelines, the optimum TCO readings are measured when
brightness and contrast are adjusted to their center position.
TECHNICAL INFORMATION
Compatibility
This color monitor supports multiple operating platforms such as IBM
compatible and Macintosh family computers. This section provides you with
detailed information on pin assignment of the D-Sub connector and the preset
timing chart of the prevailing video standards.
Pin Assignment
Male Mini D-15 Connector
Signal 15 Pin Mini D-Sub
Red Video 1
Green Video
2
Blue Video
3
Horizontal Sync
13
Vertical Sync
14
Ground 4,5,6,7,8,10,11
No Connection
9
SDA (DDC) 12
SCL (DDC) 15
12
• • •
