Series 1000 and 1500
35
21.4. Using a 7/8 socket and extension, remover the
nut securing the transmission pulley to the trans
-
mission. See Figure 21.4.
21.5. Remove the pulley from the unit.
21.6. Support the frame of the unit to allow removal of
both rear wheels.
See Figure 21.6.
NOTE: Leave room under the rider to allow low-
ering the transaxle from the unit.

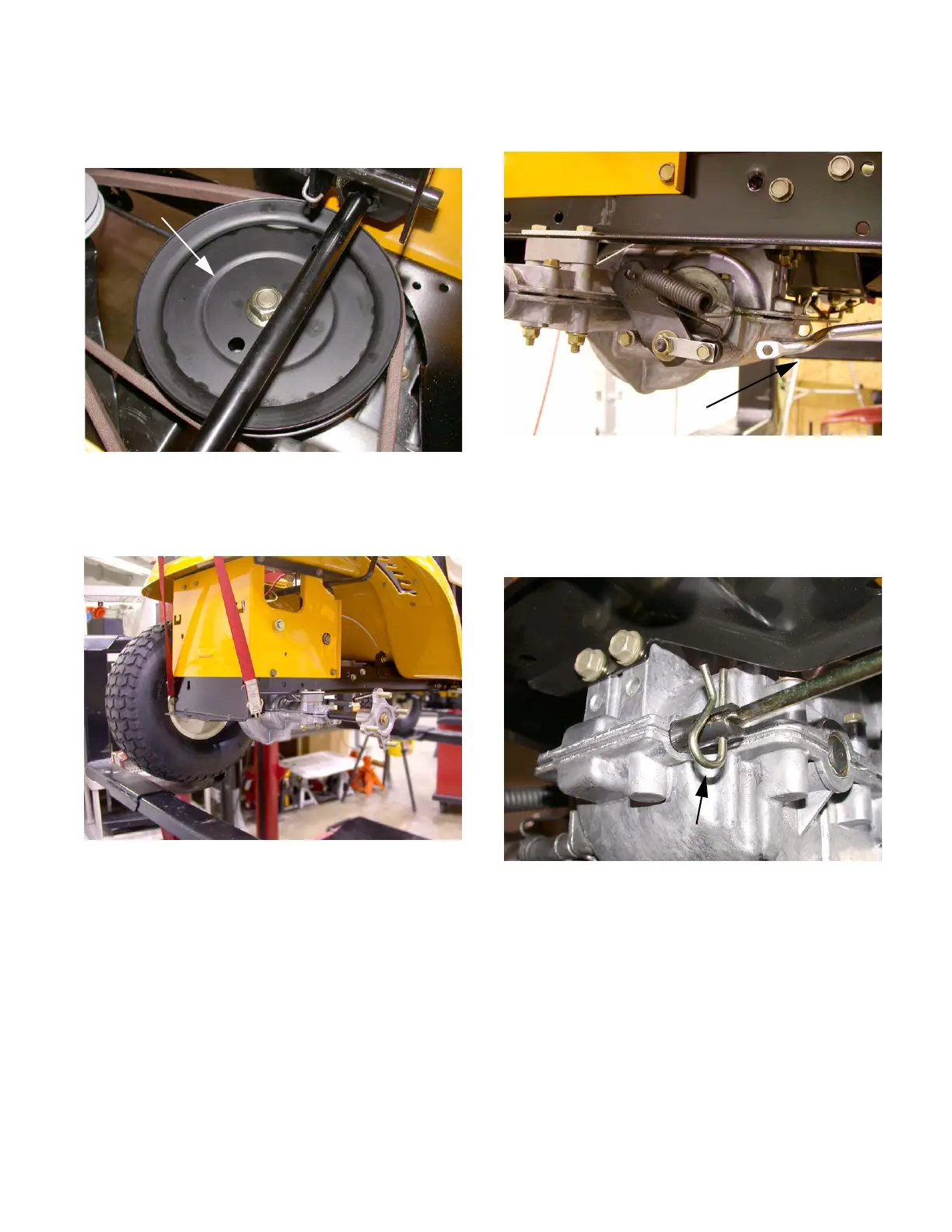

Figure 21.4
Transmission pulley
Figure 21.6
21.7. Disconnect the brake linkage where it connects
to the brake spring.
See Figure 21.7.
21.8. Use white-out to mark the position of the ferrule
on the transmission shift rod.
21.9. Remove the hairpin clip securing the transmis-
sion shift rod to the transmission. See Figure
21.9.
21.10.Using a 1/2” socket, remove the two hex screws
securing the front of the transmission housing to
the transmission support bracket.
See Figure
21.9.
21.11. Support the transmission from below.
Figure 21.7
Brake linkageBrake linkage
Figure 21.9
Hairpin clip
