11Section 3 — ASSembly & Set-Up
Assembly (If Equipped with Overhead Chute Control)
Handle Assembly
1. Place the shift lever in the Forward-6 position.
2. Cut zip ties securing flex shaft to the lower handle and set
the flex shaft aside.
3. Remove rubber bands securing cables to carriage screws
and cut zip tie securing shift rod to lower handle. Carefully
pivot the handle upward. See Figure 3-12.
NOTE: You will need to lower shift rod to the side slightly
to manuever the handle panel over it when pivoting the
handle upward.

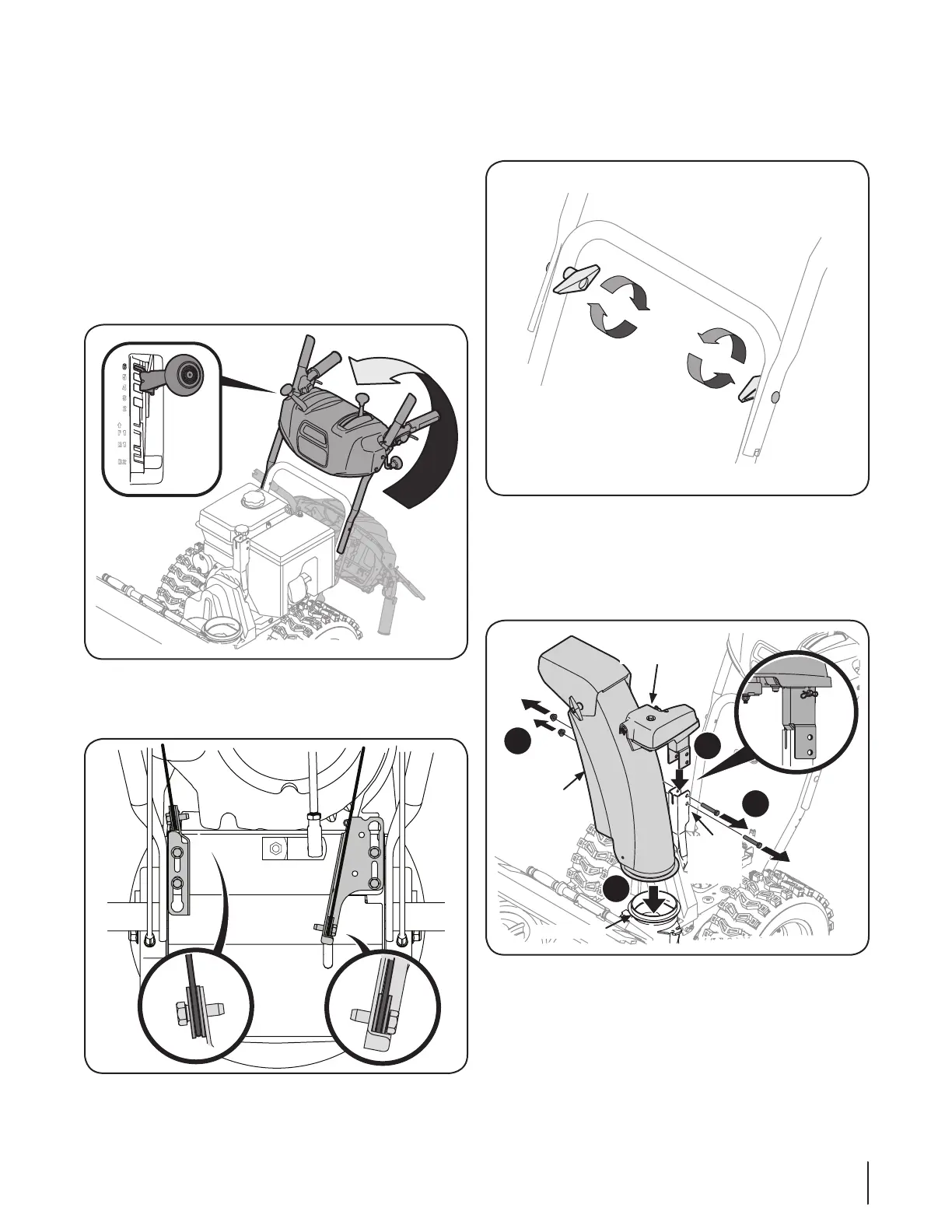

Figure 3-12
NOTE: Make certain the cables are seated properly in the
roller guides. See Figure 3-13.
Figure 3-13
4. Secure the handle by tightening the plastic knob located
on both the left and right sides of the handle. See Figure
3-14. Remove and discard any rubber bands, if present.
They are for packaging purposes only.
Figure 3-14
Chute Assembly
1. Remove the lock nuts and hex screws from chute support
bracket. Position the chute assembly over the chute base.
See Figure 3-15.
1
1
2
2
Chute
Assembly
Chute Base
Chute
Support
Bracket
Chute Control
Head
Figure 3-15
