Cub Cadet 3000 Series

6 - 2
Cub Cadet 3000

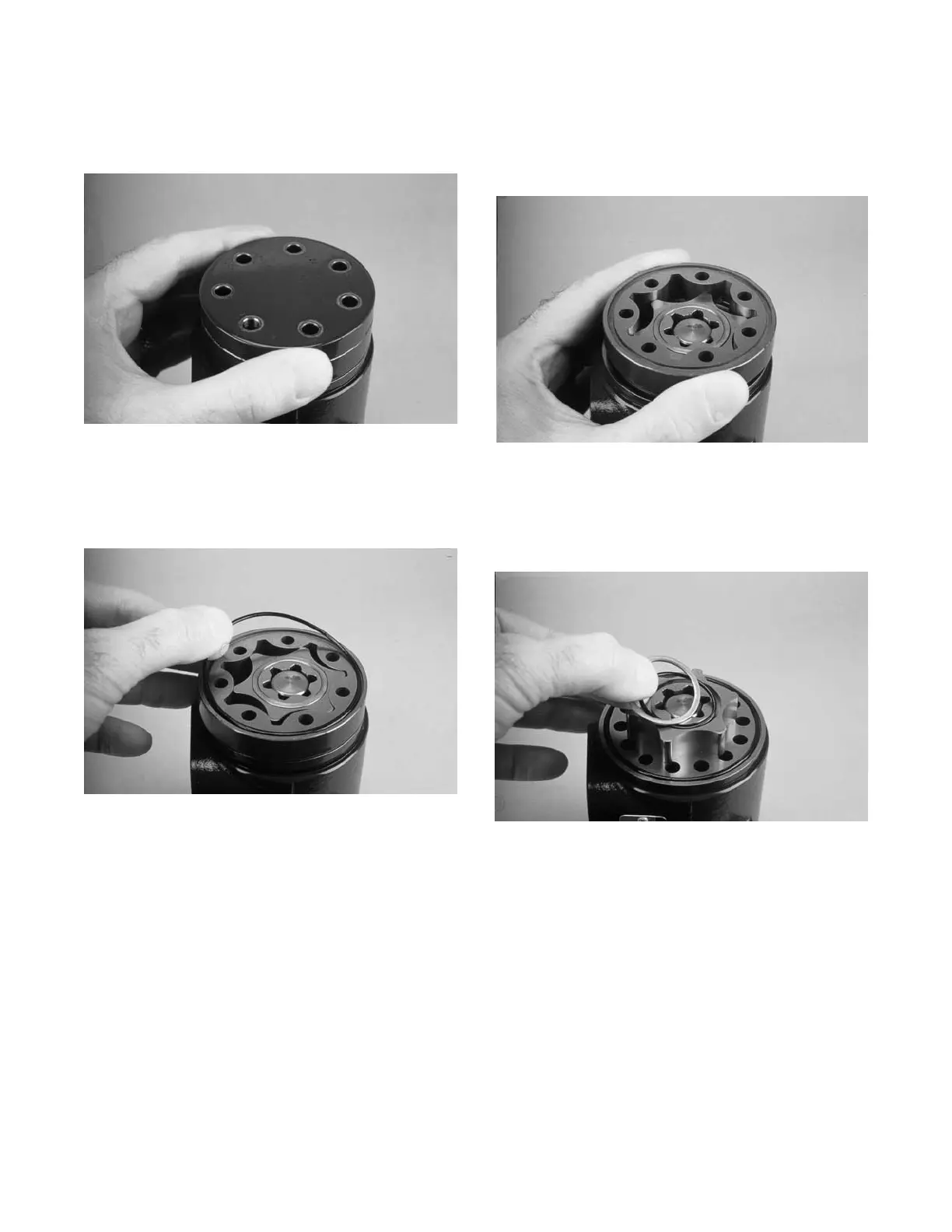

Figure 4.
Remove the end cap from the gerotor assembly.
Figure 7.
Figure 6.
Figure 5.
Remove the o-ring seal from the gerotor assemblies
outer ring.
Remove the gerotor assemblies outer ring.
NOTE: The gerotor assembly may/may not remain
intact during removal.
Remove both the seal ring and o-ring seal from the
gerotors inner star.
