Cub Cadet 3000 Series

6 - 3
Cub Cadet 3000

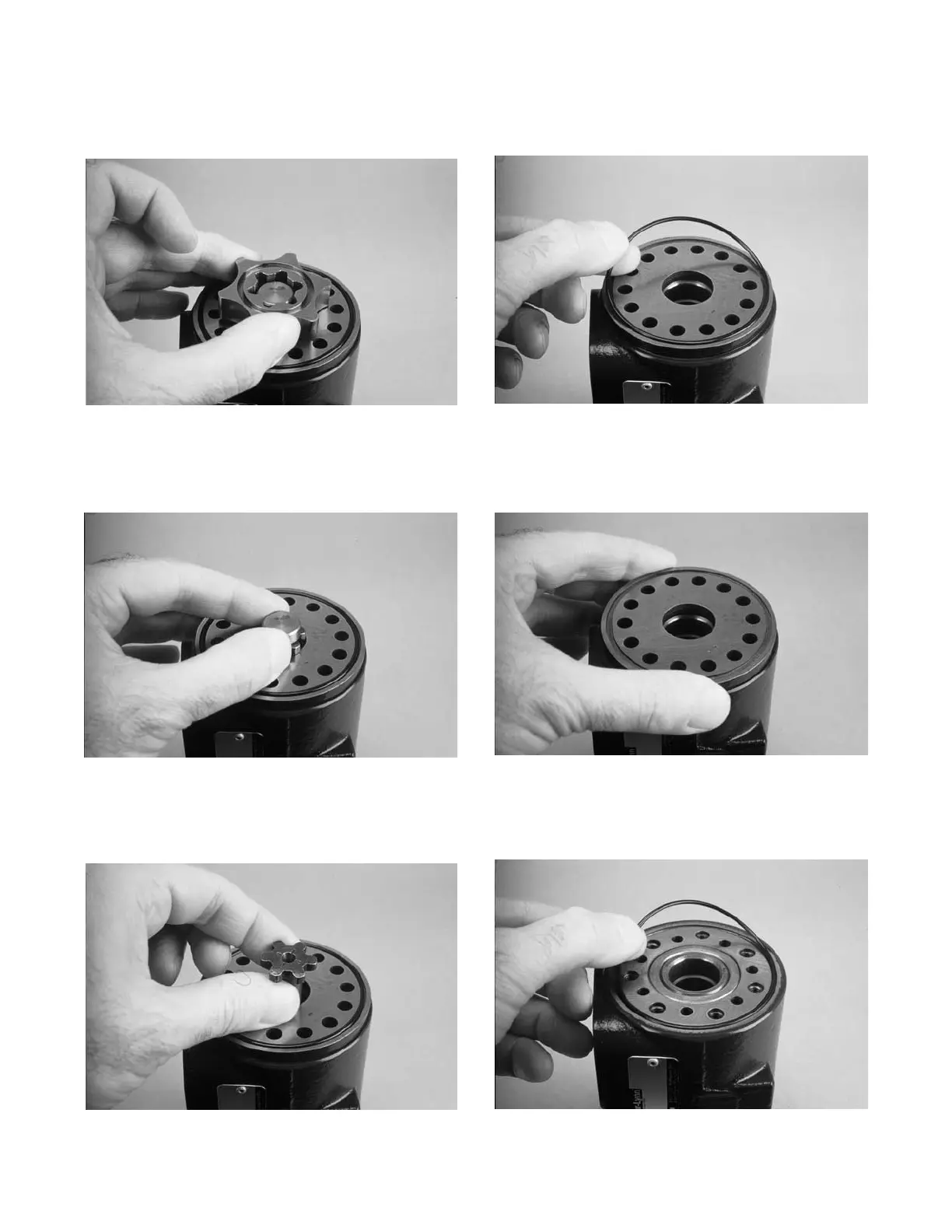

Figure 8.
Remove the gerotors inner star from the drive.
Remove the wear plate from the housing assembly.
Remove the o-ring seal from the wear plate.
Remove the drive from the spool/sleeve assembly.
Remove the spacer.
Figure 11.
Figure 10.
Figure 9.
Figure 13.
Figure 12.
Remove the o-ring from the control housing.
