Lubricate and install the o-ring seal into the groove
located in the control valve housing.
Lubricate and install the spool/sleeve assembly into
the valve housing.
Supporting the valve housing in the upright position,
lubricate and install the bearing races and thrust bear-
ing.
NOTE: The thrust bearing must be installed between
the two bearing races.

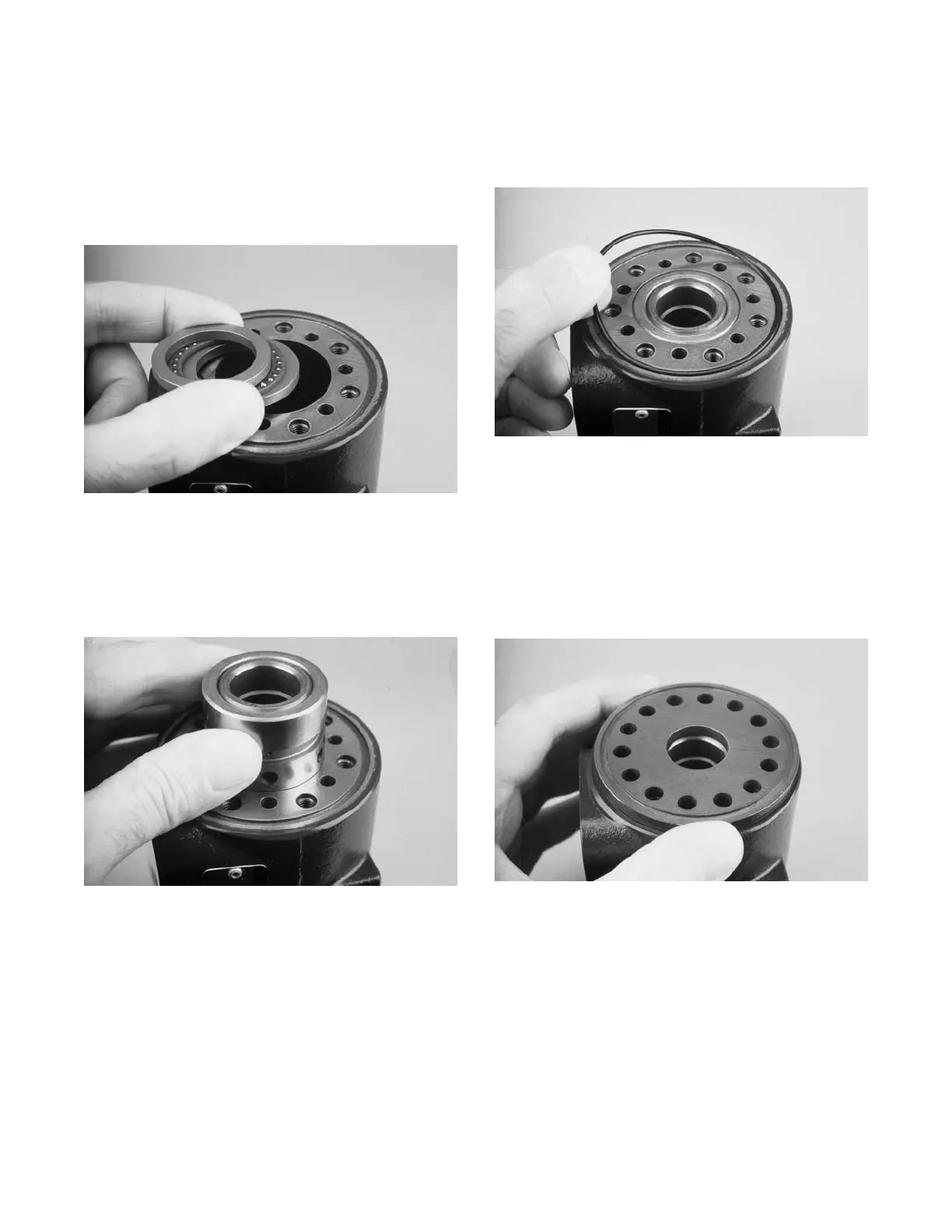

Figure 39.
Figure 38.
Figure 37.
Figure 40
Install the wear plate by aligning the holes in the wear
plate with the cap screw and porting holes in the con-
trol housing.
NOTE: The grooved side of the wear plate must point
upward.
