Push the spool assembly into the sleeve until the cen-
tering springs are firmly positioned into the notches
located in the sleeve.
Lubricate the spool assembly and install into the
sleeve, aligning the centering springs with the notches
machined in the sleeve.
Center the centering springs and install the spring
retaining ring over the springs.

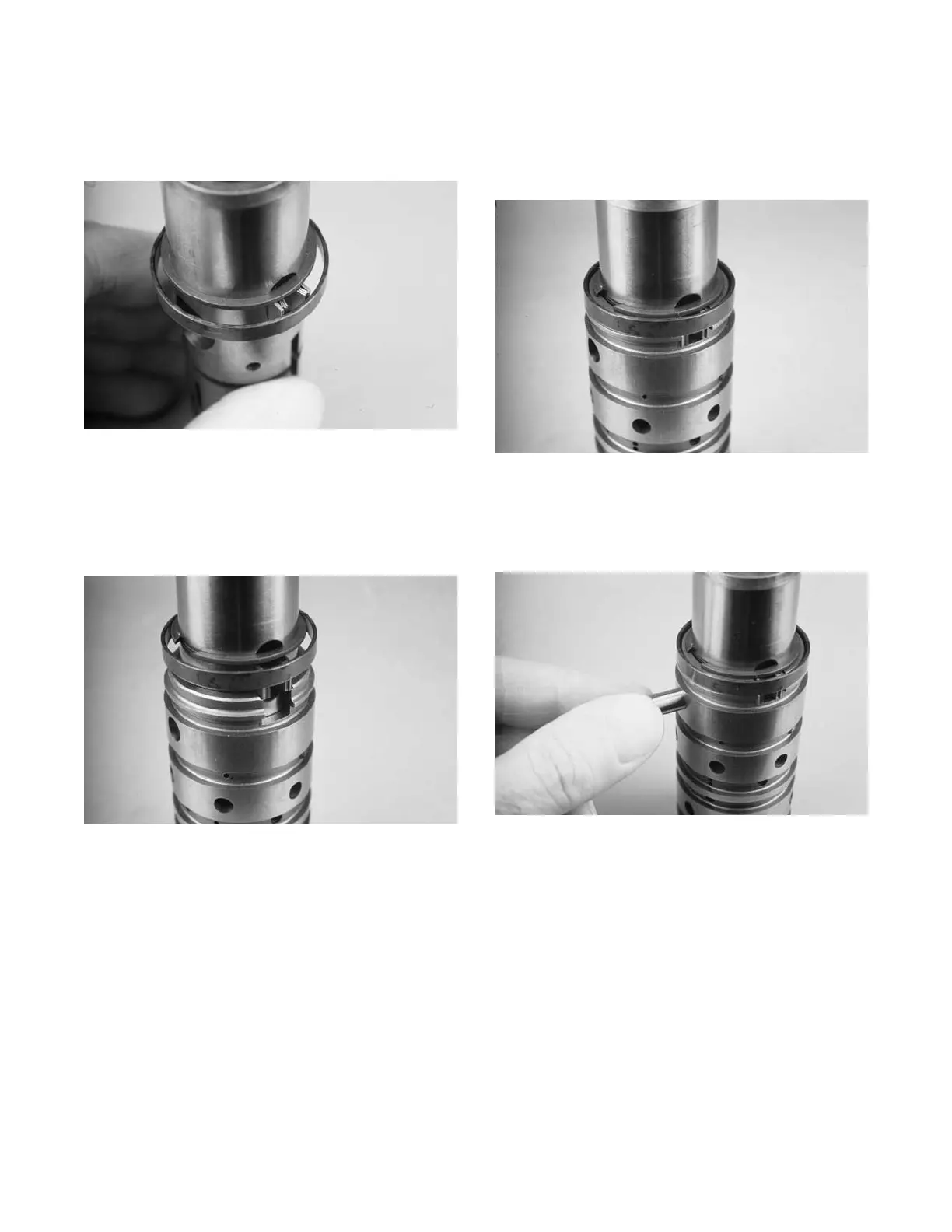

Figure 35.
Figure 34.
Figure 33.
Figure 36.
Insert the cross pin into the spool/sleeve assembly.
