Cub Cadet 3000
Next install one set of the 3 curved centering springs
between the two flat pieces.
To install the centering springs on the spool, first
install the two flat pieces.

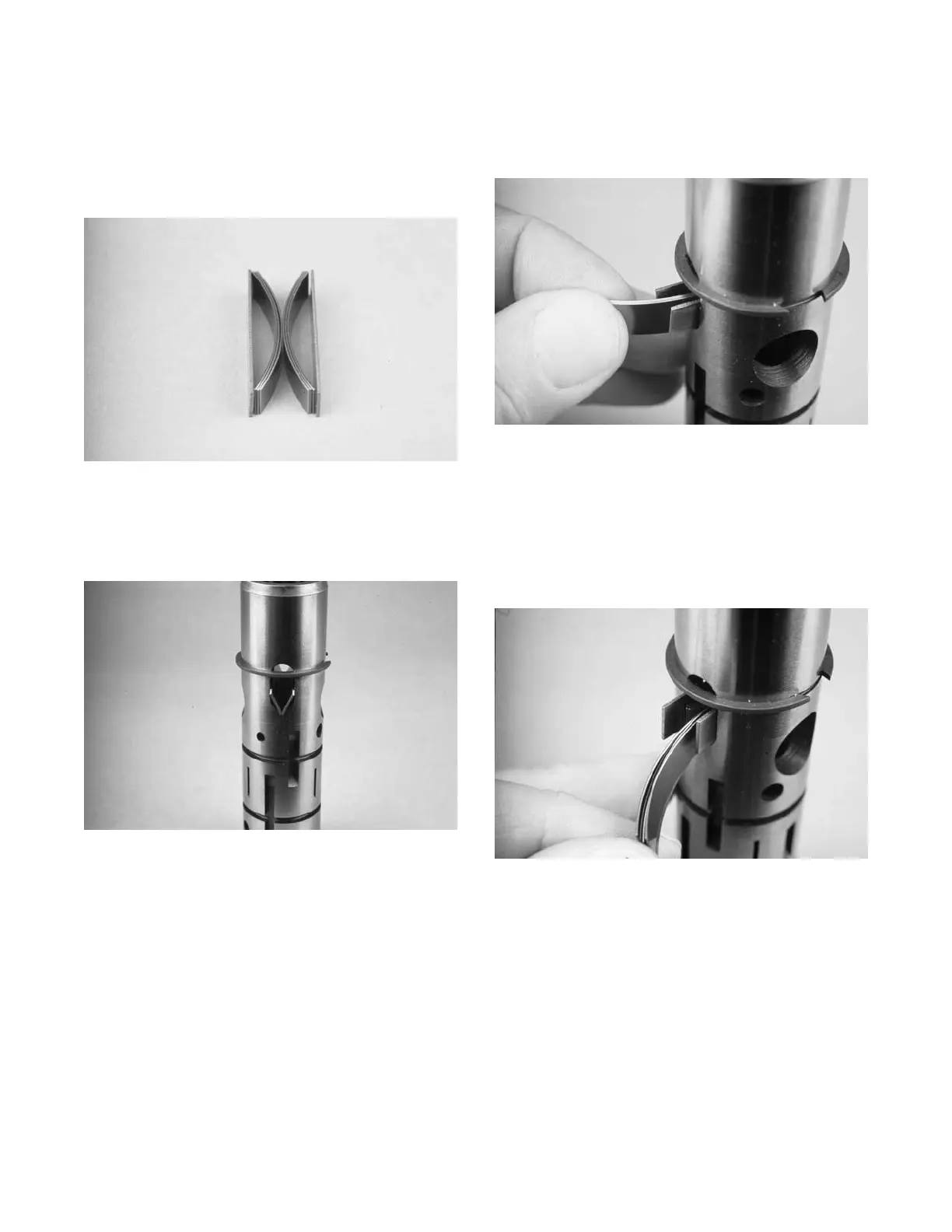

Shown here is the correct orientation of the
spool/sleeve centering springs. Two sets of (3) each
curved springs in the center and (1) each flat piece on
the outside.
Figure 31.
Figure 30.
Figure 29.
Figure 32.
Then install the final set of 3 curved centering springs
between the flat piece and the previously installed
curved centering springs.
NOTE: The bowed side of the two sets of 3 centering
springs must point toward each other.
