Cast Iron Transmission Disassembly
15A- 10
35. Place the differential assembly in a the vice (ver-
tically) with the hex bolts facing up. See Figure
26.
NOTE:
Only use a vice with soft-jaws.
36. Remove all four hex bolts securing the differen-
tial assembly together using a 9/16” socket. See
Figure 27.
NOTE:
Torque the hex bolts to 220-280 in.-lbs.
during assembly.
37. Remove the right differential housing cover and
flat washer from the right axle.
38. Remove both of the spiral retaining rings that
secure the right axle side gear to the axle using a
small flat-blade screw driver. See Figure 28.
39. Remove the 14T side gear.
40. Remove the 60T spur gear from the center differ-
ential assembly. See Figure 29.

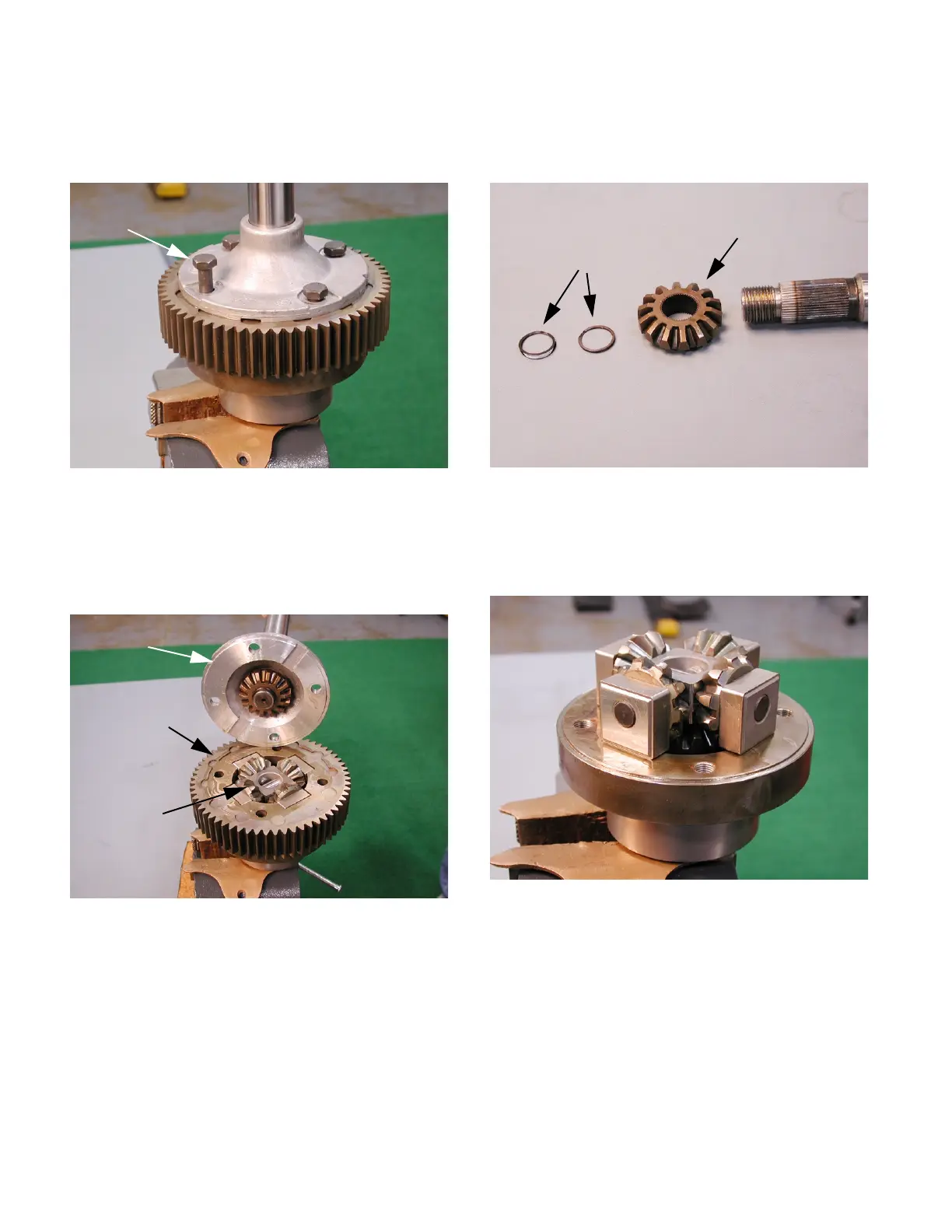

Figure 26
Hex Bolts
Figure 27
Spur Gear
Center
Assembly
Differential
Right Differential
Cover
Figure 28
Spiral Retaining Rings
14T Side Gear
Figure 29
Differential with Spur Gear Removed
