Cub Cadet 53AB5BBP750 - Seat Assembly

17

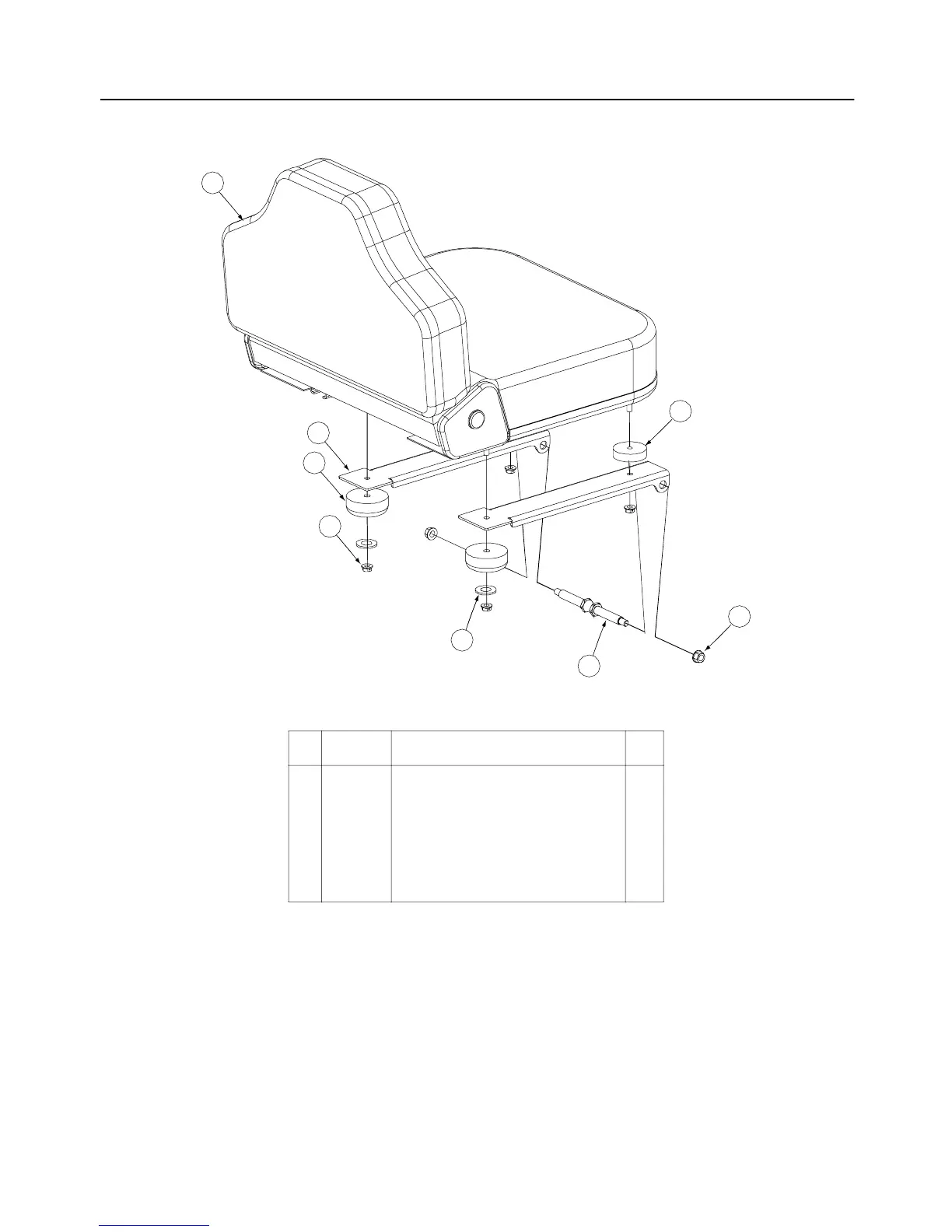

Seat Assembly- Figure 10 and Parts List
Ref.
No. Part No. Description Qty.
1 00022560 Nut, Hex 3/8-16 Flange Lock 2
2 01000635 Lock Nut, Hex Flange, 5/16-18 4
3 01001630 Mounting Bracket, Seat 2
4 01002634 Shoulder Screw, .50x2.345, 3/8-16 2
5 01002753 Grommet, 2.5 OD x 1.0 Long 2
6 750-3119 Spacer, .406 ID x 1.00 OD x .38 2
7 01006545 Adjustable Seat, Black 1
8 01000960 Flat Washer, .406 ID, 1.00 OD, .105 2
7
3
5
2
6
1
4
8
GD: 01007314-01/10/05
