16

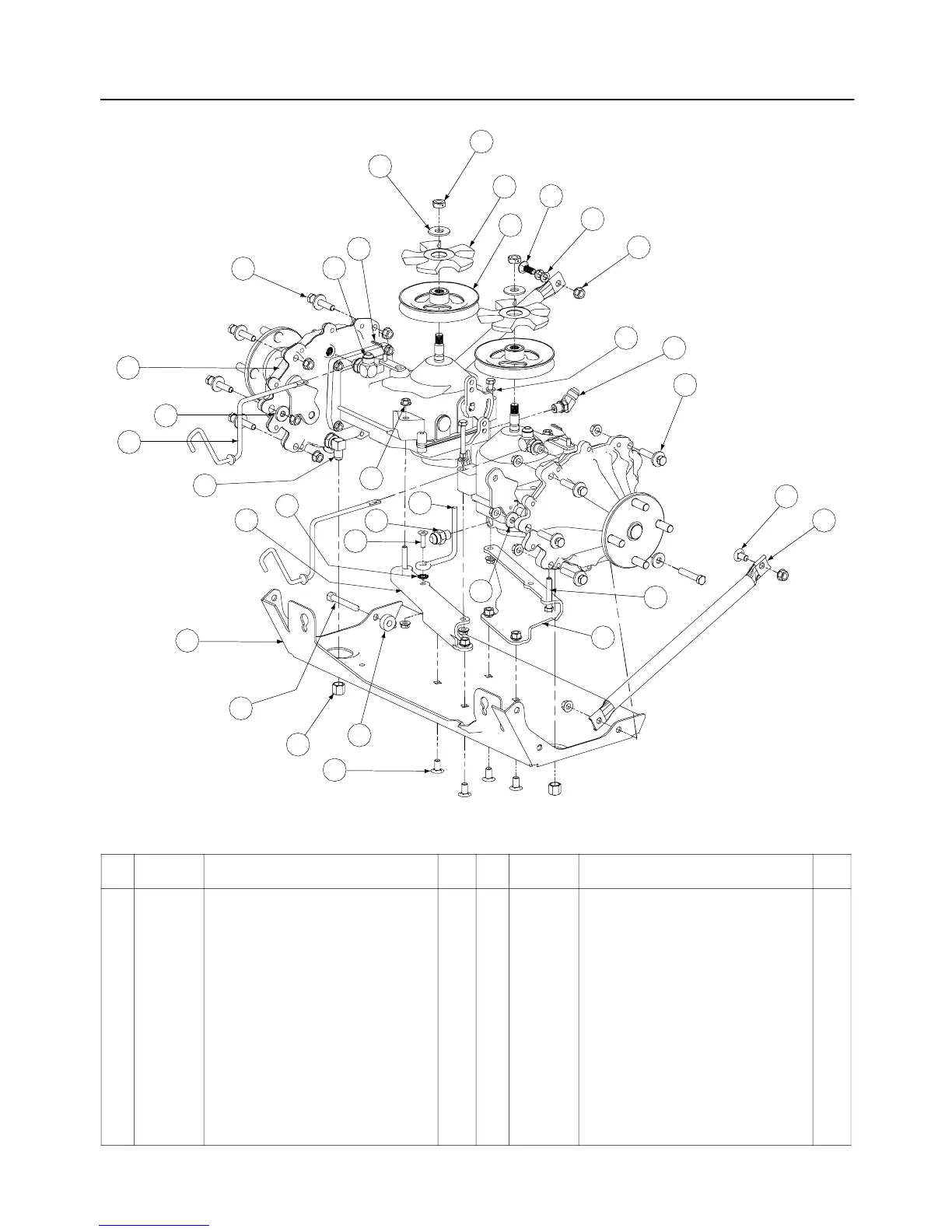

Drive Assembly- Figure 9 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00002528 Hex Cap Screw, 3/8-16 x 2 9 16 01001620 Skid Plate 1
2 00011459 Flat Washer, 1/2 2 17 01002602 Elbow Fitting, 3/8 x 3/8 2
3 00011861 Hex Cap Screw, 3/8-16 x 2.5 1 18 01002606 Fitting, 1/2 x 3x8 1
4 00012157 Lock Washer, 3/8 2 19 01002771 Cotter Pin, .072 x 1.12 Long 2
5 00012169 Flat Washer, 5/16 2 20 01003268 Pump Release Rod 2
6 00013198 Hex Cap Screw, 5/16-18 x 2 4 21 01003732 Slotted Hydro Pulley 2
7 00022560 Flange Lock Hex Nut, 3/8-16 16 22 01005339 Pulley Hydro Fan 2
8 01000372 Carriage Bolt, 3/8-16 x .75 Long 5 23 01004542 Elbow Fitting, O-Ring 3/8, 1/2 Flare 2
9 750-3119 Spacer, .406 ID x 1.00 OD x .38 1 24 01005114 Belt Guide 1
10 01000635 Hex Flange Lock Nut, 5/16-18 5 25 01005851 Washer 1
11 01000643 Carriage Bolt, 3/8-16 x 1 1 26 01005852 Screw, 5/16-18 x 1.00 1
12 01000723 Washer, .406 ID x 1.0 OD x .105 10 27 01006165 Support Mount Bracket 2
13 01001623 Nut Cap, 3/8 2 28 01007238 Flat Washer, .385 x 1.0 OD x .13 2
14 01001975 Elbow Fitting, 3/8 - 1/2 x 45° 1 29 01008229 Nut, 1/2-20, Center Lock 2
15 01001618 Frame Strut 2
8
9
13
16
26
25
27
18
24
3
20
5
3
1
23
19
29
22
21
2
11
7
4
15
8
12
5
14
17
10
28
6
27
GD: 01002578-01/12/05
