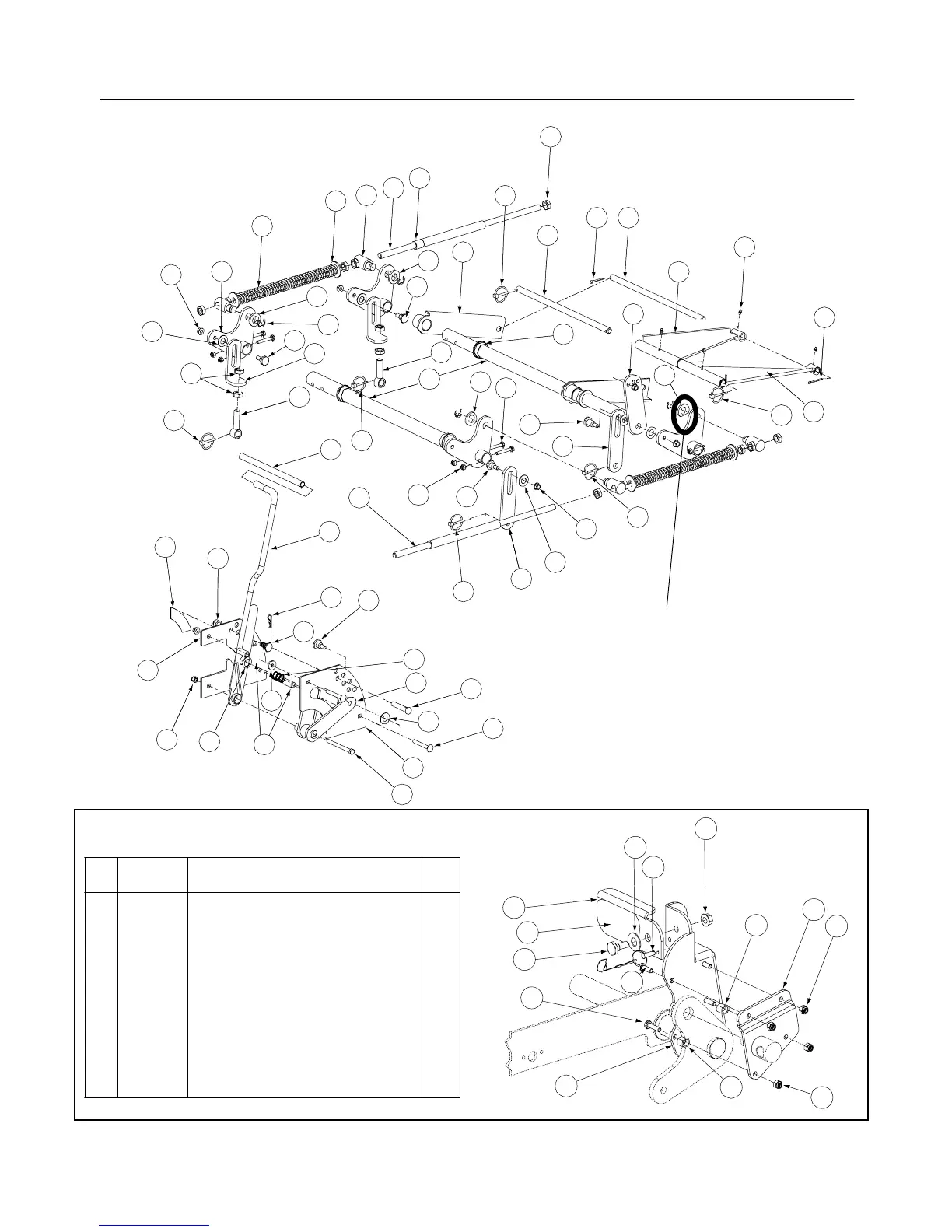

Lift Assembly - Figure 14
9
8
17
6
24
45
9
18
18
40
7
45
45
45
22
22
14
14
5
20
27
2
44
28
16
16
32
15
31
19
7
21
21
45
42
11
11
41
22
43
22
27
32
27
45
12
25
36
30
1
38
33
10
3
23
29
37
32
27
13
39
4
35
34
26
9
2
3
5
1
1
12
8
12
7
4
6
10
11
OPTIONAL FOOT PEDAL DECK LIFT
Ref.
No. Part No. Description Qty.
1 00012152 Lock Nut, Nylon Insert, 1/4-20 4
2 00012577 Washer, 1/2 x 1 Shim 1
3 01006786 Detent Pin w/Lanyard, 1/4" 1
4 00013131 Hex Cap Screw, 1/4-20, .75 2
5 00022560 Hex Nut, Flange Lock 3/8-16 1
6 01000944 Hex Cap Screw, 1/4-20, 1.00 2
7 01004118 Shoulder Screw, .50x.27 Lg., 3/8-16 1
8 01006409 Foot Lift Backup Pedal 1
9 01006352 Deck Foot Pedal Lift 1
10 01008359 Deck Foot Pedal Lift Holder 1
11 01006418 Deck Foot Lift Pad 1
12 00062715 Turnbuckle Sleeve 2
On units with the Foot Pedal Deck Lift
this washer (01003123) is removed.
GD: 01007373-11/22/04
