Cub Cadet 53AB5BBP750 - 18 HP Electrical Engine Assembly; 18 HP Electrical Engine Assembly Parts List

20

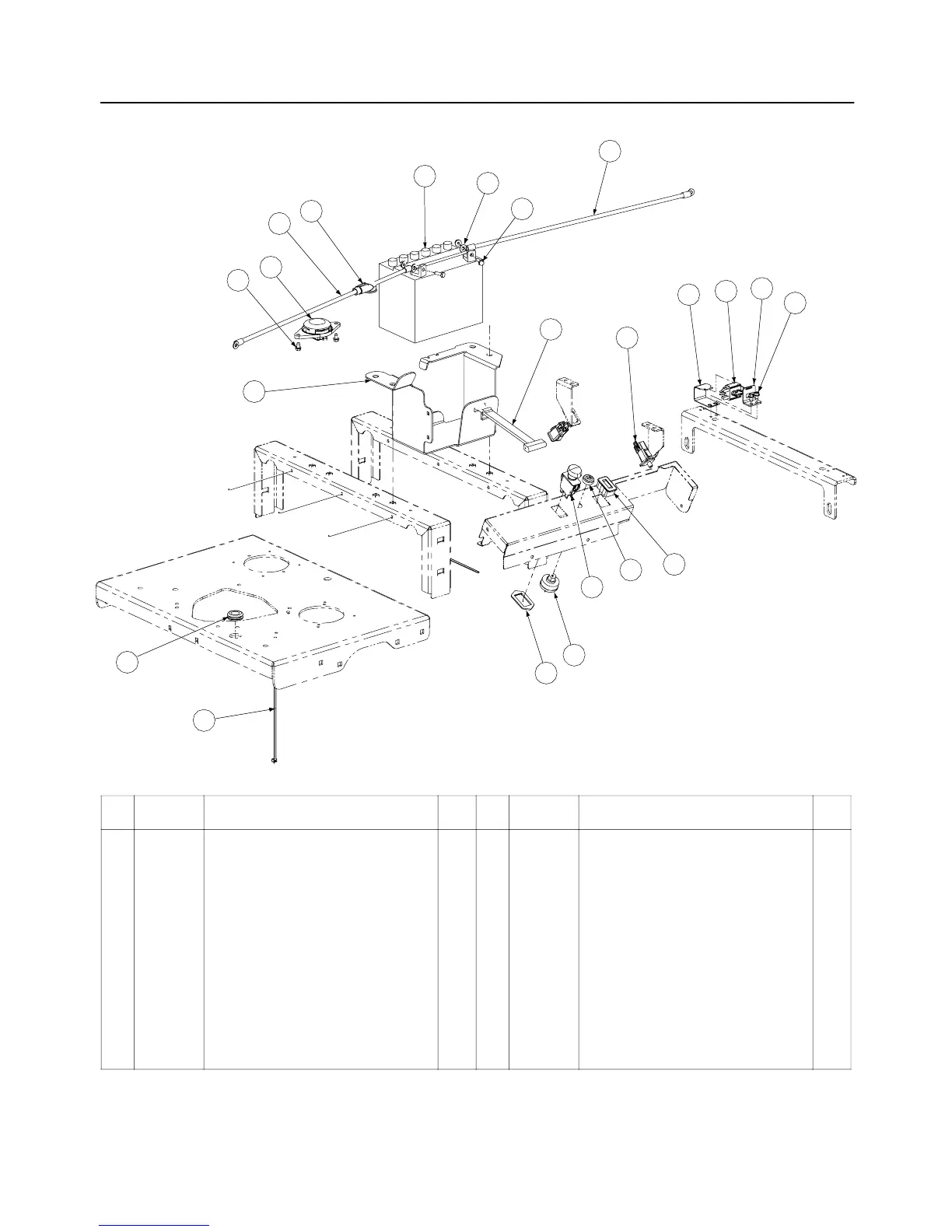

18HP Electrical Engine Assembly - Figure 12 and Parts List
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 00012032 Battery 1 13 01003649 Strap, Battery 1
2 00012289 Cable, Battery, Red, 36" 1 14 01004040 Grommet, .75 ID 1
3 00012470 Tie, Cable, 3/16 x .05 x 7.4" 5 15 01004078 Cable, Battery Black, 24" 1
4 00013131 Screw, Hex, Cap, 1/4-20 x .75 2 16 01005389 Meter, Hour 1
5 00013258 Boot, 1" OD Rubber Battery-PST, Red 1 17 01009905 Bracket, PTO Switch Retainer 1
6 00032097 Nut, W/Cap, 5/8-32 Ignition 1 18 01009995 Mount Bracket, Battery 1
7 01000628 Screw, TT, 1/4-20 x .500, Hex Index
Washer
4 19 02000024 Switch, Safety 2
8 01001811 Hourmeter, Harness (not shown) 1 20 02000165 Switch, Plunger 1
9 01002111 Switch, Electric, PTO 1 21 02000167 Harness Assembly, kohler (not
shown)
1
10 01002766 Nut, 1/4-20, Hex Flange Lock Nut 2 22 02000349 Switch Bracket Mount 1
11 01003277 Switch, Seat N/C 1 23 02000348 Switch Clamp 1
12 01003581 Switch, Ignition, 6 Pin 1
15
10
4
1
11
7
5
2
14
3
16
6
9
12
17
13
19
18
23
20
22
7
GD: 02000573-10/22/04
