12 Section 5— operation

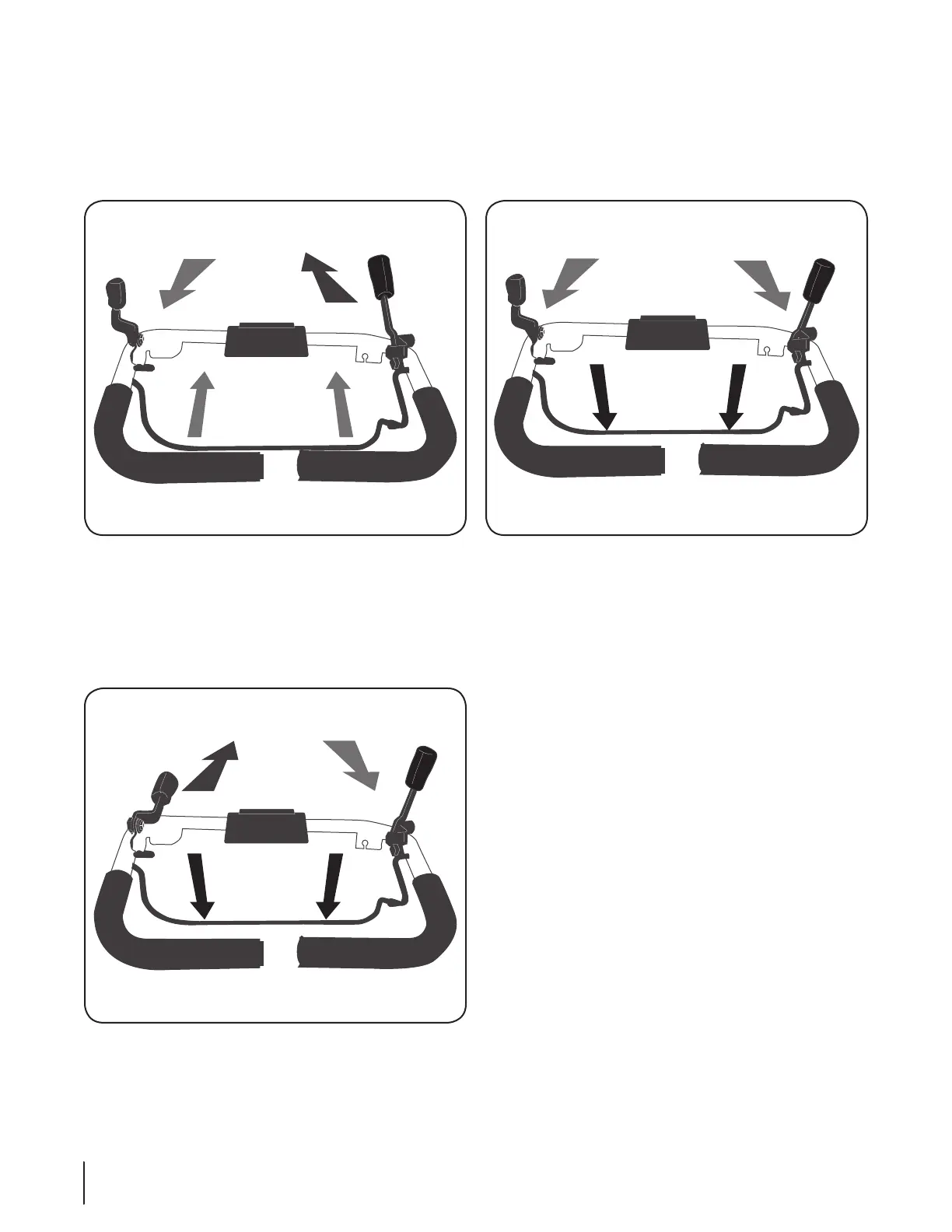

2. For forward motion of the tines and wheels:
a. Engage the neutral handle and the clutch control
bail, with the reverse handle disengaged and the
tines and wheels will move forward. See Figure 5-3.
To stop the forward motion of the tines and wheels,
release the bail.
Figure 5-3
3. For reverse motion of the tines:
a. Pull the reverse handle back with the neutral handle
in the free wheel position and the clutch control
bail disengaged to reverse the tines. See Figure 5-4.
To stop the reverse motion of the tines, release the
reverse handle.
Figure 5-4
2. For reverse motion of the tines and wheels:
a. Engage the neutral handle and the reverse handle,
with the clutch control bail disengaged and the tines
and wheels will move in reverse. See Figure 5-5. To
stop the reverse motion of the tines and wheels,
release the reverse handle.
Figure 5-5
