13
MAINTENANCE SCHEDULE
Perform these required maintenance procedures at the frequency stated in
the table. These procedures should also be a part of any seasonal tune-up.
NOTE: Some maintenance procedures may require special tools or skills.
If you are unsure about these procedures take your unit to any
non-road engine repair establishment, individual or authorized
service dealer.
NOTE: Maintenance, replacement, or repair of the emission control
devices and system may be performed by any non-road engine
repair establishment, individual or authorized service dealer.
NOTE: Please read the California/EPA statement that came with the unit for
a complete listing of terms and coverage for the emissions control
devices, such as the spark arrestor, muffler, carburetor, etc.
FREQUENCY MAINTENANCE REQUIRED REFER TO
Before starting engine Fill fuel tank with fresh fuel* p. 9
Every 10 hours Clean and re-oil air filter p. 15
Every 25 hours Check spark plug condition and gap p. 16
Indexing Teeth
Fig. 28
Fig. 29

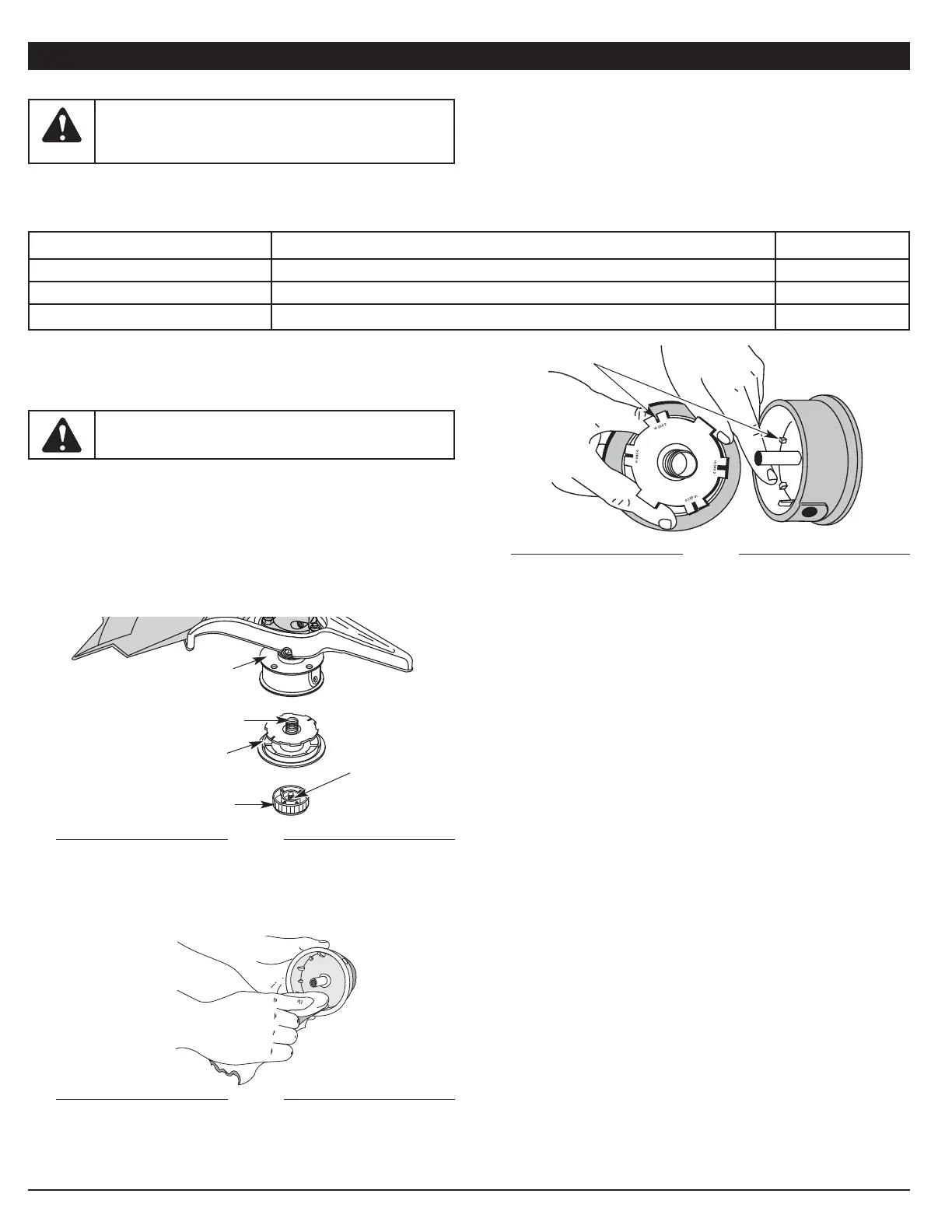

LINE INSTALLATION
This section covers both SplitLine™ and standard single line installation.
Always use original equipment manufacturer 0.105 in. (2.67 mm)
replacement line. Other types of line may make the engine overheat or fail.
There are two methods to replace the trimming line:
• Wind the inner reel with new line
• Install a prewound inner reel
Winding the Existing Inner Reel
1. Hold the outer spool with one hand and unscrew the bump knob
clockwise (Fig. 27). Inspect the bolt inside the bump knob to make sure
it moves freely. Replace the bump knob if damaged.
2. Remove the inner reel from the outer spool (Fig. 27).
3. Remove the spring from the inner reel (Fig. 27).
4. Use a clean cloth to clean the inner reel, spring, shaft and inner surface
of the outer spool (Fig. 28).
5. Check the indexing teeth on the inner reel and outer spool for wear (Fig. 29).
If necessary, remove burrs or replace the reel and spool.
Inner Reel
Spring
Outer Spool
Bump Knob
Bolt
Fig. 27
MAINTENANCE AND REPAIR INSTRUCTIONS
WARNING:
To prevent serious injury, never perform
maintenance or repairs with unit running. Always service and
repair a cool unit. Disconnect the spark plug wire to ensure
that the unit cannot start.
WARNING: Never use metal-reinforced line, wire, chain or
rope. These can break off and become dangerous projectiles.
NOTE: Always use the correct line length when installing trimming line on
the unit. The line may not release properly if the line is too long.
To Next Page
