Cub Cadet Challenger 500 Service Manual

Engine
4‐13

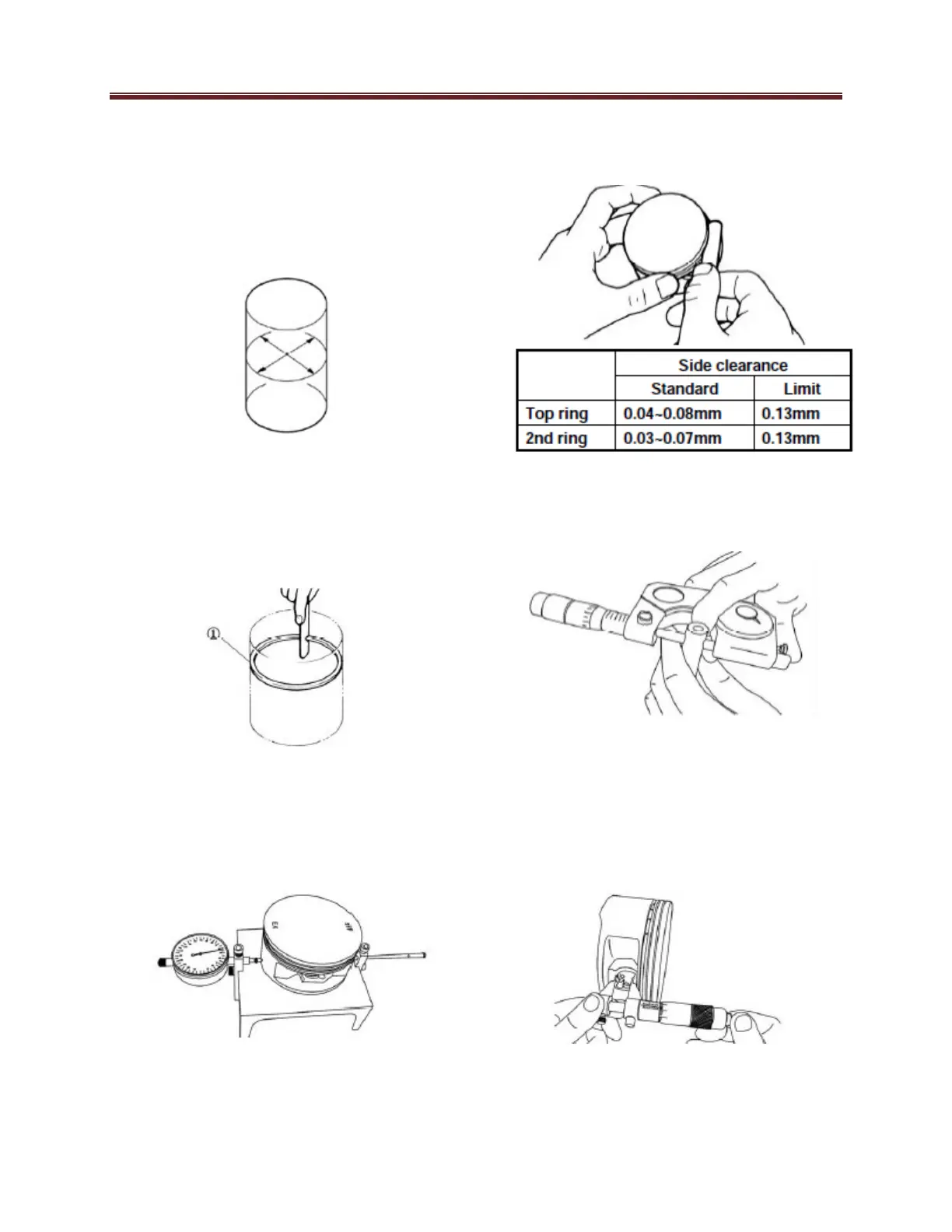

1. Measure the cylinder bore:
 Top
 Middle
 Bottom
Out of roundness: 0.005mm
Taper: 0.005mm
2. Measure the piston Rings end gap:
 Place the ring inside the
cylinder and measure with a
feeler gauge.
Top ring/2nd ring limit: 0.5mm
3. Measure piston outer diameter at
10 mm above the skirt.
Piston to cylinder clearance
limit: 0.15mm
4. Measure piston ring side clearance:
 Use a feeler gauge
5. Measure the piston pin outside
diameter.
Service wear limit: 0.02 mm
6. Measure the piston pin bore inside
diameter.
Service wear limit: 0.02 mm
