Cub Cadet Challenger 500 Service Manual

Engine
4‐22
Secondary Sheave
No. Part Name Qty Remarks

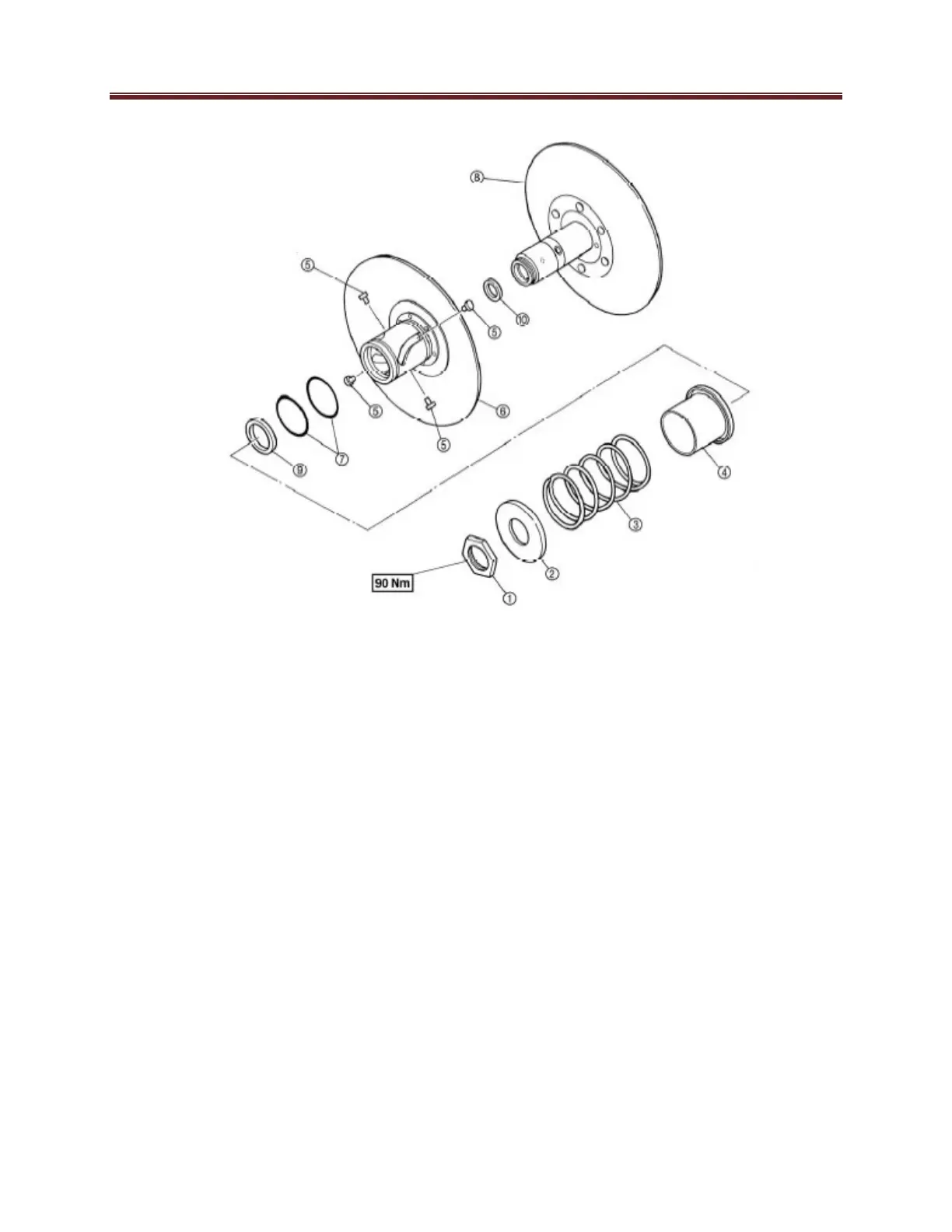

Disassembly of the Secondary Sheave
1 Nut
2 Spring seat
3 Compression spring
4 Spring seat
5 Guide pin
6 Secondary sliding sheave
7 O-ring
8 Secondary fixed sheave
9 Oil seal
10 Oil seal
Remove the parts in the order
listed
1
1
1
1
4
1
2
1
1 For installation, reverse the
1 order listed
