Engine
4‐23

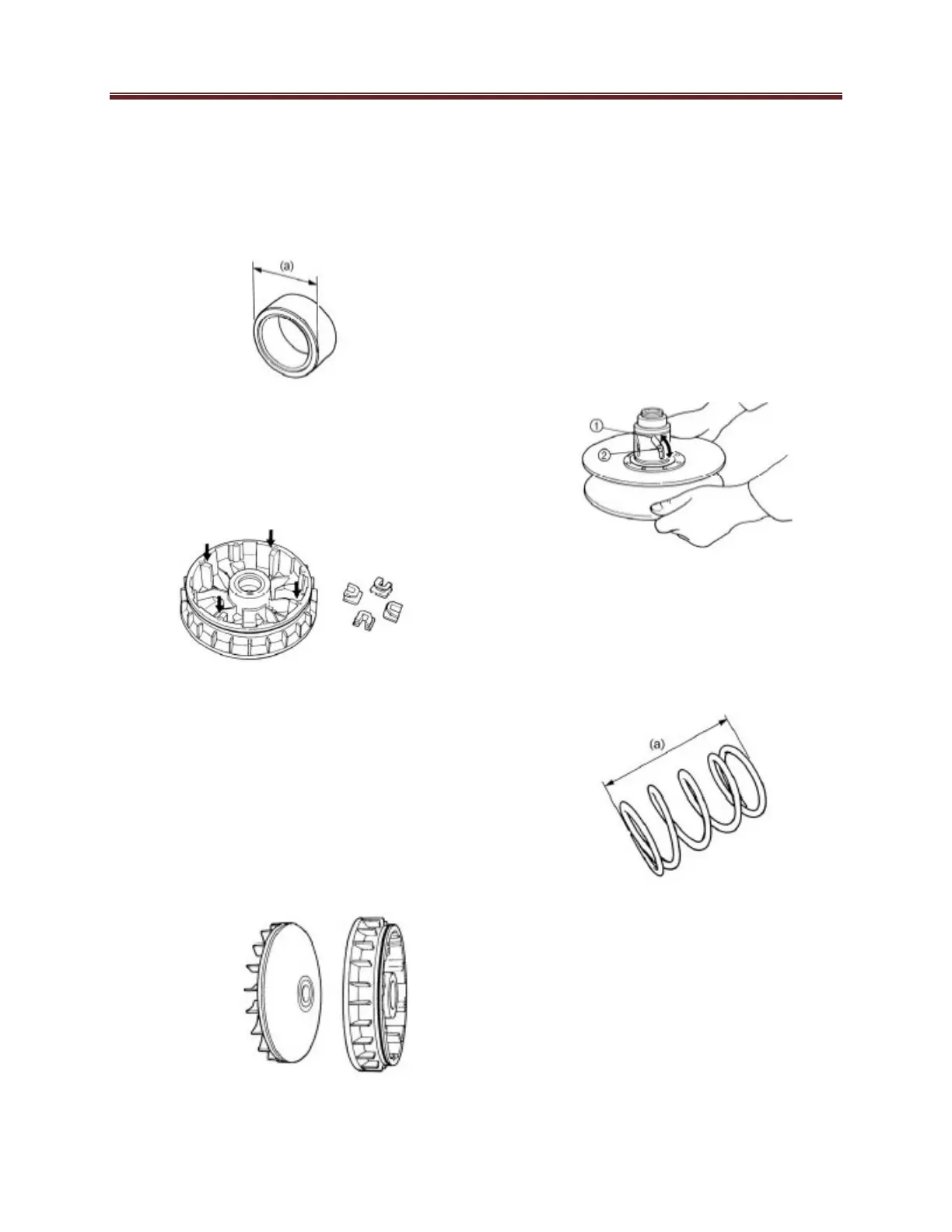

1.
Inspect:
Primary sheave outside
diameter (a).
Check outside diameter w
ear limit:
29.5 mm
Primary pulley slider
Primary sliding sheave
splines
Look for wear cracks or
damage.
Spacer
Primary pulley cam
Look for cracks or damage.
Primary sliding sheave
Primary fixed sheave
Look for cracks or damage.
2.
Inspect the Secondary sheave:
Secondary fixed sheave
Secondary sliding sheave
Look for smooth operation,
scratches or damage,
If replacement is
necessary
replace as a set.
Look at torque cam
grooves
(1) and guide pins (2) for
damage or wear.
3.
Inspect secondary sheave spring:
Measure spring free length (a)
Look for any damage
