Cub Cadet Challenger 500 Service Manual

Engine
4‐26
Clutch
No. Part Name Qty Remarks

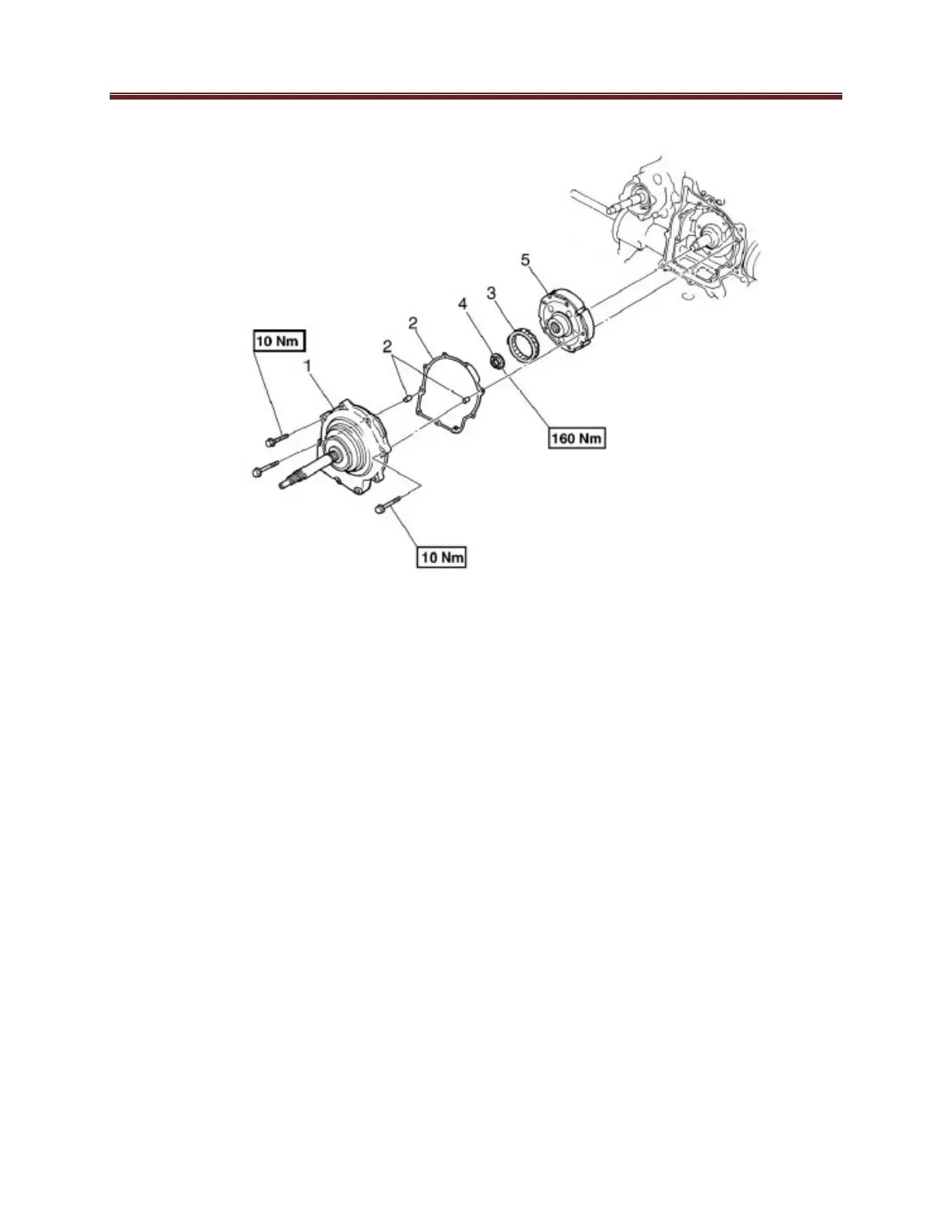

Removing the clutch
Primary and secondary sheaves
1 Clutch housing assembly
2 Gasket / dowel pin
3 One-way clutch bearing
4 Nut
5 Clutch carrier assembly
1
1 / 2
1
1
1
Remove the parts in the order listed
For installation, reverse the order listed
