Engine
4‐27
No. Part Name Qty Remarks

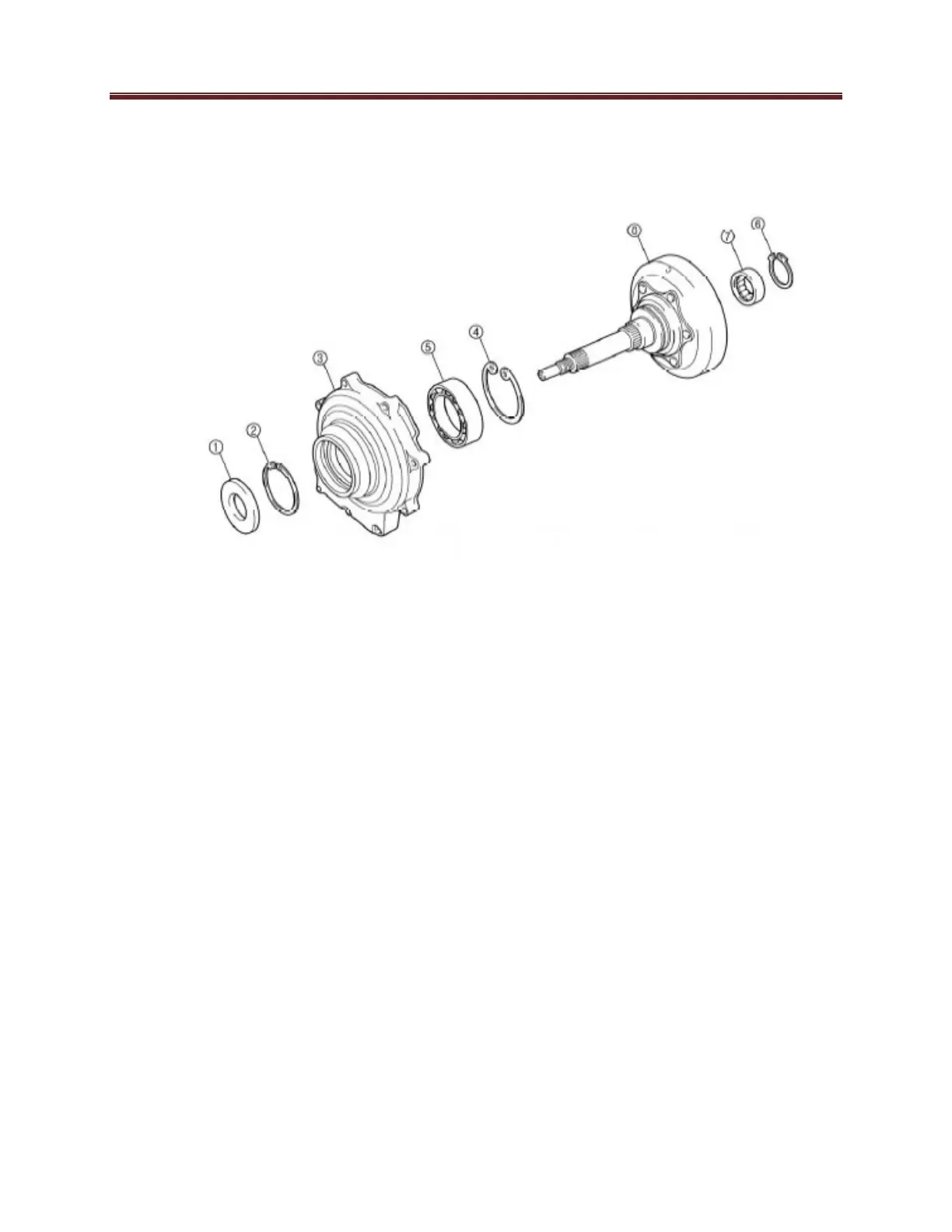

Disassembling the clutch housing
1
Oil seal
2
Circlip
3
Bearing housing
4
Circlip
5
Bearing
6
Circlip
7
Bearing
8
Clutch housing
Remove the parts in the order
listed
1
1
1
1
1
1
1
For installation, reverse the order
1
listed
