Chassis
5‐13

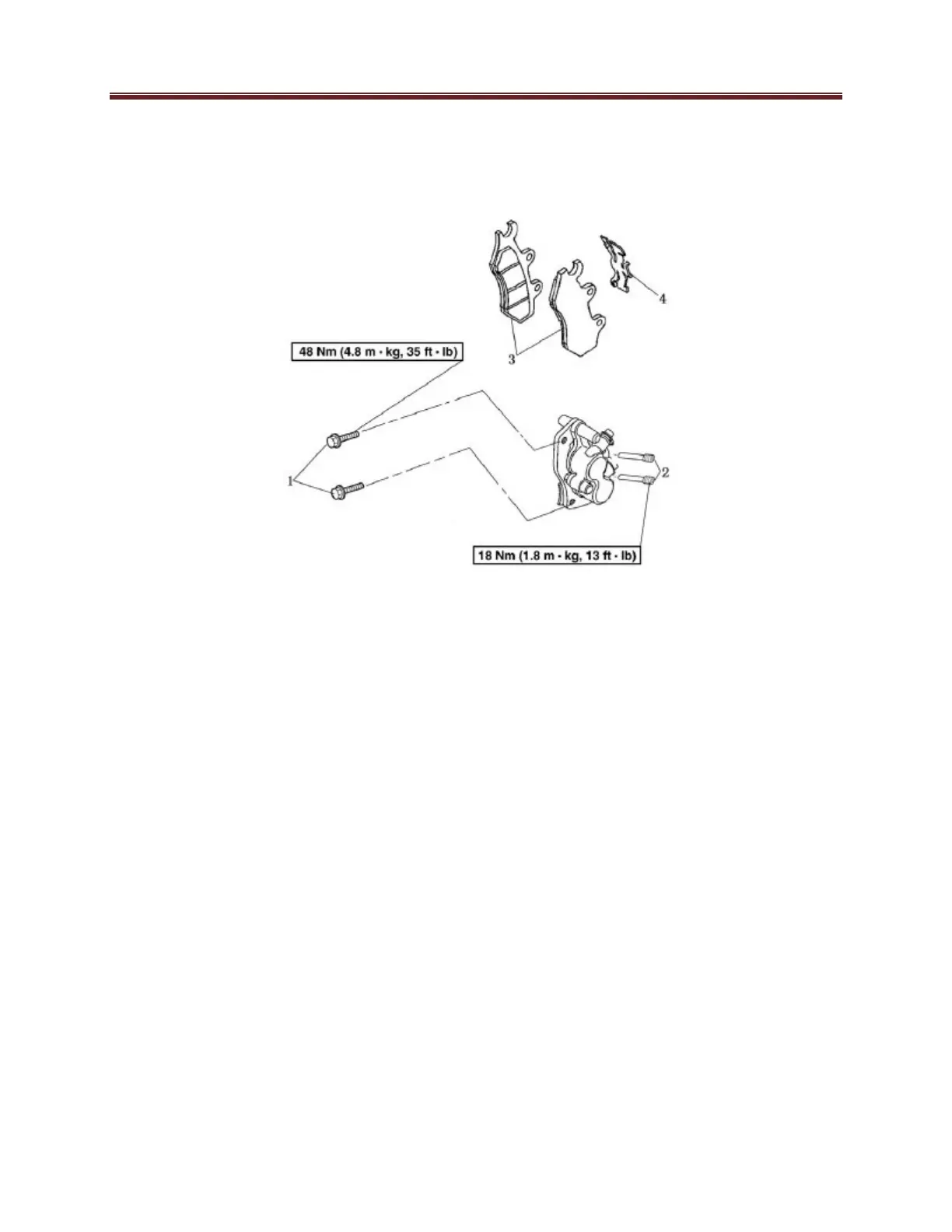

Front Brake Pads
No. Part Name Qty Remarks
Removing the Front Brake
Pads
1
Brake caliper mounting bolt
2
Brake pad holding bolt
3
Brake pad
4
Pad spring
Remove parts in the order listed
2
2
2
For installation, reverse the order
1
listed
