Cub Cadet Challenger 500 Service Manual

Chassis
5‐44

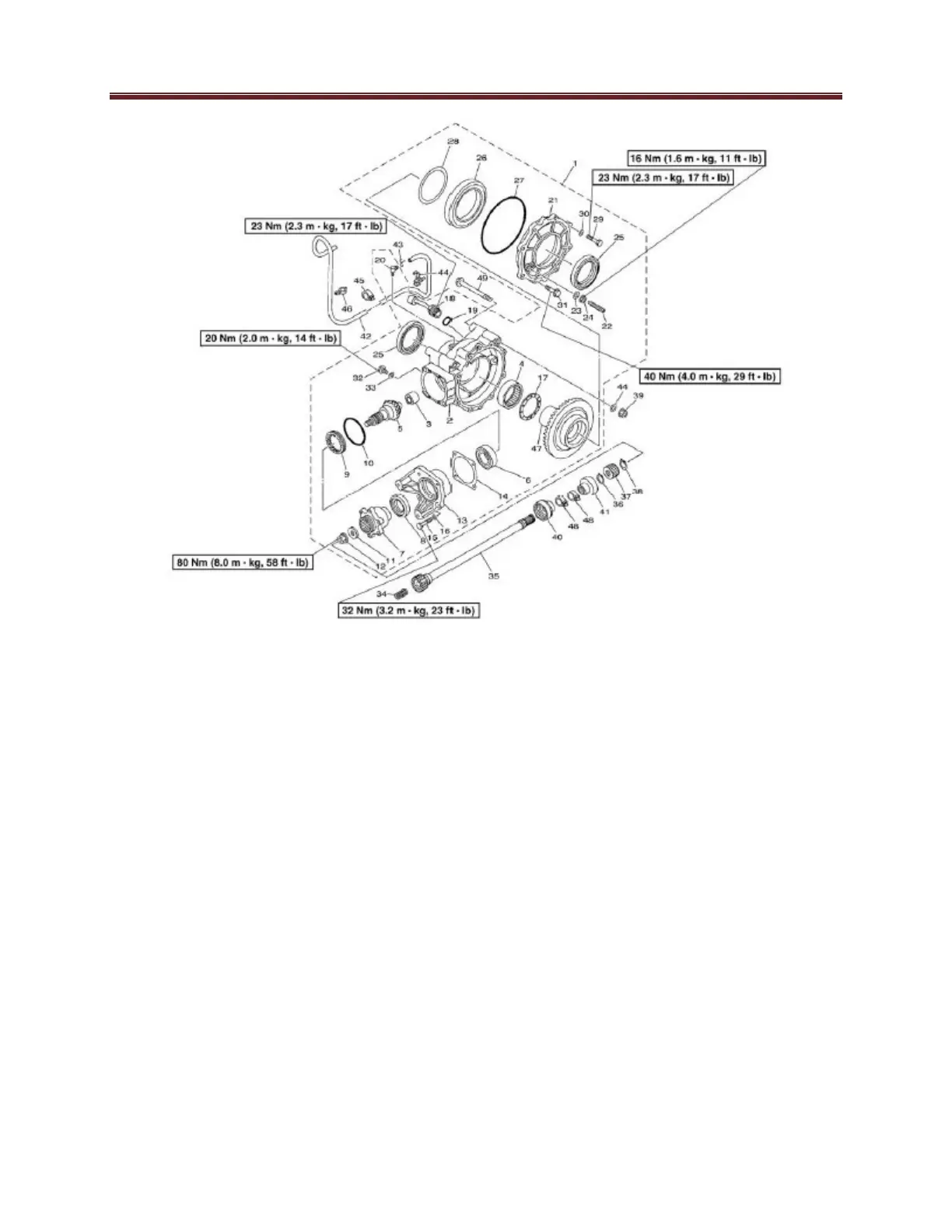

No. Part Name Qty
34 Spring 1
35 Middle drive axle, rear bridge 1
36 Circlip 2
37 Cover 1
38 Circlip 1
39 Self-locking flange nut 1
40 Dust cover 2 1
41 Dust cover 1 1
42 Oil line 1
43 Oil line clip 1
44 Washer 1
45 Clip 1
46 Clip 1
47 Driven gear 1
48 Boot band 2
49 Flange bolt 1
For servicing, refer to the Front Bridge
