Cub Cadet Challenger 500 Service Manual

Chassis
5‐43

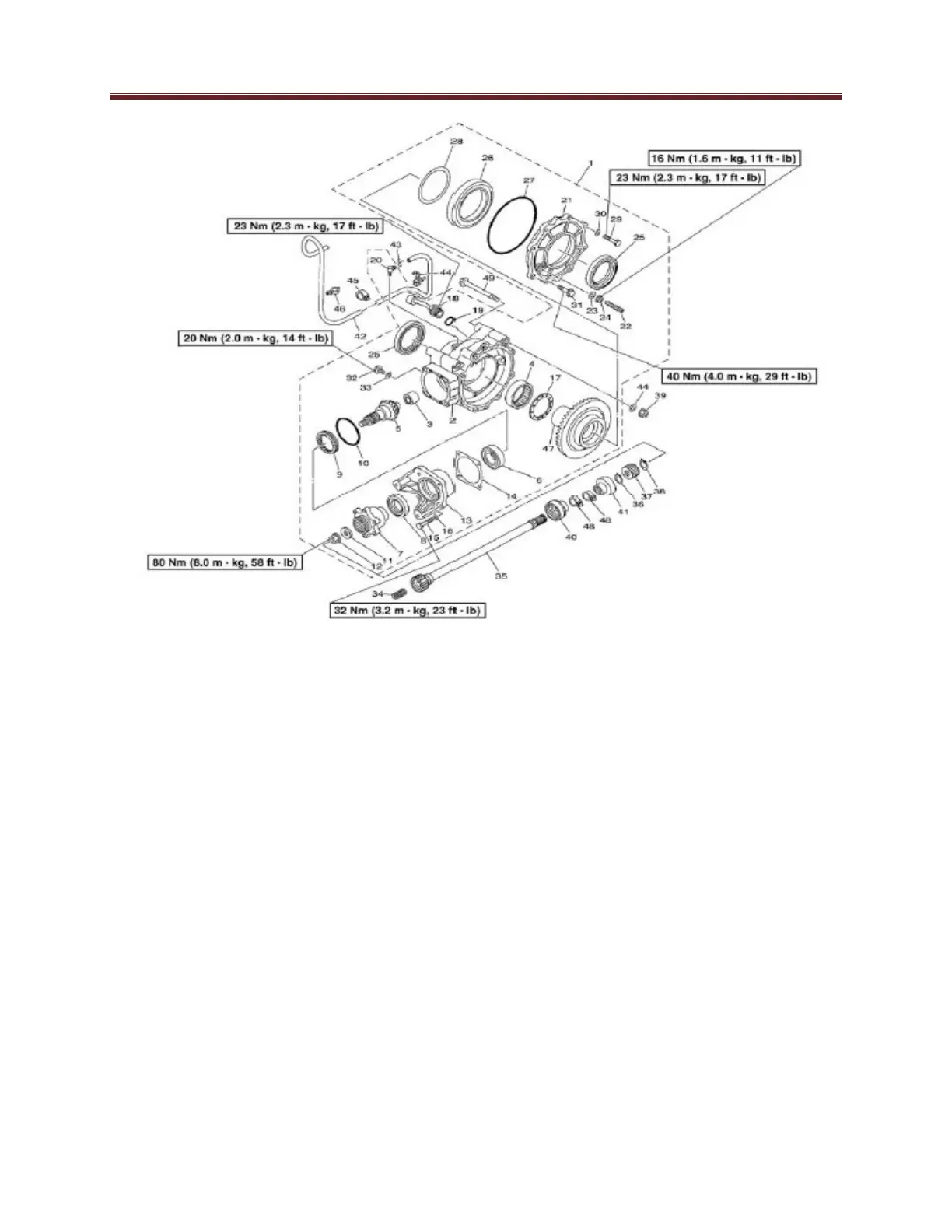

No. Part Name Qty
Gasket 1.9T 1
Gasket 2.0T 1
Gasket 2.1T 1
18 Speed sensor assembly 1
19 O-ring 2.3 X 19.4 1
20 Vent rear speed reducer 1
21 Ring gear bearing housing 1
22 Ring gear stopper 8mm 1
23 Washer 8.5 4
24 Flange nut 8mm 2
25 Oil seal 65 X 90 X 9 2
26 Bearing 16017 1
27 O-ring 3.1 X 150 2
28 Washer 0.1T 1
Washer 0.2T 1
29 Bolt 8mm X 25mm 1
30 Washer 8.5 1
31 Bolt 10mm X 1.25 X 25 1
32 Bolt 8mm X 20mm 4
33 Washer 8.5 2
