Cub Cadet Challenger 500 Service Manual

Chassis
5‐42

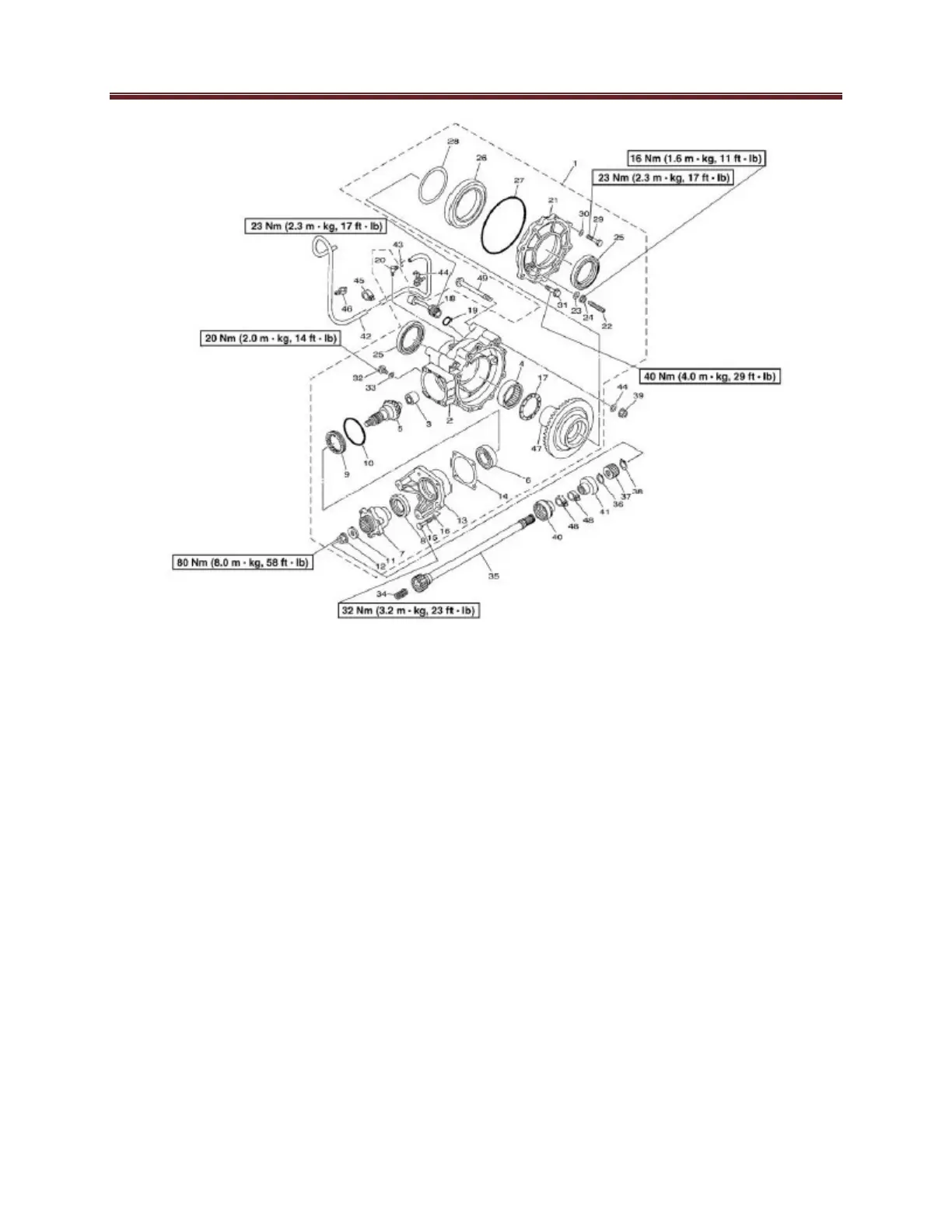

No. Part Name Qty
1 Speed reducer assembly 1
2 Final gear case 1
3 Bearing assembly 1
4 Bearing Hk556720 1
5 Final drive pinion gear 1
6 Bearing 6305 1
7 Drive shaft coupling 1
8 Oil seal 61 X 35 X 9 1
9 Bearing 65BM6720 1
10 O-ring 3.1 X 63.8 1
11 Flat gasket 12 X 4 X 30 1
12 Flange nut 12mm X 1.25 1
13 Pinion gear bearing housing 1
14 Gasket 0.1 T 1
Gasket 0.2T 1
Gasket 0.5T 1
15 Bolt 8mm X 35 4
16 Washer 8.5 3
17 Gasket 1.7T 1
Gasket 1.8T 1
