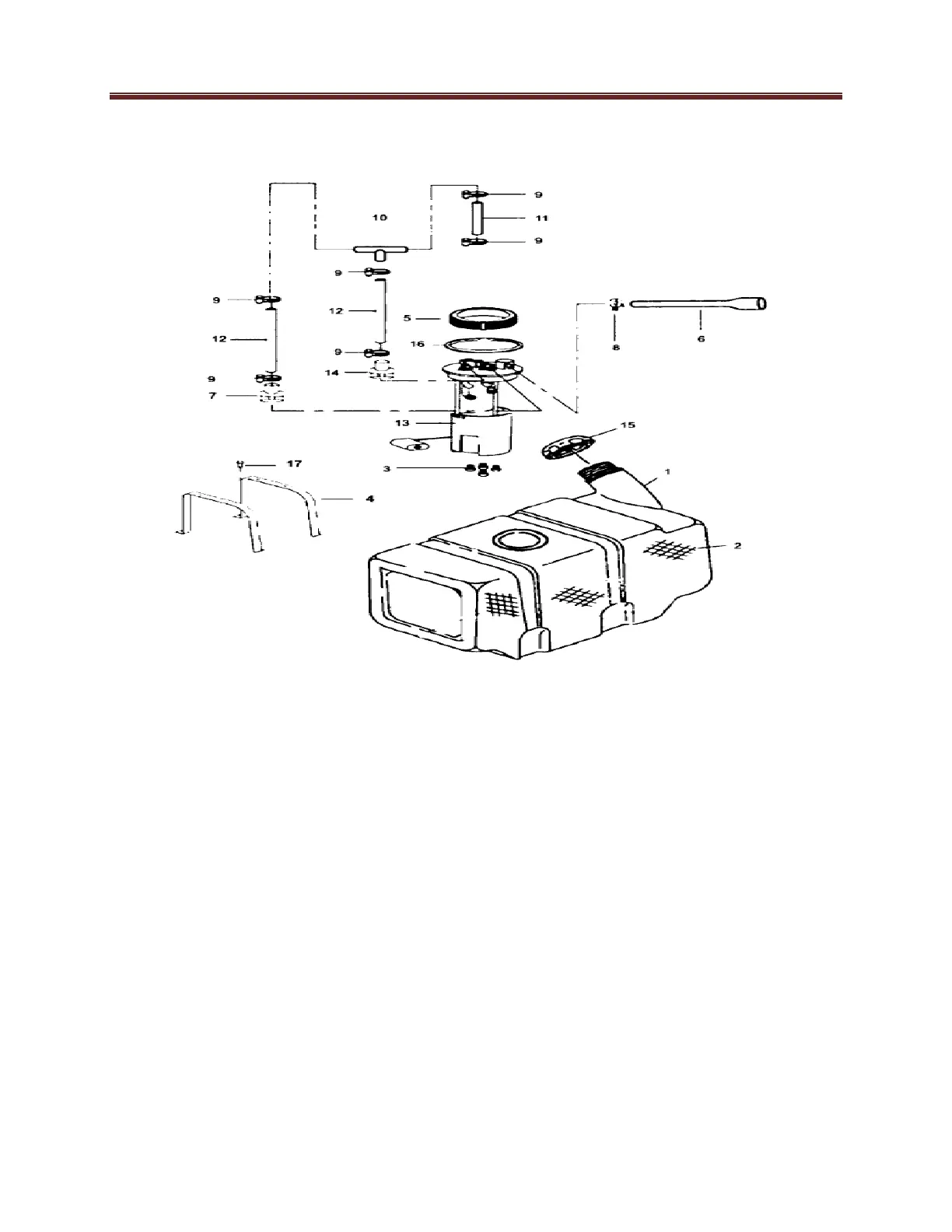

Cub Cadet Challenger 500 - Page 197

Chassis
5-62
Fuel System
No.
Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Part Name
Fuel tank
Insulation paper
Shock absorber cushion
Binder plate
Fuel pump cover
Rubber tube
Fuel outlet plug
Clip 10
Clip
Three-way pipe
High pressure pipe
Fuel pipe
Fuel pump assembly
fuel inlet plug
Fuel cap
1
n/a
4
2
1
1
1
1
6
1
1
2
1
1
1
1
2
Fuel cap seal
Hex flange bolt M8x20
