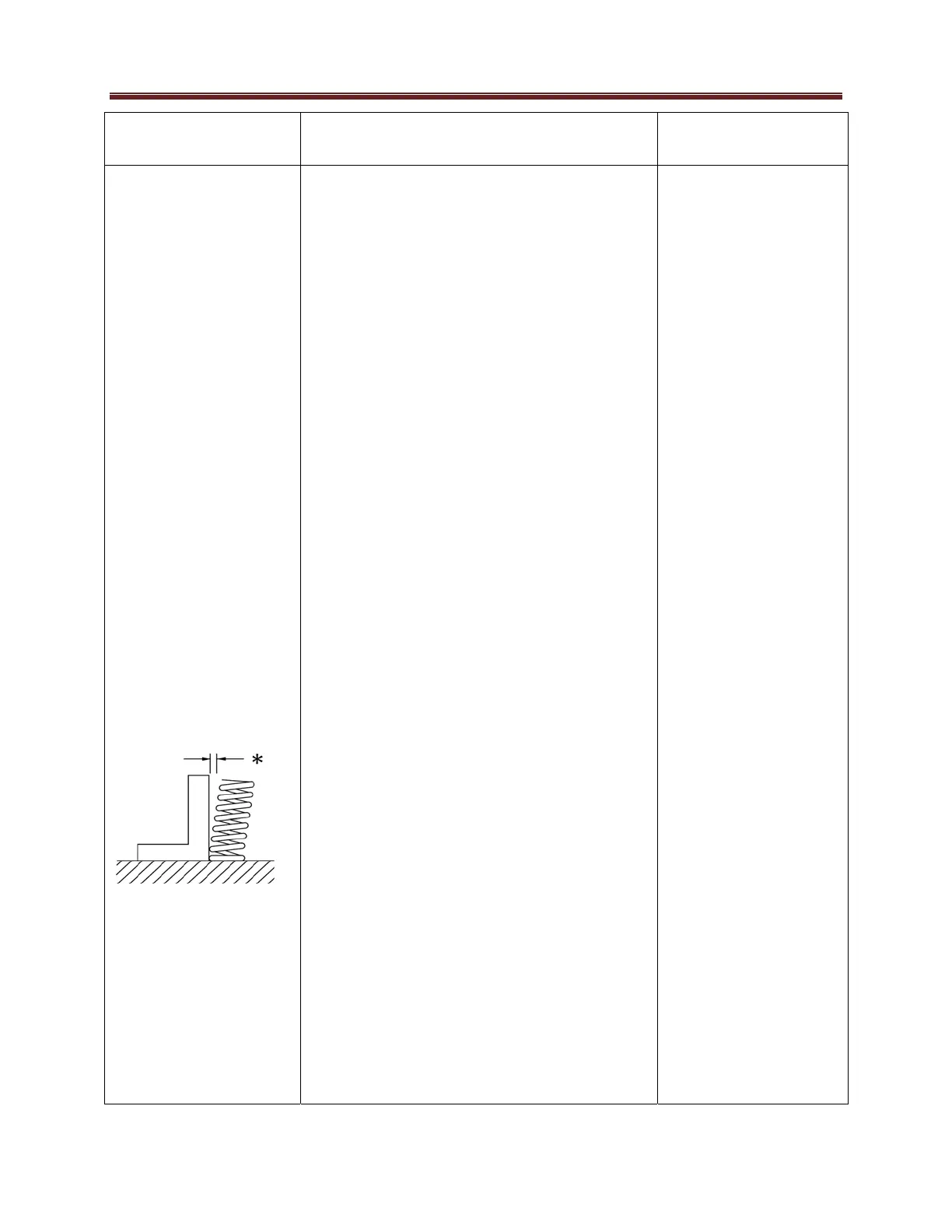

Cub Cadet Challenger 500 Service Manual

2-6
700 UV Engine Specifications
Item Metric Standard
Service Wear
Limit
Valve Spring:
Inner Spring
Free Length IN
EX
Set Length
(Valve Closed)
IN
EX
Compressed
pressure (Installed)
IN
EX
Tilt limit *
IN
EX
Direction of winding
32.63 mm (1.28 in) 31.0 mm (1.22in)
36.46 mm (1.44 in) 34.6 mm (1.36 in)
27.5 mm (1.08 in)
31.0 mm (1.22 in)
100.0 - 115.7 N (22.49 - 26.01 lb)
120.6 - 138.3 N (27.12 - 31.09 lb)
2.5° 1.4 mm
(0.055in)
2.5°/1.6 mm
(0.063in)
Both Intake and Exhaust Clockwise
