Specifications
2-23

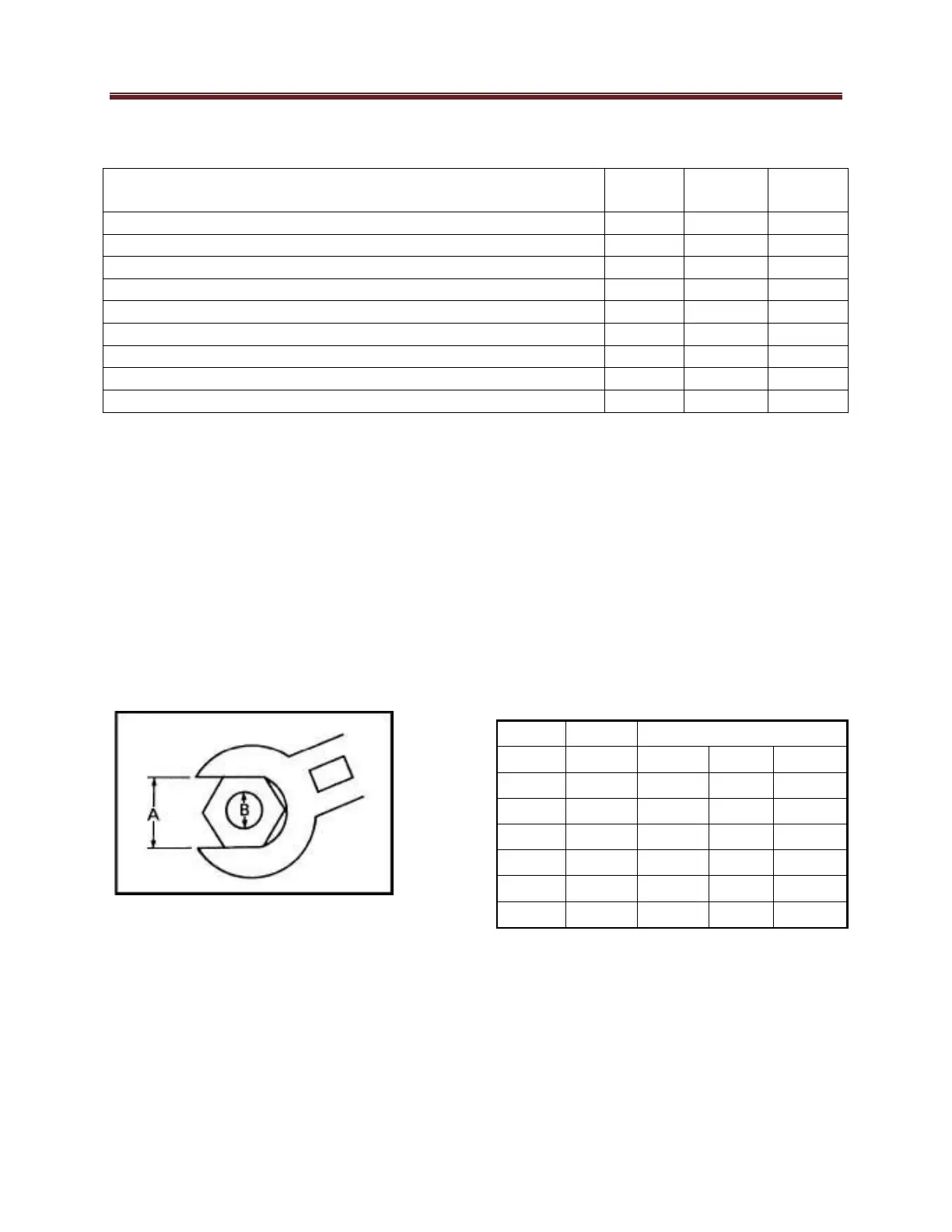

CHASSIS TIGHTENING TORQUES
Part to be tightened
Thread
Size
Torque
Nm
Torque
Ft Lbs
Front bumper and frame 10 mm 32 23
Upper instrument panel and frame 6 mm
7
5.1
Ceiling side frame (enclosure) and frame 10 mm 64 46
Support frame 10 mm 64 46
Top frame 10 mm 64 46
Side Frame 10 mm 64 46
Seat Support 8 mm 16 11
Footrest plate 6 mm
7
5.1
General Tightening Torque Specs
This chart specifies tightening torques for standard fasteners with a standard ISO thread
pitch. Tightening torque specifications for special components or assemblies are
provided for each chapter of this manual. To avoid warpage, tighten multi-fastener
assemblies in a crisscross pattern and progressive stages until the specified tightening
torque is reached. Unless otherwise specified, tightening torque specifications require
clean, dry threads. Components should be at room temperature.
A: Distance between flats
B: Outside thread diameter
A B General
tightening
torques
(nut) (bolt) Nm m
·
kg ft
·
lb
10
mm 6
mm 6 0.6 4.3
12
mm 8
mm 15 1.5 11
14
mm 10
mm 30 3.0 22
17
mm 12
mm 55 5.5 40
19
mm 14
mm 85 8.5 61
22
mm 16
mm 130 13.0 94
