9.65. Install the two 10 tooth miter gears (flanking the
16 tooth miter gear), spherical thrust washers,
and cross shaft. See Figure 9.65.
9.66. Secure the cross shaft by driving in a new roll
pin with a flat-nosed drift. See Figure 9.65.
9.67. Install the second 16 tooth miter gear, and the
right side axle bearing in the differential.
NOTE: Confirm that the 16 tooth miter gears are
both centered in the differential housing.
9.68. Stick the appropriate shim washers to the right
side differential bearing with grease, as was
done previously for the back-lash measurement.
9.69. Install the differential in the right side axle hous-
ing.
9.70. Install the right side axle, as was done previ-
ously for the back lash measurement.
NOTE: Confirm that the roll pin in the cross shaft
engages the bore in the end of the axle shaft.
9.71. Carefully lift the right side axle assembly back
onto the work bench, as was done previously for
the back lash measurement.
9.72. Install the necessary shim washers or spacer, as
determined earlier by the end play measure-
ment. See Figure 9.72.
9.73. Position the left side axle bearing and axle in the
differential. The shim washers should be
between the differential bearing and the bearing
that supports the inboard end of the axle. See
Figure 9.73.

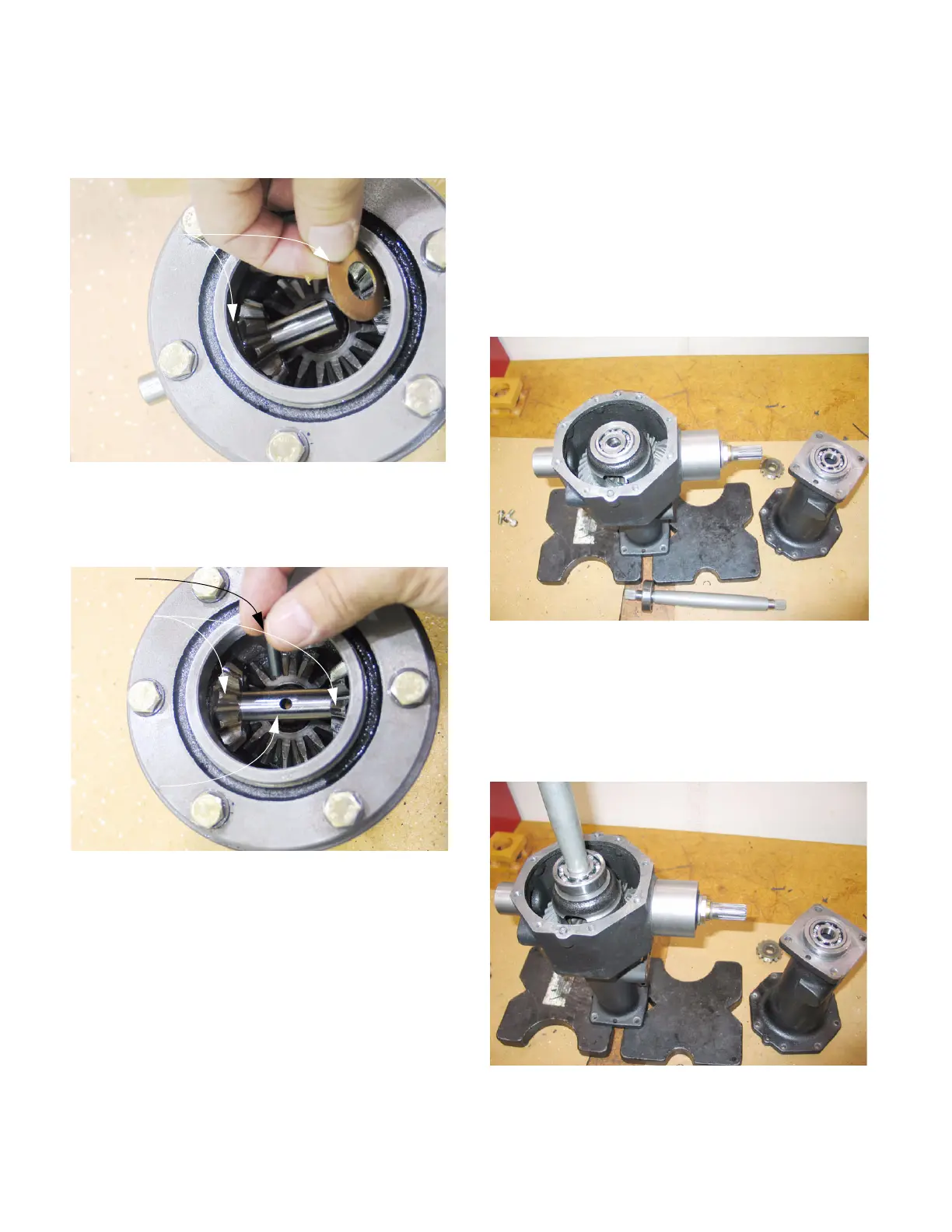

Figure 9.65
Spherical
thrust washer
Figure 9.66
Roll pin
10 tooth
miter gears
Cross shaft
Figure 9.72
Install differential and shims.
Figure 9.73
Install left side axle and bearing.
