Series 5000 deck adapter kit 190-830-100
66
1.11. Install the lift crank rod from the back of the trac-
tor. Teh rolled eyelets at each end of the rod
should face down. The off-set section at the
center of the rod whould face out, away from the
frame, and the longer end of the rod should be
toward the back of the tractor. See Figure 1.11.
1.12. Attach the lift rod crank to the rear lift arm with a
clevis pin. the clevis pin should be oriented so
that the hairpin clip that secures it is on the
inside of the arm. See Figure 1.12.
2. LIFT SHAFT AND ARMS:
2.1. Install one Double-D bushing in the right side
frame, with the flange outside the frame.
See Figure 2.1.
2.2. Slip the right side lift arm (from the kit) onto the
lift shaft so that the hollow post rests in the notch
on the arm that is welded to the lift shaft.
See Figure 2.2.

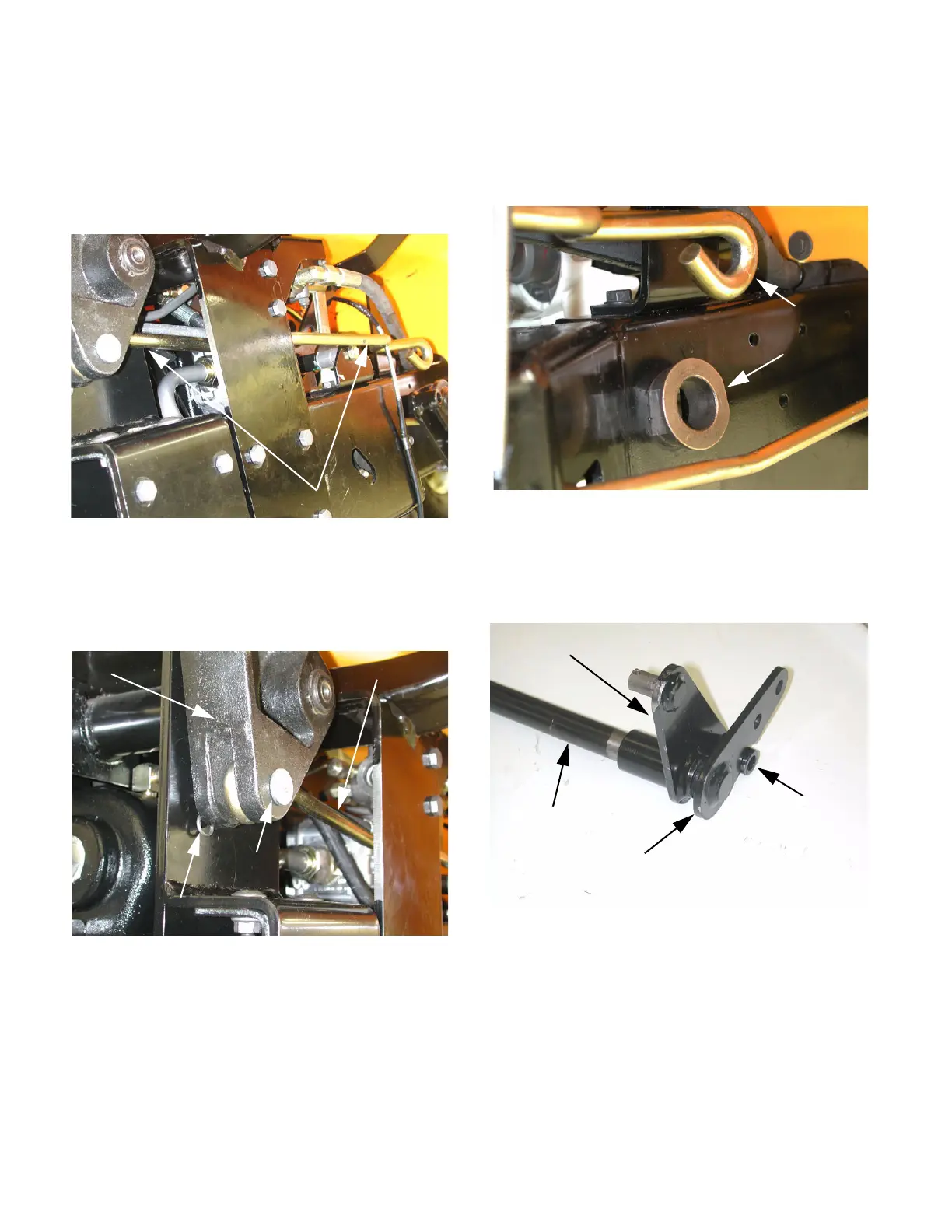

Figure 1.11
Lift crank rod
Figure 1.12
Lift arm
Lift crank rod
Clevis pin
Hairpin clip
Figure 2.1
Bushing
Lift crank rod
Figure 2.2
Right side lift arm
Hollow post
Lift shaft
Arm, welded to lift shaft
