Series 5000 deck adapter kit 190-830-100
67
2.3. Install the lift shaft in the frame, through the Dou-
ble-D bushing. Hook the front eyelet on the lift
crank rod over the solid post on the right side lift
arm. See Figure 2.3.
2.4. Install the second Double-D bushingover the lift
shaft and into the left side of the frame.
2.5. Install the left side lift arm on the lift shaft so that
it is parallel with the right side lift arm. The holes
in the arm must align with the holes in the lift
shaft. The arm should be stepped-out away
from the frame. See Figure 2.5.
2.6. Secure the left side arm to the lift shaft with the
two tension pins.
2.7. Secure the lift crank rod to the right side lift arm
using a hairpin clip.

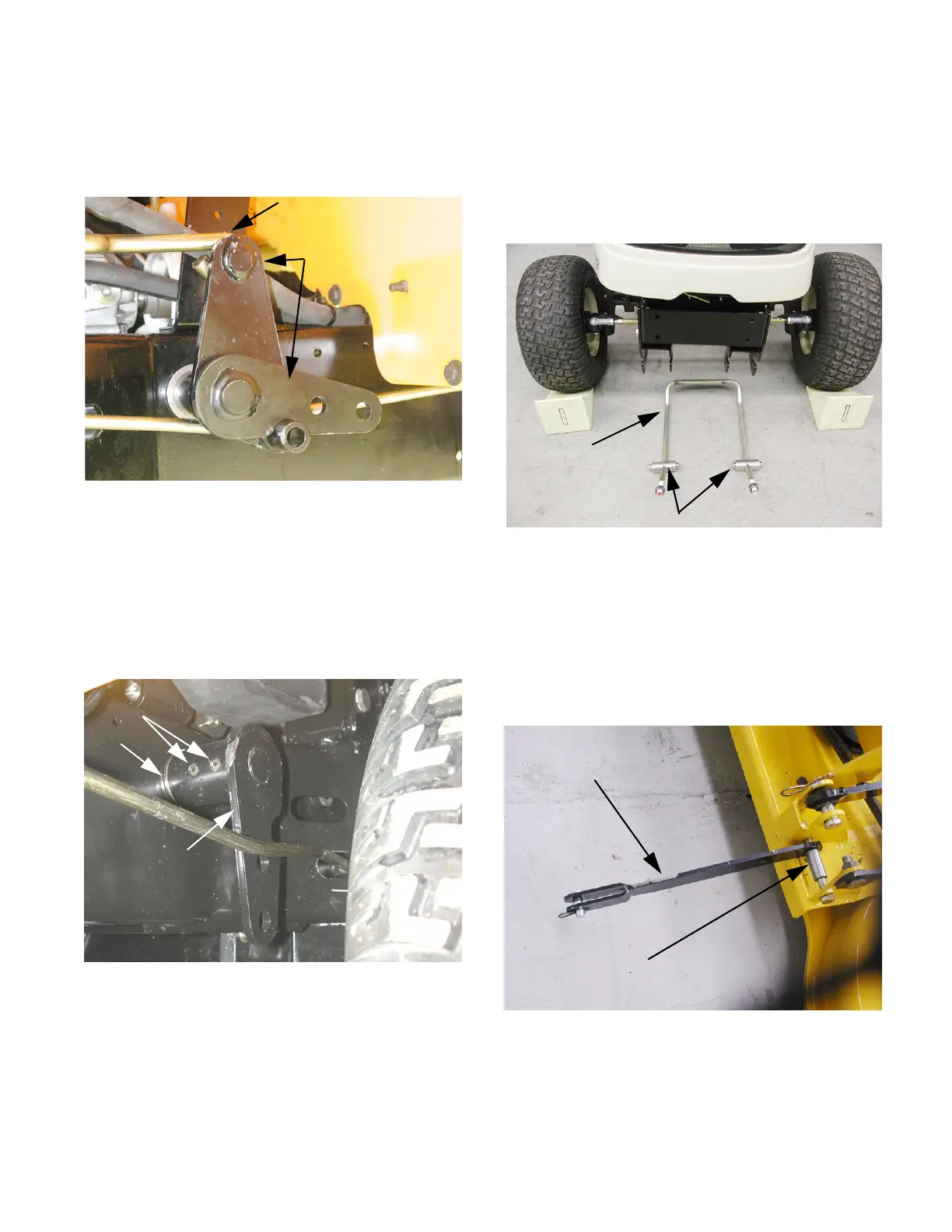

Figure 2.3
Lift crank rod
Lift shaft and right
side lift arm in place
Figure 2.5
Tension pins
Bushing
Left side lift arm,
in position
3. HANGER TO DECK CONNECTIONS
3.1. Assemble the hanger rod mounting pins to the
front hanger rod, then install the nylon locking
nuts onto the hanger rod ends. Tighten the nuts
until they are about 1” from the ends of the rod.
See Figure 3.1.
3.2. Slide the shouldered ends of the hanger rod
mounting pins into the slots in the front hanger
brackets, so that the bottom of the rod is roughly
parallel to the ground.
3.3. Install the fixed lift link between the inner and
outer brackets welded near the back of the deck,
on the right side. See Figure 3.3.
NOTE: The spacer tube is outboard of the lift
link, on the bolt. Tightne the bolt to a torque of
70-80 ft.-lbs. using a pair of 3/4” wrenches.
Figure 3.1
Front hanger rod
Hanger rod mounting pins
Figure 3.3
Fixed link
Spacer tube
