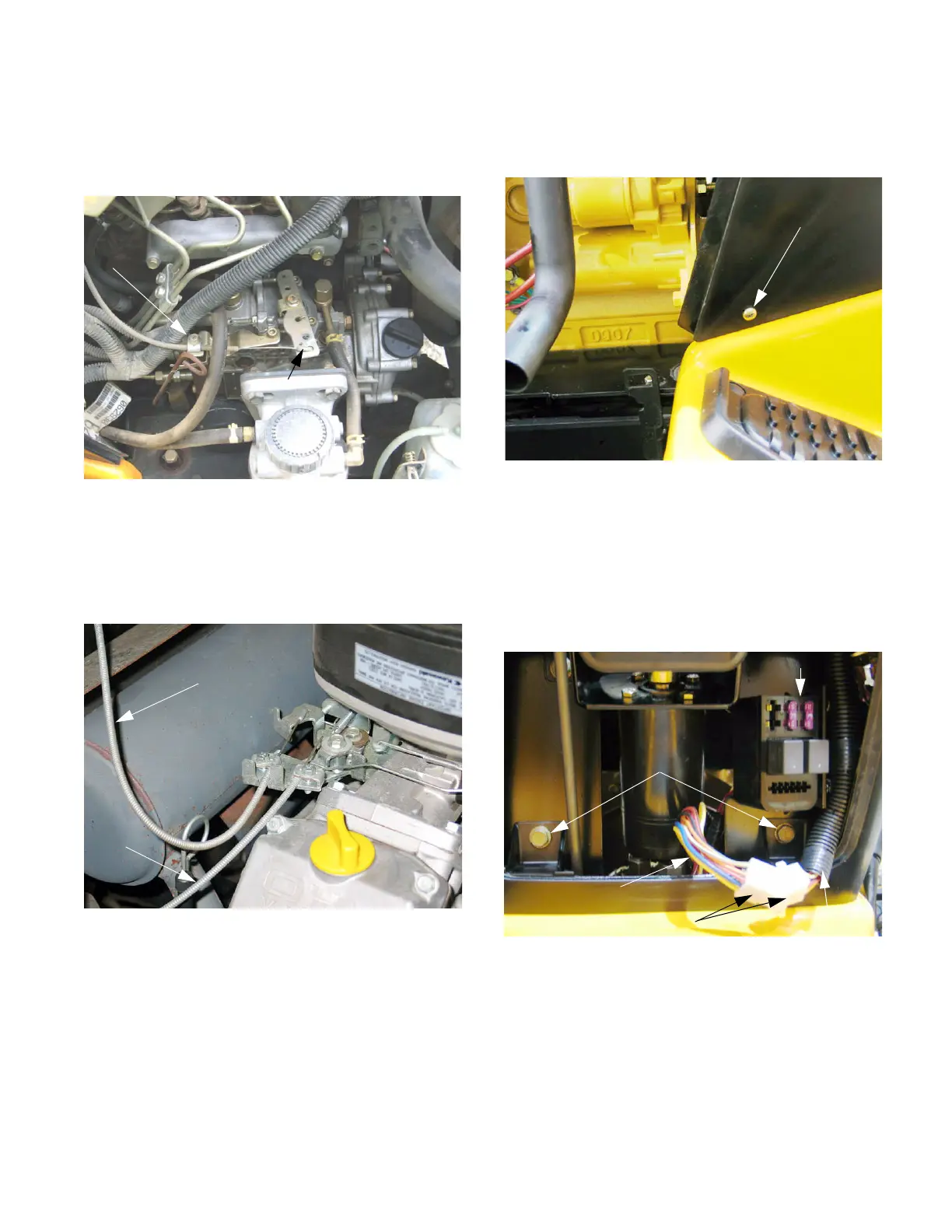

Domestic Compact Dash and Steering Pump
61
1.14. On Briggs & Stratton / Daihatsu engines, a Z-fit-
ting connects the cable to the pump. An 8mm
wrench will fit the screw on the cable clamp.
See Figure 1.14.
1.15. On gasoline powered tractors, the choke cable
must also be disconnected. Use an 8mm
wrench to loosen the cable clamps, then unhook
the z-fittings. See Figure 1.15.
Figure 1.14
Cable
clamp
Z-fitting
Figure 1.15
Choke
cable
Throttle cable
1.16. Remove the two phillips head screws that
secure the lower rear corners of the dash panel.
See Figure 1.16.
1.17. Disconnect the dash wiring harness from the
main wiring harness by unplugging the connec-
tor that is near the fuse / relay center.
1.18. Use a 1/2” wrench to remove the two screws
holding the base of the dash panel to the pedes-
tal. See Figure 1.18.
1.19. Close the hood.
Figure 1.16
Screw
Figure 1.18
Screws
Main harness
Connector
harness
Dash
Fuse and relay
center
