SECTION I. CONTROLS AND INDICATORS
Your Cub Cadet Tractor has been safety engineered.
This section gives a brief description of the function
and location of the various controls and indicators.
Thoroughly acquaint yourself with all the controls and
indicators before attempting to start or operate the
tractor.
A. Indicator Panel/Hour Meter
B. Hour Meter/Battery Display
C. Power Take-Off (PTO) Control Switch
D. Key Switch Module
E. Throttle Control Lever
F. Choke Control
G. Brake Pedal Lock
H. Cruise Control Lever
I. Brake Pedal
J. Forward Control Pedal
K. Reverse Control Pedal
L. Lift Handle
M. Lift Height Indicator
N. Seat Adjustment Lever
O. 12V Power Outlet
P. Transmission Release Lever
Q. Fuses (Not Shown)
R. Safety Interlock Switches (Not Shown)

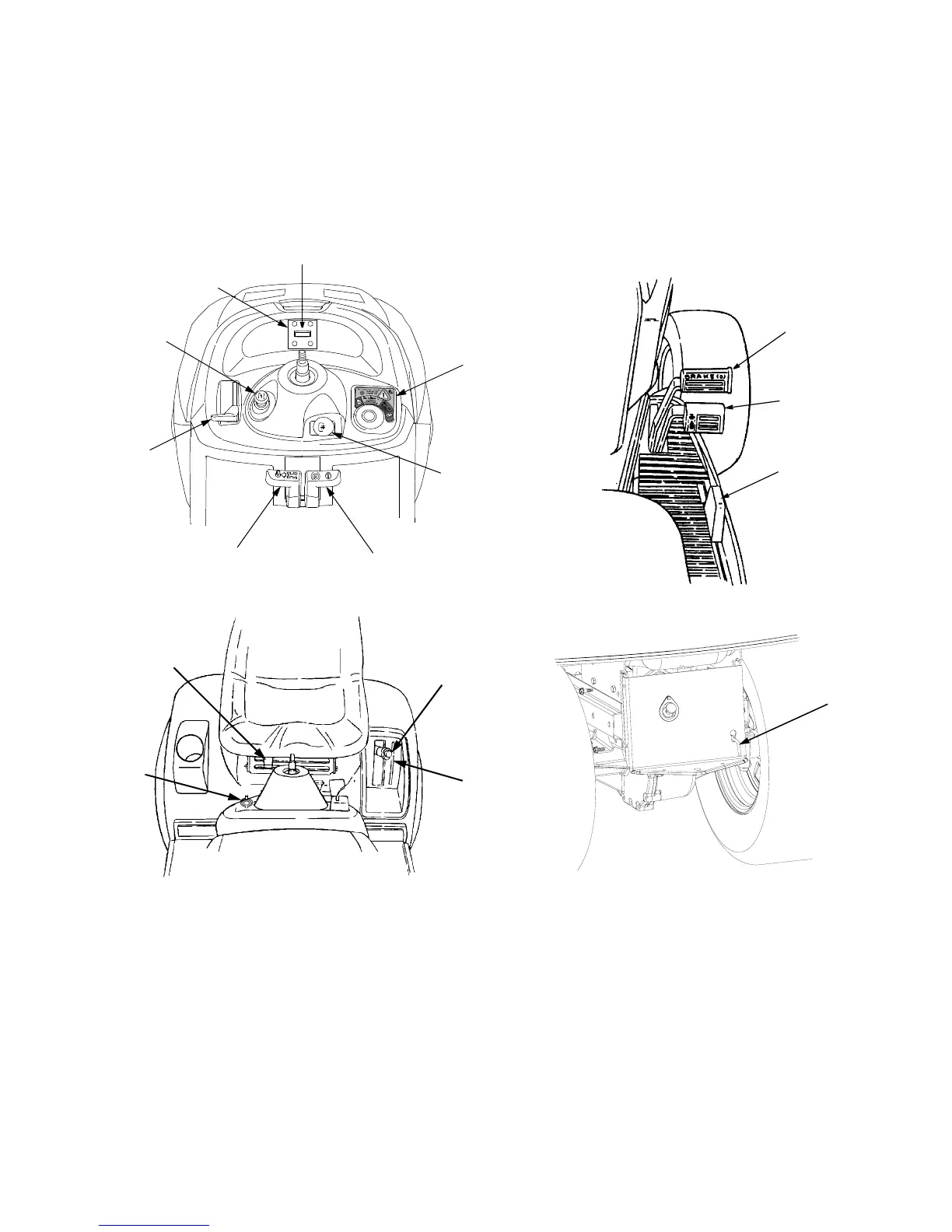

Figure 3
A
B
C
F
E
H
G
D
I
J
K
L
N
M
P
O
