NOTE:
Any referencein this
manualto the R GHT
or LEFTside of the
tractor isobservedfrom
operator's position.
KNOW THE CONTROLS
Readthisowner'smanualandsafetyrules beforeoperatingyourlawnmower,Comparethe figurebelowwithyour
lawntractorto learnaboutthe locationand purposeof variouscontrolsandadjustments,Savethismanualfor future
reference.It is veryimportanttofollowtheinstructionsandoperatethe controlsproperly.

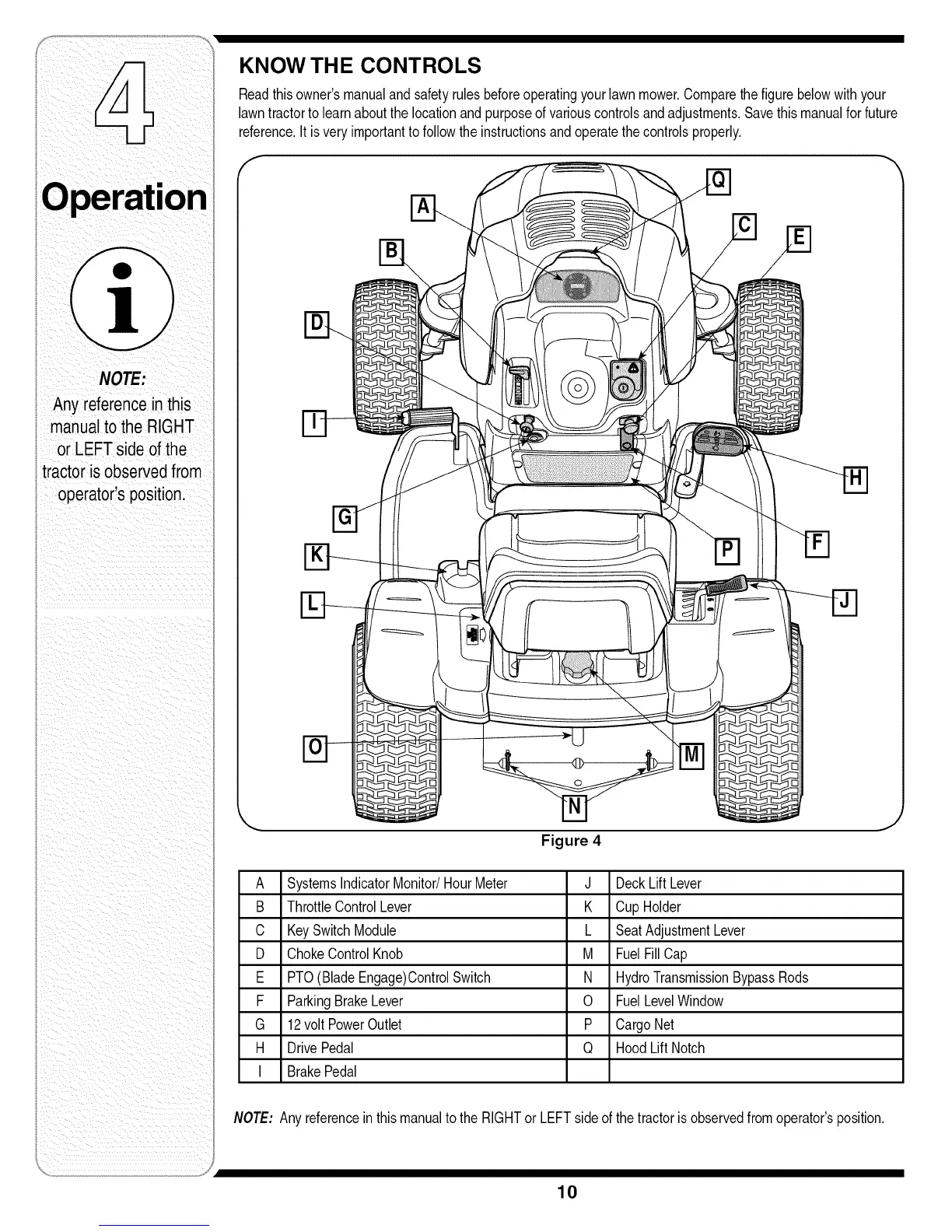

Figure 4
A SystemsIndicatorMonitor/HourMeter J DeckLiftLever
B ThrottleControlLever K Cup Holder
C KeySwitchModule L SeatAdjustmentLever
D ChokeControlKnob M FuelFillCap
E PTO(BladeEngage)ControlSwitch N HydroTransmissionBypassRods
F ParkingBrakeLever 0 FuelLevelWindow
G 12volt PowerOutlet P CargoNet
H DrivePedal Q HoodLiftNotch
I BrakePedal
NOTE:Anyreferenceinthis manualtotheRIGHTor LEFTsideof the tractoris observedfromoperator'sposition,
