Remove the belt guards by removing the self-tapping
screws that fasten them to the deck. See Fig. 7-6.
Remove the deck belt from around the two spindle pulleys 4.
and the two deck idler pulleys.
NOTE: The idler pulleys may have to be loosened, but not
removed, in order to remove the belt from around them.
Route the new belt as shown in Fig. 7-7.5.
Retighten idler pulleys, if loosened earlier.6.
Remount the belt guards removed earlier7.

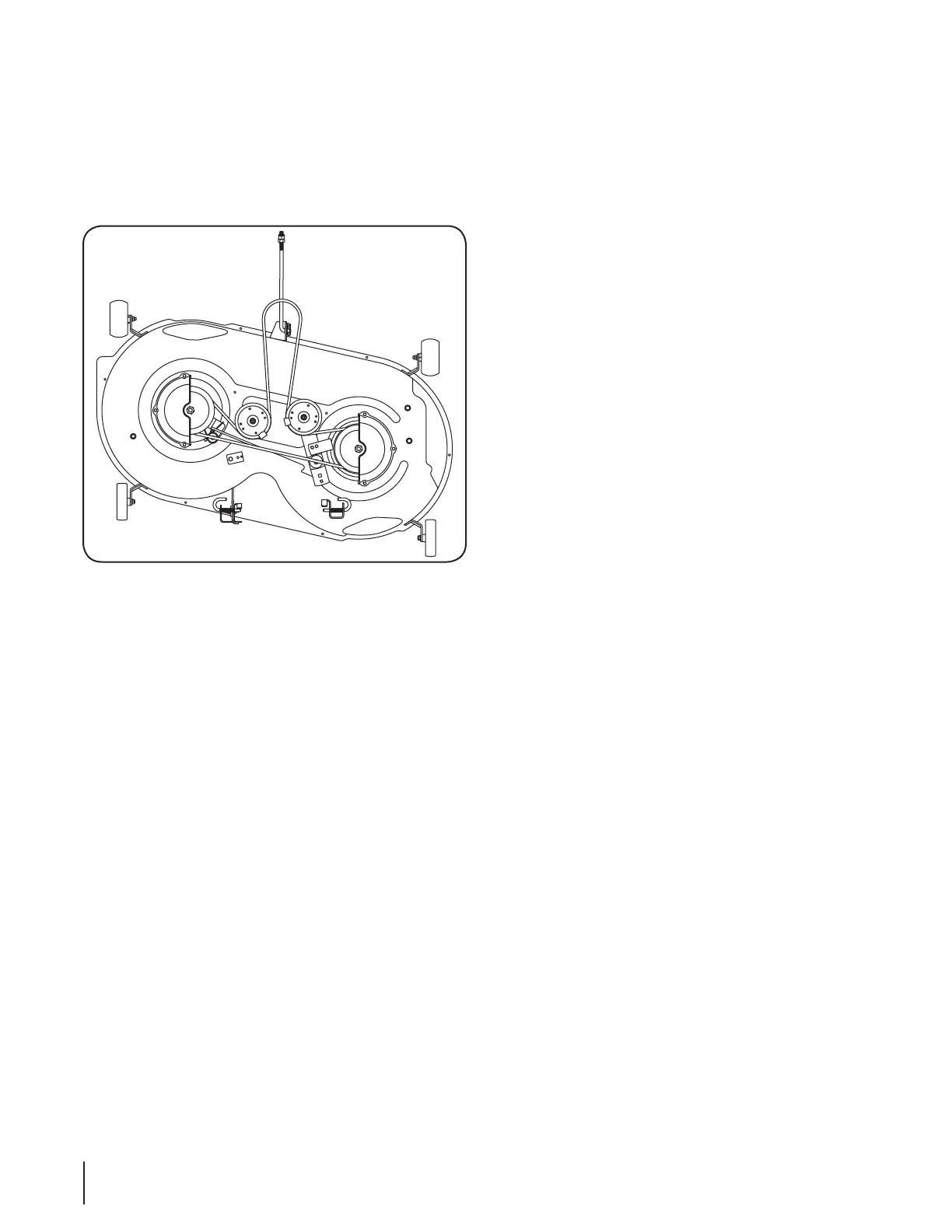

Figure 7-7
28 se c t i O n 7— se r v i c e
