Cub Cadet LTX1040 User Manual

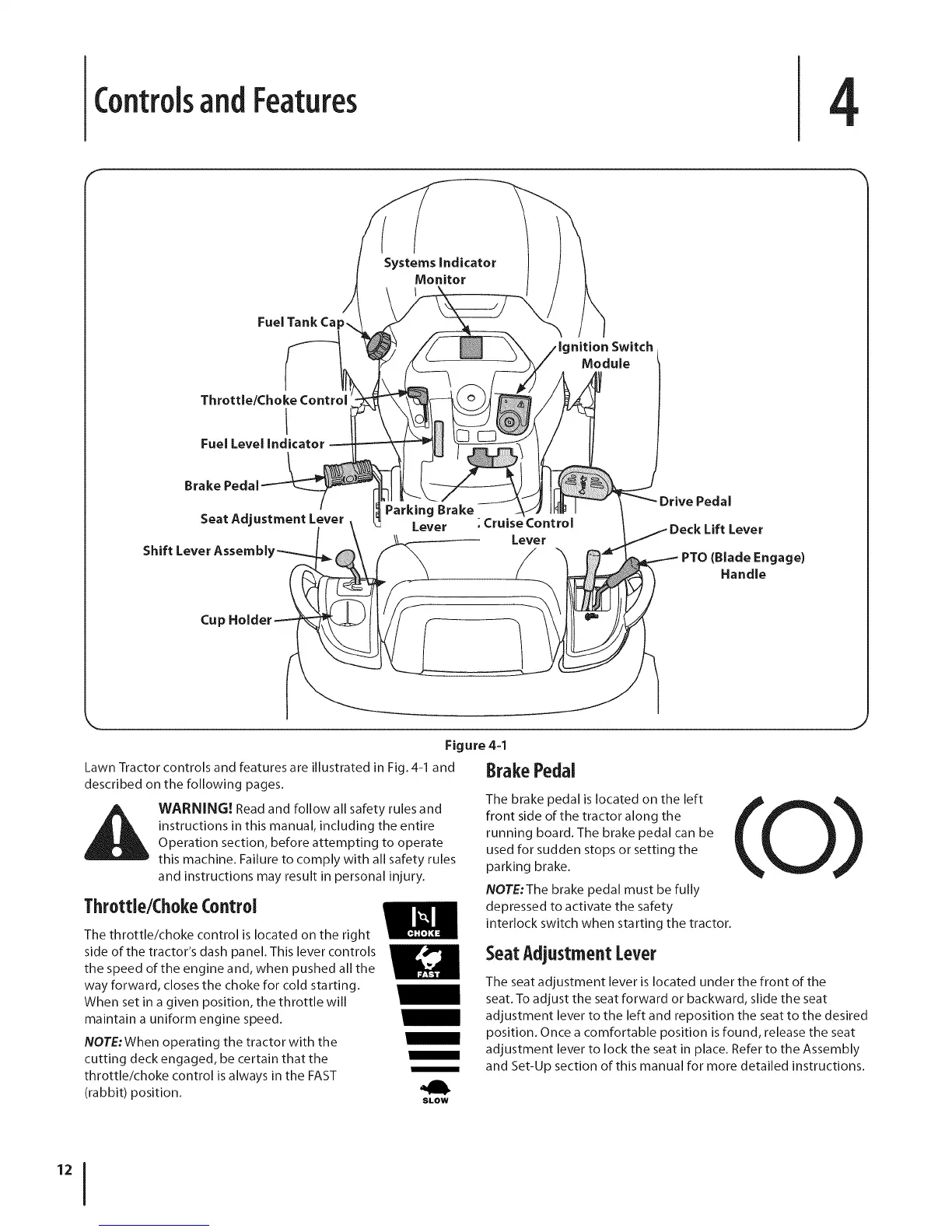

Controlsand Features
4
f
Fuel Tank Ca
Throttle/Choke Control
Fuel Level indicator
Pedal
PTO (Blade Engage)
Handle
J
Figure 44
Lawn Tractor controls and features are illustrated in Fig. 4-1and
described on the following pages.
WARNING! Read and follow all safety rules and
instructions in this manual, including the entire
Operation section, before attempting to operate
this machine. Failure to comply with all safety rules
and instructions may result in personal injury.
Throttle/ChokeControl
The throttle/choke control is located on the right
side of the tractor's dash panel. This lever controls
the speed of the engine and, when pushed all the
way forward, closes the choke for cold starting.
When set in a given position, the throttle will
maintain a uniform engine speed.
NOTE:When operating the tractor with the
cutting deck engaged, be certain that the
throttle/choke control is always in the FAST
(rabbit) position.
m
SLOW
BrakePedal
The brake pedal is located on the left
front side of the tractor along the
running board. The brake pedal can be
used for sudden stops or setting the
parking brake.
NOTE:The brake pedal must be fully
depressed to activate the safety
interlock switch when starting the tractor.
SeatAdjustmentLever
The seat adjustment lever is located under the front of the
seat. To adjust the seat forward or backward, slide the seat
adjustment lever to the left and reposition the seat to the desired
position. Once a comfortable position is found, release the seat
adjustment lever to lock the seat in place. Refer to the Assembly
and Set-Up section of this manual for more detailed instructions.

Cub Cadet LTX1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Engagement	Manual
Deck Size	42 inches
Blades	2
Turning Radius	18 inches
Deck Material	Steel
Cutting Height	1.5 - 4 in
Front Tires	15 x 6 in
Rear Tires	20 x 8 in
Warranty	3-year limited
