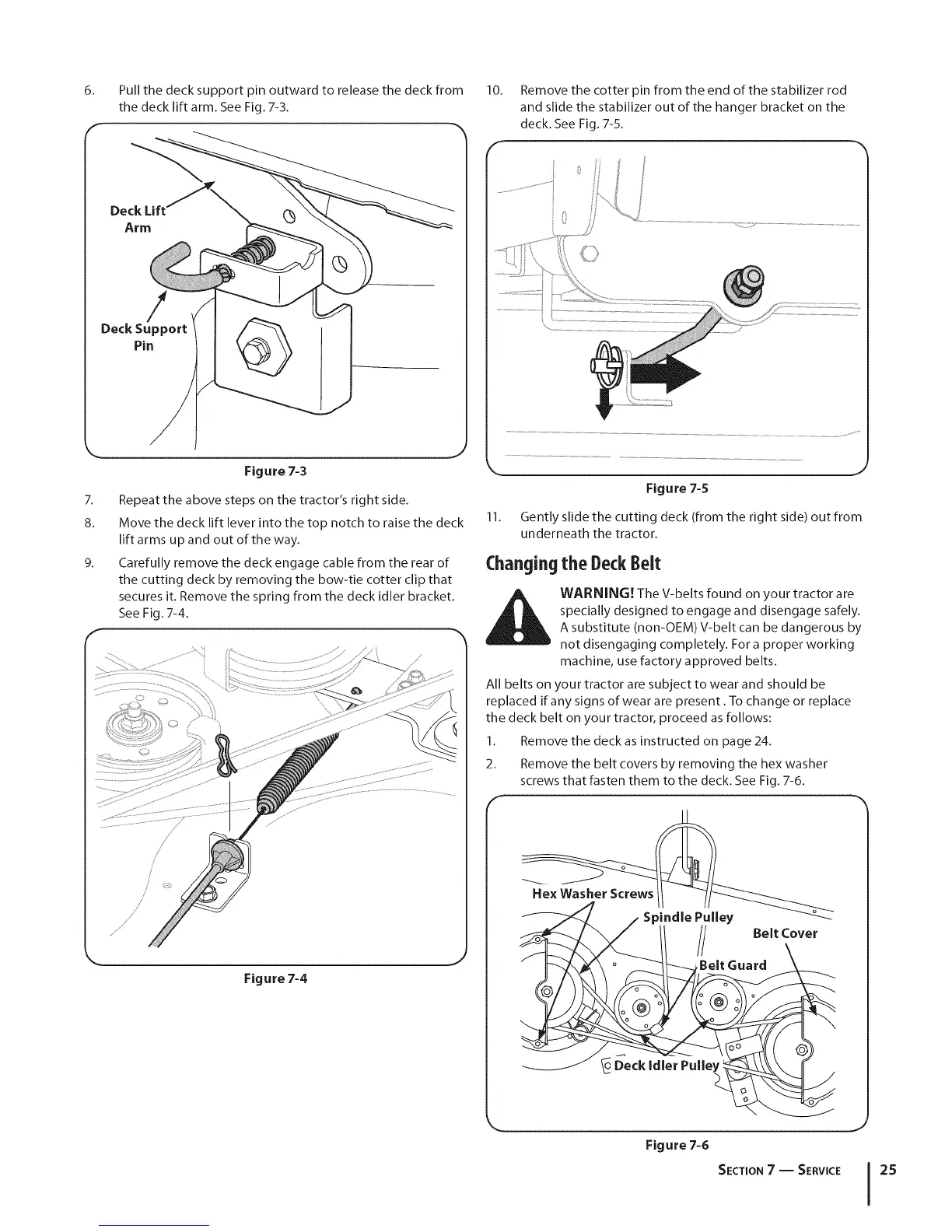

6. Pullthedecksupportpinoutwardtoreleasethedeckfrom
thedeckliftarm.SeeFig.7-3.
Deck PinSupport
J
Figure 7-3
7.
8.
9.
Repeat the above steps on the tractor's right side.
Move the deck lift lever into the top notch to raise the deck
lift arms upand out of the way.
Carefully remove the deck engage cable from the rear of
the cutting deck by removing the bow-tie cotter clip that
secures it. Remove the spring from the deck idler bracket.
See Fig. 7-4.
Figure 7-4
10.
Remove the cotter pin from the end of the stabilizer rod
and slide the stabilizer out of the hanger bracket on the
deck. See Fig. 7-5.
Figure 7-5
11. Gently slide the cutting deck (from the right side) out from
underneath the tractor.
Changingthe DeckBelt
2.
F
not disengaging completely. For a proper working
machine, use factory approved belts.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present. To change or replace
the deck belt on your tractor, proceed as follows:
1. Remove the deck as instructed on page 24.
Remove the belt covers by removing the hex washer
screws that fasten them to the deck. See Fig. 7-6.
Hex Washer Screws
WARNING! The V-belts found on your tractor are
specially designed to engage and disengage safely.
A substitute (non-OEM) V-belt can be dangerous by
Figure 7-6
J
SECTION7 -- SERVICE 2S

Cub Cadet LTX1040 Specifications

General

Engine Brand	Kohler
Engine Model	Courage
Cutting Width	42 inches
Transmission Type	Hydrostatic
Deck Engagement	Manual
Deck Size	42 inches
Blades	2
Turning Radius	18 inches
Deck Material	Steel
Cutting Height	1.5 - 4 in
Front Tires	15 x 6 in
Rear Tires	20 x 8 in
Warranty	3-year limited
