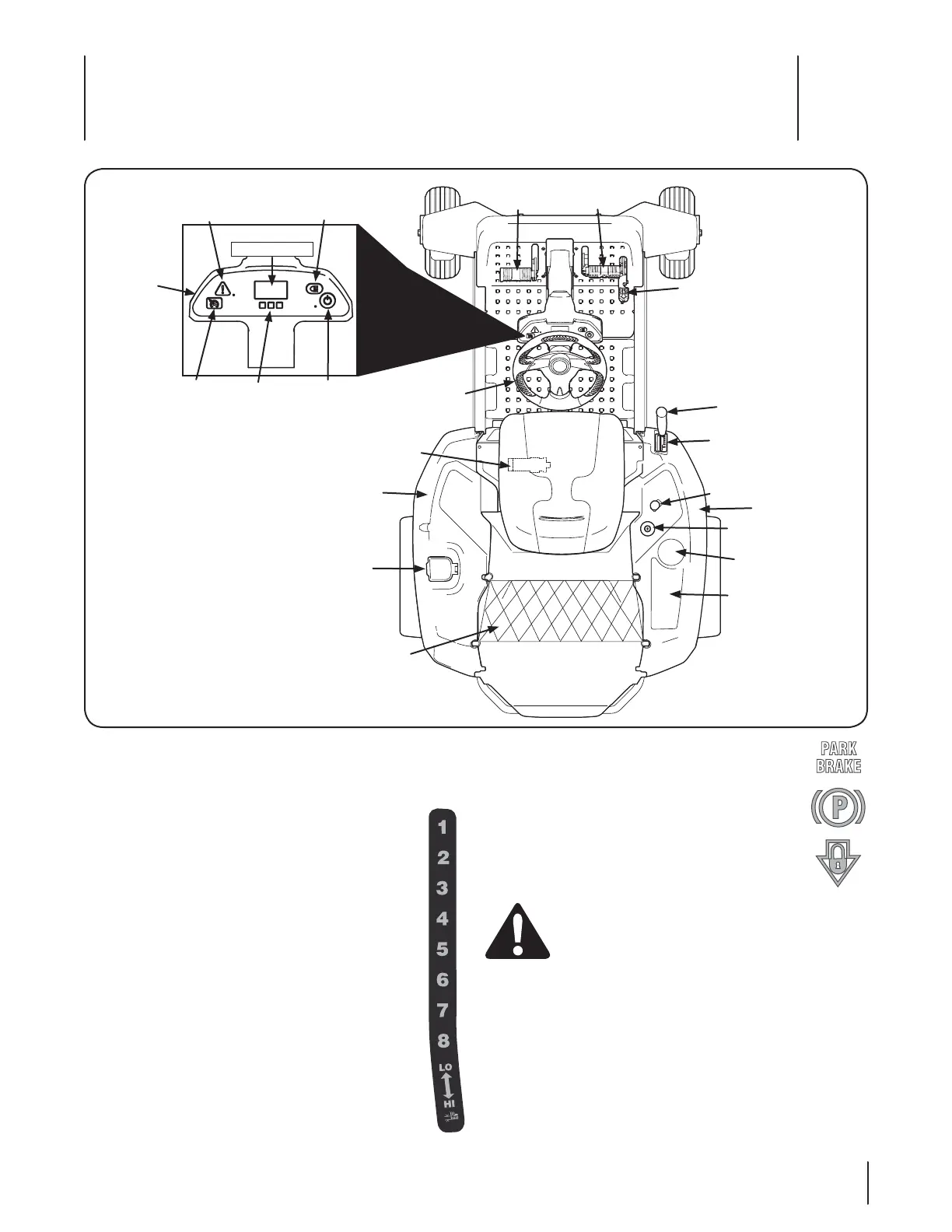

Controls & Features
4
11
Key Switch
(Batteries)
Forward
Drive Pedal
Reverse Drive Pedal
Deck Lift Handle
Deck Height
Index Bracket
Steering Wheel
Brake
Pedal
Cup Holder
Storage Tray
Blade Start/
Stop Knob
Cargo Box & Cargo Net
Charging Port Cover/
Charging Port
Reverse Caution
Mode Button
Headlight
Button
LCD Screen
Cruise Control
Button
Start/Stop
Button
Seat Adjustment Lever
Dash
Function
Buttons
LH Console
RH Console
NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate that
position on the rider when facing forward while seated in the
operator’s seat.
Deck Height Index Bracket
The deck height index bracket consists of eight index
notches located on the front of the RH console. Each
notch corresponds to a ⁄” change in the cutting height
ranging from 1-⁄” (position 1) to 4” (position 8).
Deck Lift Handle
The deck lift handle is located on the front of the RH console,
it is used to either raise or lower the mower deck to the
desired cutting position.
Pull the handle out of the index bracket to lower or raise the
cutting deck to the desired position. Move the lift handle to
the right until fully engaged in the index bracket.
Park Brake Lock (Not Shown)
The park brake lock is located at the base of the
steering column. It is used to engage the parking brake
when the rider is at rest. Refer to the Operation section
of this manual for detailed instructions regarding the
park brake lock.
NOTE: The park brake lock must be set if the operator
leaves the seat.
WARNING! Never leave a powered machine on
and unattended. Always disengage Blade Start/Stop
Knob, stop the rider, set parking brake and remove
key to prevent unintended starting.
P
A
R
K
B
R
A
K
E
