13Section 4 — controlS & FeatureS

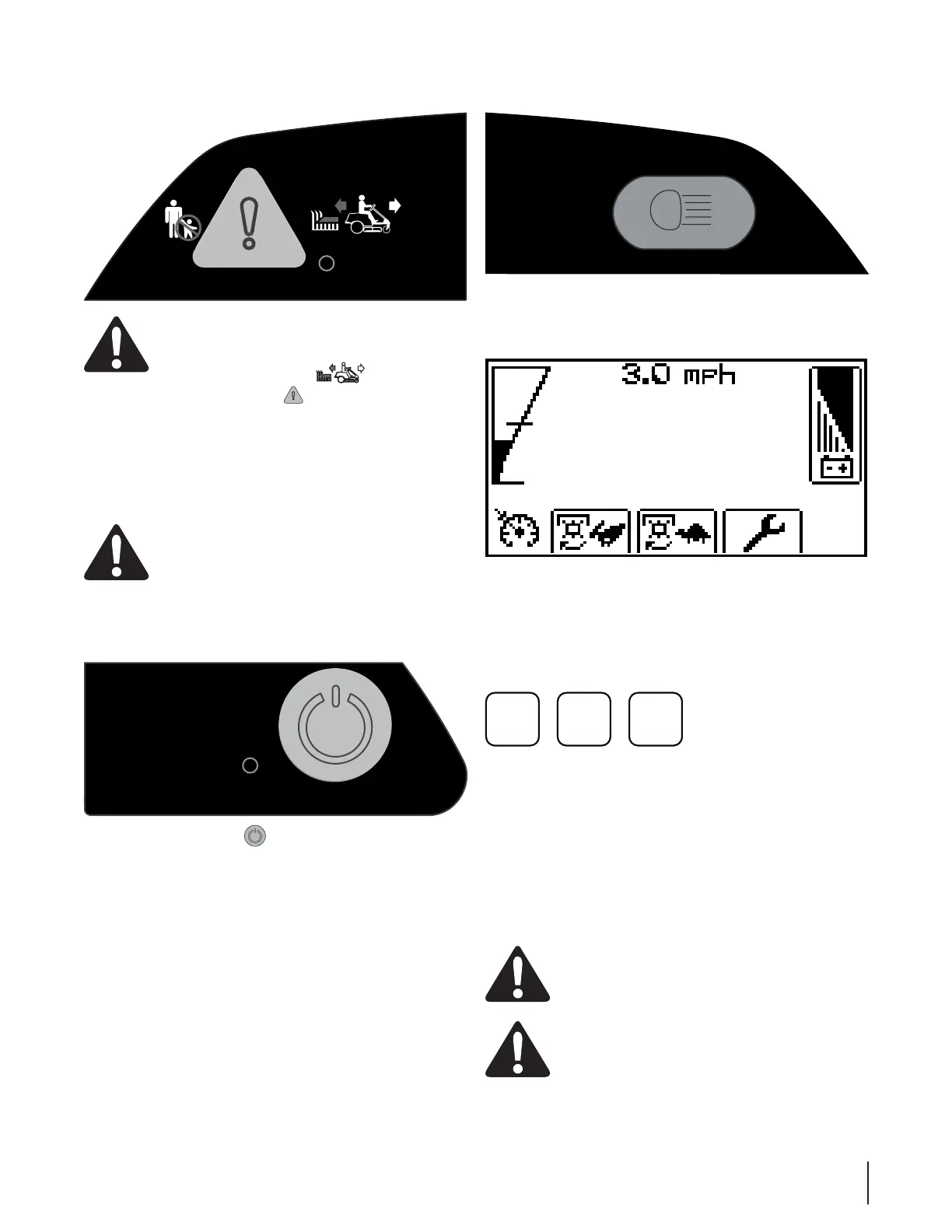

Reverse Caution Mode Button (RCM)
NO
CHILDREN
AROUND
REVERSE CAUTION MODE
REVERSE CAUTION
MODE ON LIGHT
CAUTION: Prior to operating the rider, refer to the
Operation section of this manual for detailed
instructions regarding operating the rider in
REVERSE CAUTION MODE .
The reverse caution mode button is located on the left side
of the dash. When activated the indicator light is illuminated.
The reverse caution mode allows the rider to be operated in
reverse with the blades engaged. Refer to the Operation section
of this manual for more information on operating the rider in the
reverse caution mode.
NOTE: Mowing in reverse is not recommended.
WARNING! Use extreme caution while operating
the rider in the REVERSE CAUTION MODE. Always
look down and behind before and while backing. Do
not operate the rider when children or others are
around. Stop the rider immediately if someone
enters the area.
Rider Start/Stop Button
RIDER START / STOP
RIDER
ON L
IGHT
The rider start/stop button is located on the right side of
the dash and is used to start and stop the rider when the key
switch is in the ON position. When the rider start/stop button is
activated the indicator light is illuminated.
Headlight Button
LIGHTS ON / OFF
The headlight button is located on the right side of the dash and
is used to turn the headlight on or off.
LCD Screen
The LCD display is located in the center of the dash and is used to
provide instructions, warnings and information about your rider
and its systems. See page 14 for a breakdown of the icons you
will see on your screen and an explanation of what these icons
mean.
Function Buttons
BLADE
NORMAL
BLADE
BOOST
SYSTEM
SETTINGS
The function buttons are on the rider’s dash and located below
the LCD Screen. The function buttons are used to navigate
through the rider’s menu screens and change settings.
Cargo Box & Cargo Net
The cargo box is located on the rear of the rider and could be
used for storage. The cargo net is used to secure the items in the
cargo box.
WARNING! Do not permit anyone to ride or stand
on the cargo box. They could fall off and be seriously
injured.
CAUTION: The storage area has a maximum
weight capacity of 20 pounds. Additional weight
may cause damage to the rider or affect the stability
of the tractor.
