14 Section 4— controlS & FeatureS
Symbol Description
Unplug the charger.
Charger is unplugged
When this icon is flashing on the LCD
screen the battery level is being measured
by the electrical system.
Sit in the operator’s seat.
Operator is in the seat.
Push Blade Start/Stop Knob Down/Off.
Blade Start/Stop Knob is Down/Off.
Remove foot from the forward/reverse
pedal.
Foot is off the forward/reverse drive
pedal.
Place foot on brake pedal.
Foot is on brake pedal.
Press the start/stop button
Symbol Description
Start/stop button has been pressed.
Tractor speed.
Blades engaged indicator.
Blade boost indicator.
Cruise control indicator.
Battery level indicator.
Power usage indicator.
Reverse Caution Mode is activated.
Pressing the function button beneath
this icon brings up a screen that shows
run time, deck run time, odometer,
allows language change (English/French/
Spanish), and unit change (km/mph).
Pressing the function button beneath this
icon allows the user to switch between
English, French and Spanish.

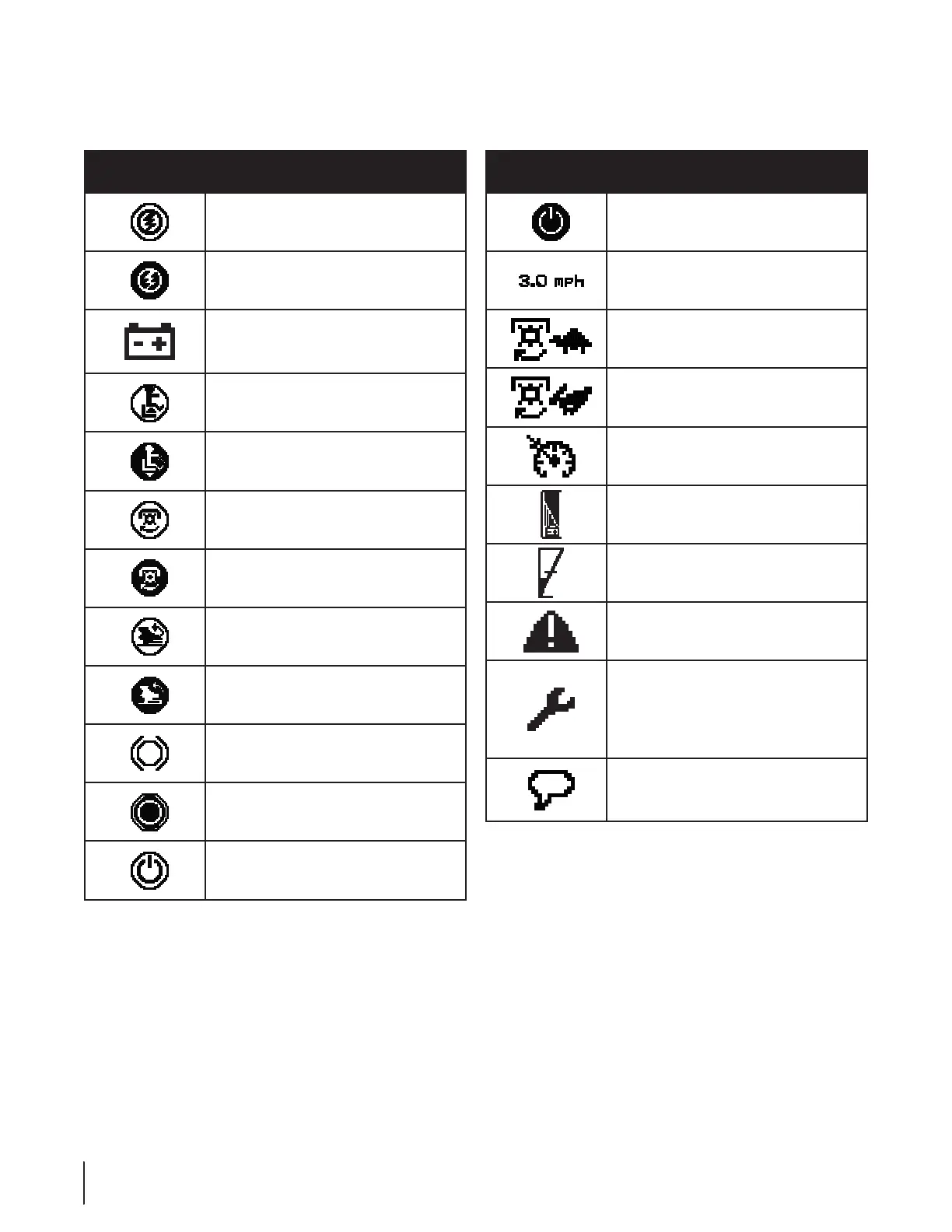

LCD Symbols
This page depicts and describes LCD symbols that may appear on the LCD panel. Read, understand, and follow all instructions on the tractor
before attempting to assemble and operate. Refer to the Operation section of this manual for more information on these symbols.
