Tractor Preparation
Remove the upper crating material from the shipping pallet, and
cut any bands or tie straps securing the tractor to the pallet.
Use the lift handle to raise the deck to its highest position.
Engage the transmission bypass rods on each side of the
tractor; then carefully roll the tractor off the shipping pallet.
transmission) are located beneath the frame platform, just inside
Remove the deck wash system nozzle adapter and oil drain tube
from the manual bag and store for future use.
Install Operator’s Seat

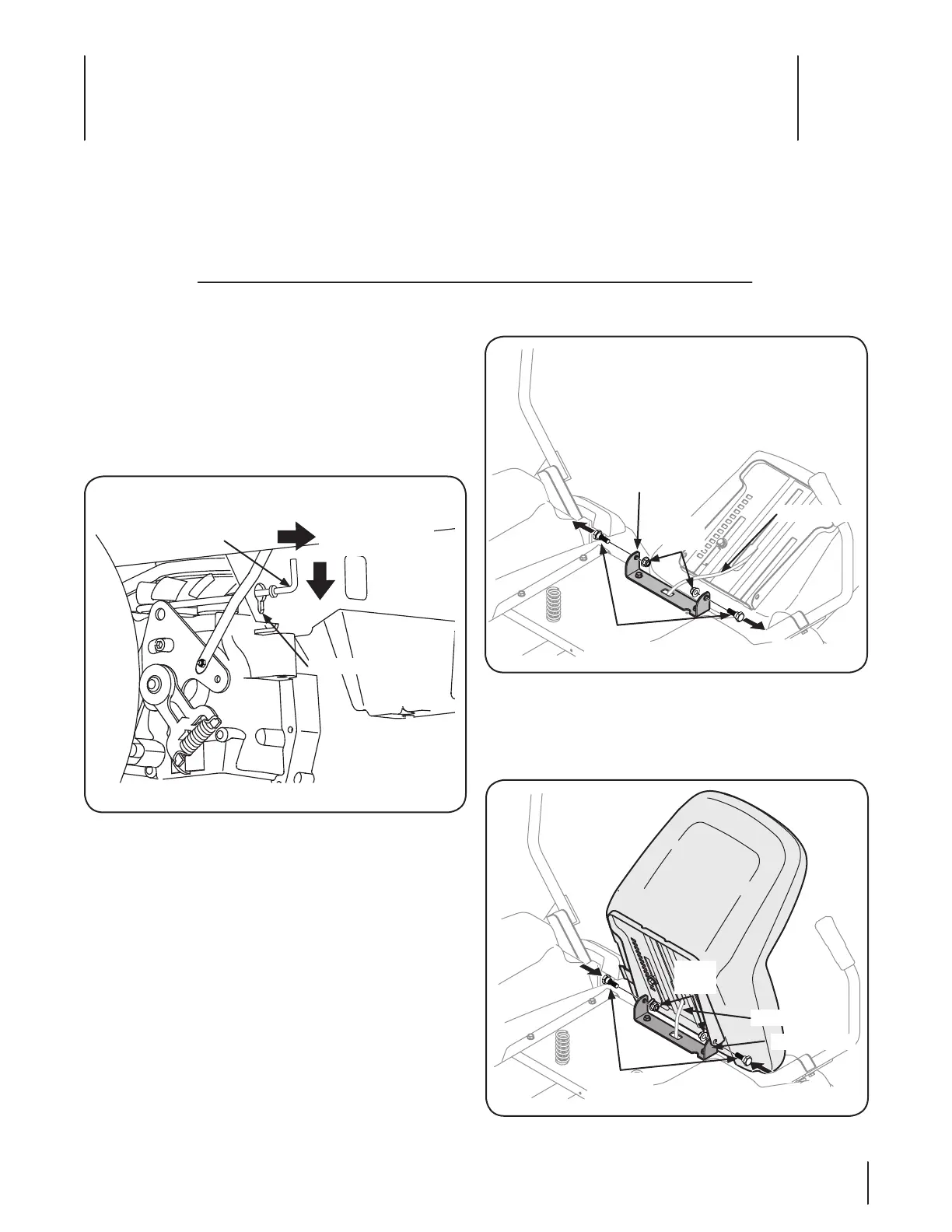

To install the seat proceed as follows:
NOTE: The seat is shipped with the seat switch and seat pan
attached.
Cut any straps securing the seat assembly and the drive
control levers to the tractor. Remove any packing material.
NOTE:
seat and the seat switch.
Remove the two shoulder bolts and lock nuts in the seat 2.
Rotate the seat into position and secure the seat into place
with the previously removed shoulder bolts and lock nuts.
Seat Bracket
Lock
Seat Bracket
Lock
Assembly & Set-Up
3
9
To Next Page
