Battery Removal
WARNING!
accessories contain lead and lead compounds. Wash
hands after handling.
The battery is located on the right/rear of the tractor beneath the
seat box frame. To remove the battery:
Remove the two hex tapping screws from the battery hold-down
bracket and remove the bracket. Use care to avoid losing
Remove the hex cap screw and sems nut securing the black 2.
negative battery lead to the negative battery post (marked
NEG). Move the cable away from the negative battery post.
Remove the hex cap screw and sems nut securing the red
positive battery lead to the positive battery post (marked
Carefully lift the battery out of the tractor.4.
Install the battery by repeating the above steps in the reverse 5.
order.
WARNING! Always connect the positive lead to the
battery before connecting the negative lead. This
will prevent sparking or possible injury from an
electrical short caused by contacting the tractor
body with tools being used to connect the cables.
Charging the Battery
Test and, if necessary, recharge the battery after the tractor has
been stored for a period of time.
Servicing Electrical System
damage caused by excessive amperage. Always use the same
capacity fuse for replacement. If the electrical system does not
If you have a recurring problem with blown fuses, have the
Dealer
Voltmeter
Reading
State of
Charge
Charging
Time
Full Charge
Battery Hold Down Bracket
Hex Tap Screw
Trim Strip

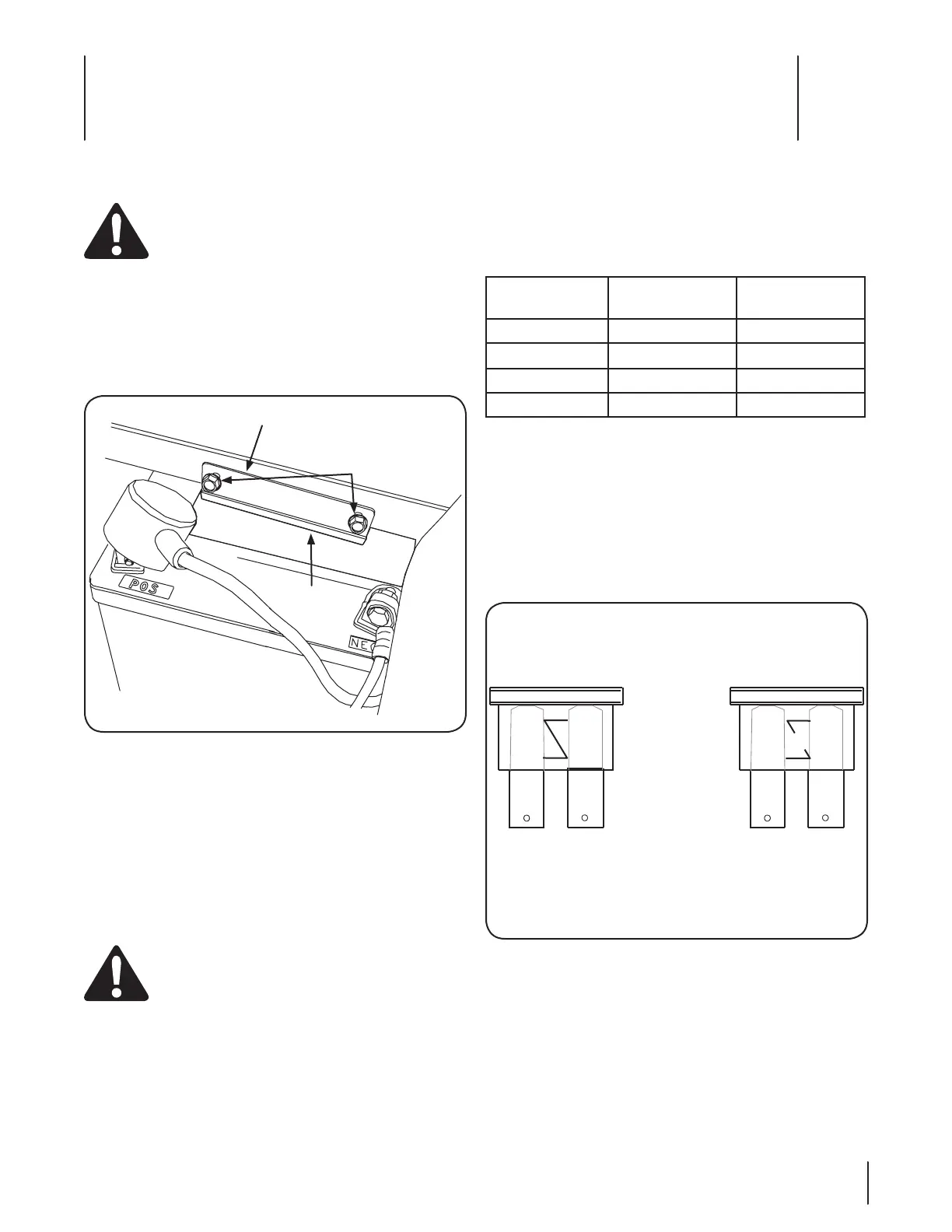

Figure 7-1
Figure 7-2
Figure 7-3
