Controls and Features
4
12

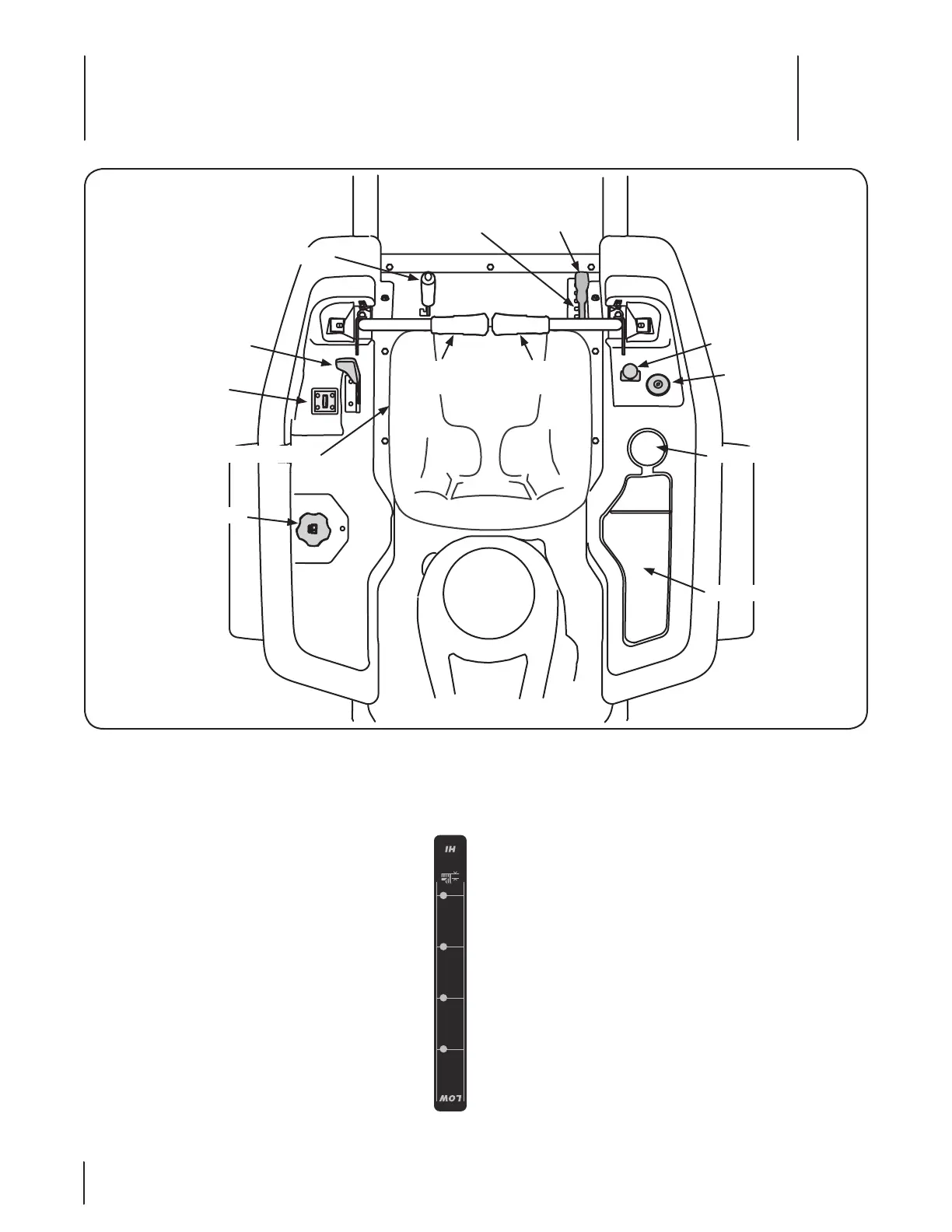

Figure 4-1
Parking Brake
Deck Height
Index
Deck Lift
Handle
RH Drive
Control Lever
LH Drive
Control Lever
Seat Adjustment Lever
Hour Meter/
Indicator Panel
Fuel Tank Cap
Ignition Switch
PTO Switch
Throttle/Choke
Control
Cup Holder
Storage Tray
NOTE:
position on the tractor when facing forward while seated in the
Deck Height Index
The deck height index consists of six index notches located
on the front/right of the seat box frame. Each notch
corresponds to a ⁄ change in the deck height position
⁄
notch.
Deck Lift Handle
The deck lift handle is located on the front/right of the seat
box frame, and is used to raise and lower the mower deck.
downward to lower the deck, or pull upward to raise the
deck. When the desired height is attained, move the lift
handle to the right until fully in the index notch.
RH and LH Drive Control Levers
space to permit the operator to either sit in the tractor seat, or to
dismount the tractor. The levers must be fully opened out and in
the neutral position to start the tractor engine.
Consequently, these levers control all of the movements of the
tractor. Driving and steering utilizing these control levers is
quite different from conventional tractors, and will take some
the control levers.
