33se c t i O n 7 — se r v i c e
When reinstalling the blades, be sure they are installed so
that the wind wings are pointing upward toward the top of
the deck.
4.
5.
Transmission Drive Belt
If the transmission drive belt becomes worn and causes the drive
transmissions to slip, the drive belt must be replaced. To replace
the drive belt, proceed as follows:
bottom of the engine following the instructions in Deck
Removal.
From beneath the rear of the tractor, insert a 2. ⁄
Using the ratchet for leverage, pivot the idler bracket and
the belt off and above the engine pulley and off the idler
pulley.
With the belt loose, lift the belt off, up and over the two 4.
transmission drive pulleys. Remove the belt from the
engine and idler pulleys.
Loop the new belt and slide over and onto the two transmission 5.
pulleys.
Route the belt above the idler bracket back to the engine 6.
engine drive pulley.
Using the ratchet for leverage, pivot the idler bracket and 7.
idler pulley against the spring tension; then slip the belt
down into the engine drive pulley and onto the idler pulley.
Release the idler bracket so that the idler pulley tightens 8.
against the back side of the belt and tensions the drive belt.
Reinstall the deck drive belt.

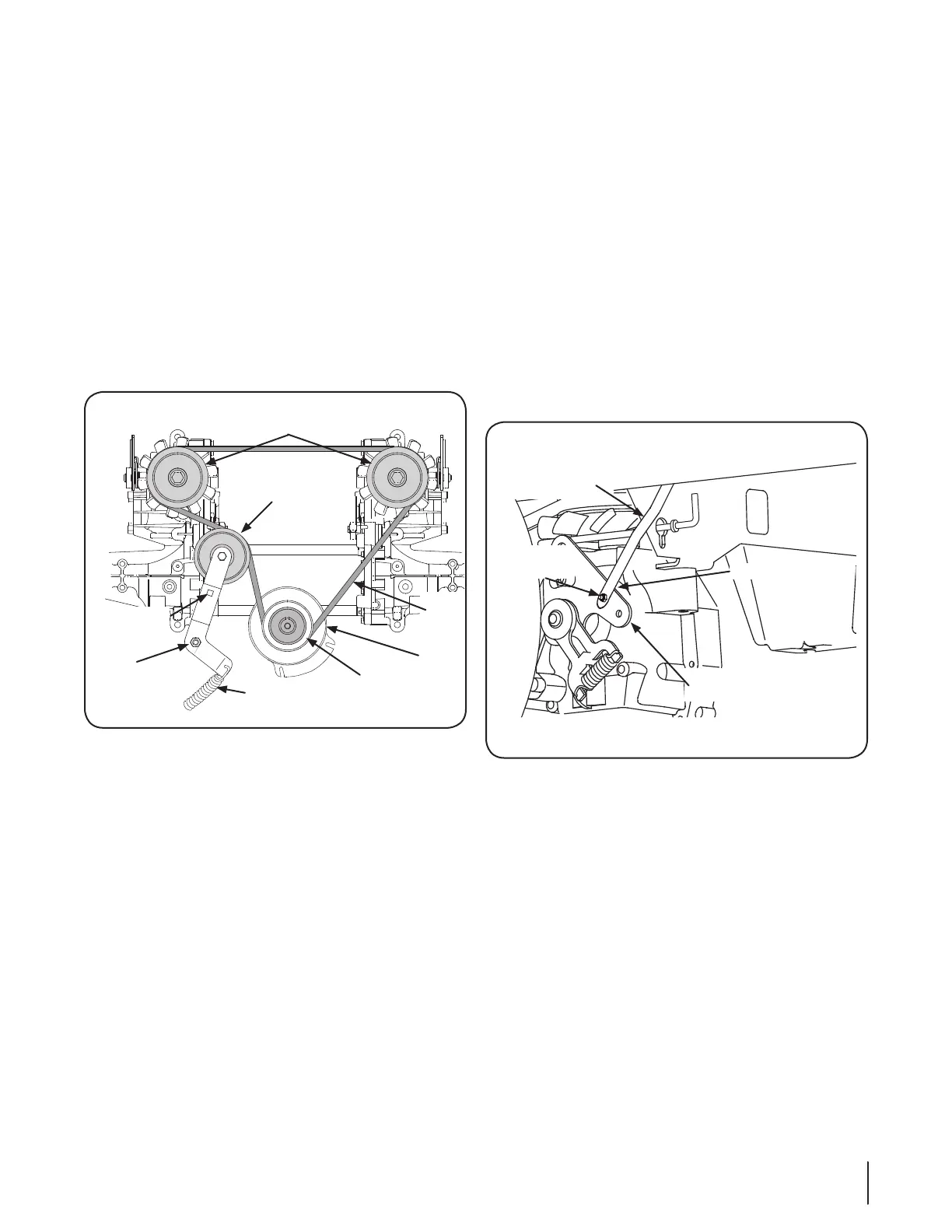

Transmission
Drive Pulley
Square Hole
Idler
Bracket
Idler Bracket
Spring
Engine
Pulley
PTO
Pulley
Drive
Belt
Idler
Pulley
Figure 7-9
Tractor Creeping
Creeping is the slight forward or backward movement of the
tractor when the engine is running at high idle and the drive
control levers are opened out in the neutral position.
If after operating the tractor for some time, it begins to creep
while in the neutral position, adjust the transmission control rods
as follows.
(e.g. wall, post, etc.).
2.
approximately one inch of the ground.
With the engine running at high idle and the drive control
levers opened out in the neutral position, and the parking
brake disengaged, check the rear wheels for rotation.
If only one wheel is rotating, locate the transmission 4.
control rod beneath the frame at the front of the rear tire. If
Remove the flange lock nut and hex screw securing the 5.
transmission control rod to the transmission control arm.
Wheel rotation should stop. If it does not, contact your Cub
If the rotation stops, adjust the control rod up or down as 6.
necessary to align with the hole in the transmission control
arm. Re-insert the hex nut into the hole in the control arm
and secure with the hex lock nut.
If necessary, repeat the previous two steps to adjust the 7.
other transmission control rod.
Lower the tractor and remove the jack.8.
RH Transmission
Control Rod
Hex Screw
Transmission
Control Arm
Flange
Lock Nut
Figure 7-10
