The position on the rear deck rollers is generally not 5.
changed. In the low position the rollers will roll the grass.
In the high position, the rollers are in a storage position
and do little or no rolling of the grass. Change the roller
position as follows:
Remove the cotter pin from the left end of the roller shaft.
Slide the roller shaft to the right and remove the rollers 2.
as the shaft is fully withdrawn from the right rear roller
Insert the roller shaft through the other roller bracket hole. 3.
Slide the rollers onto the shaft as you slide the shaft to the
left.
If necessary, rotate the roller shaft to align the flat area on
the left end of the shaft with the flat of the hole in the left
roller bracket. Slide the shaft through the left roller bracket
and secure with the cotter pin.

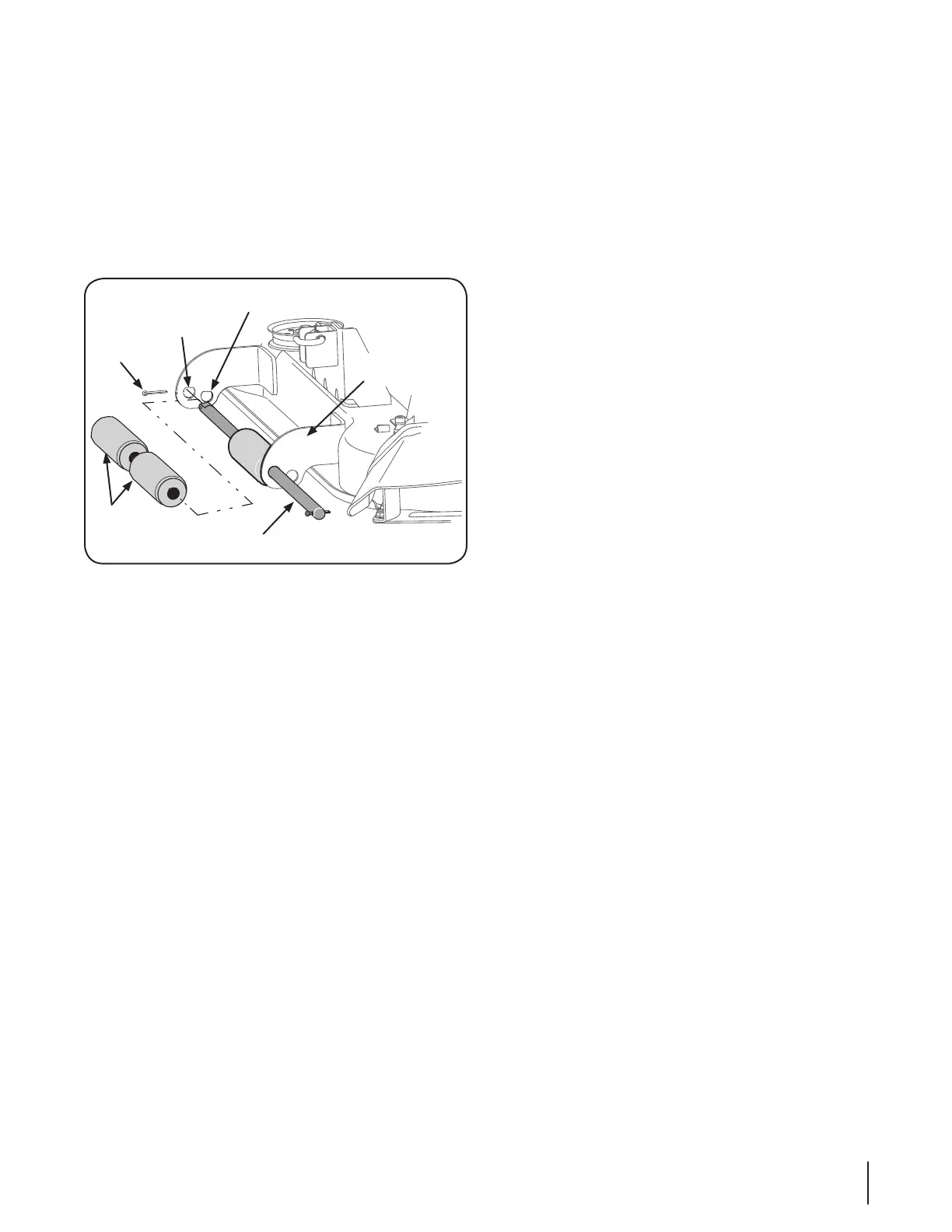

Cotter
Pin
High
Position
Low Position
Right Rear
Roller Bracket
Roller
Roller Shaft
Figure 6-8
27se c t i O n 6 — Ma i n t e n a n c e & ad j u s t M e n t s
