12 se c t i O n 2— as s e M b l y & se t -up
In the neutral position with hands on the steering wheel,
approximately vertical.
Check the results of any adjustments to the conditions described
above. Repeat any adjustment procedures as required until all
conditions are met.
Suspension Seat
This tractor is equipped with an adjustable suspension seat
system, which includes a seat with retractable seat belt assembly,
the seat bottom and is connected to the machine electrical
system.
The seat has several adjustments to meet the individual needs of
Seat Position
To adjust the position of the seat, pull forward and hold the
to the desired position; then release the adjustment lever.
Make sure seat is locked into position before operating the
tractor.
Arm Rests
To adjust to the arm rest rotate the roller bearing, single-
locking knob on the bottom of the arm. The angle of the
arm can move up or down.
Steering Wheel
To adjust the distance of the steering wheel column to the
2.
into place by turning the adjustment lock lever towards the
front of the tractor until secure.
To adjust the tilt of the steering wheel:
2.
place by pushing the adjustment lock lever forward until
the steering wheel is secure.

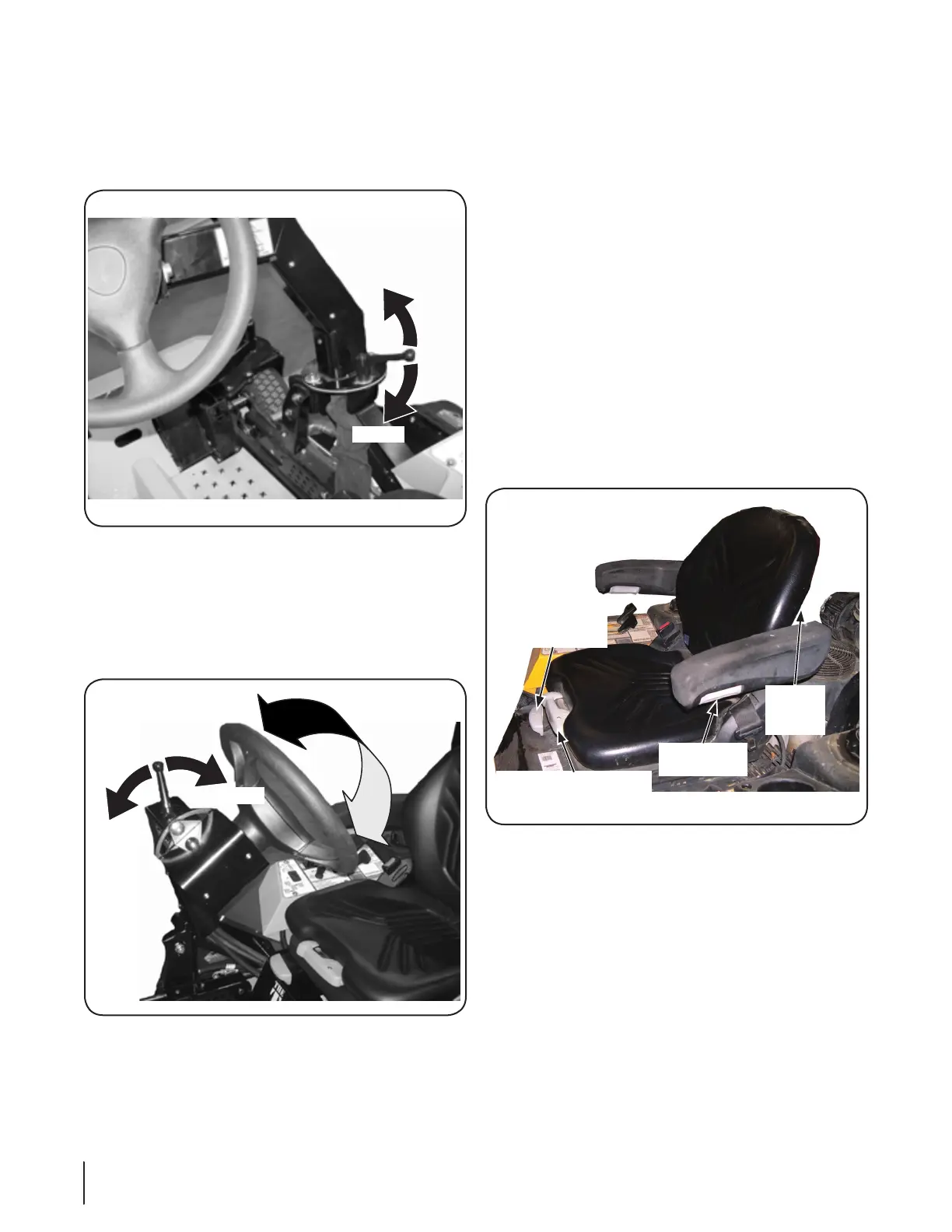

Figure 3-7
Figure 3-8
Seat Adjustment
Lever
Mechanical Suspension
Mechanism
Lumbar
Support
Knob
Arm Rest
Adjustments
Figure 3-9
