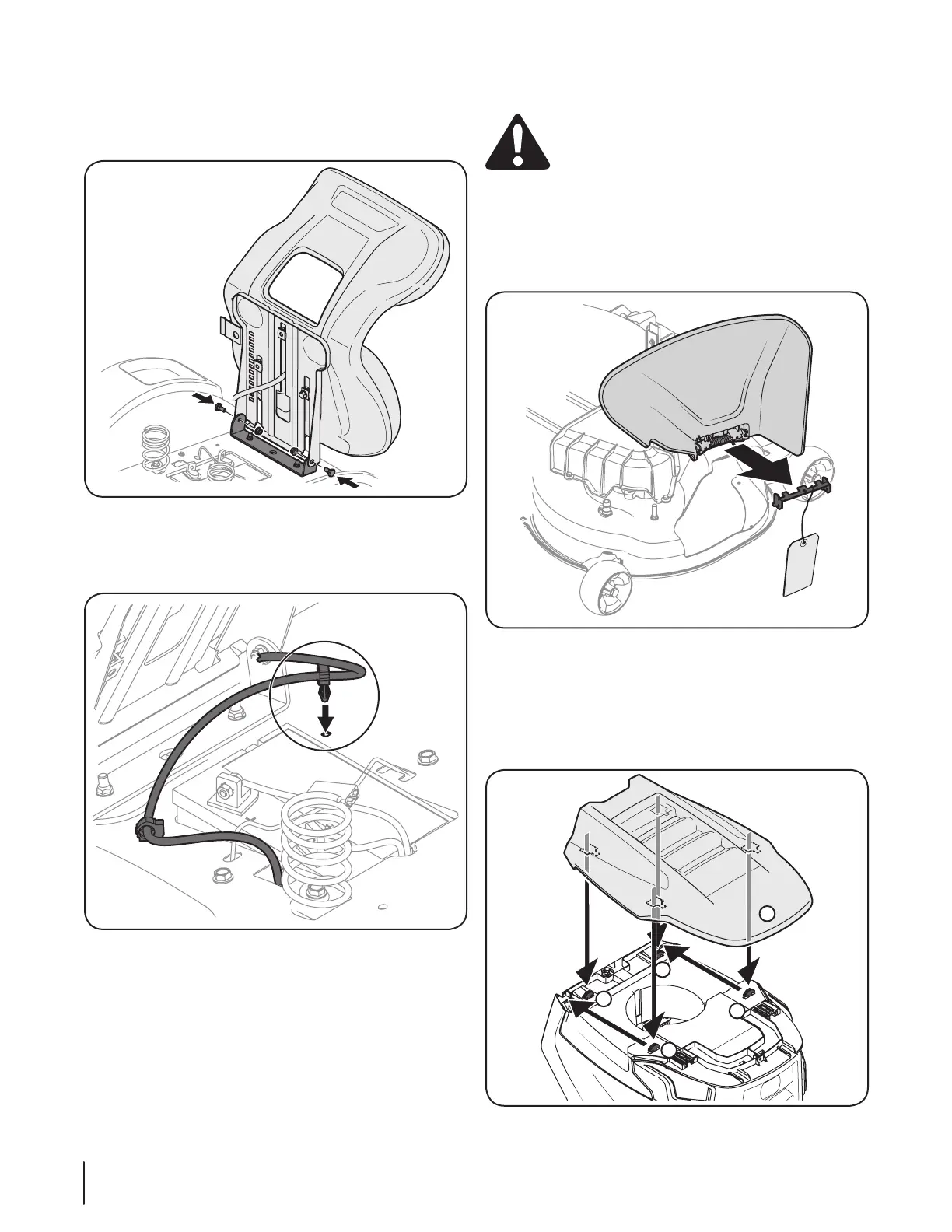

10 Section 3— ASSembly & Set-Up
3. Rotate the seat into position and secure the seat into place
with the previously removed shoulder screws and flange
lock nuts. Be careful not to crimp or damage the wire
harness while installing the seat. See Figure 3-3.
Figure 3-3
4. Using the harness clip attached to the harness, secure the
excess wire to the fender by snapping the harness clip in
place as shown in Figure 3-4.
Figure 3-4
Lower Deck Discharge Chute Deflector
WARNING! Never operate the mower deck
without the chute deflector installed and in the
down position.
1. Check the mower deck for a shipping brace that may be
holding the chute deflector upward for shipment. If the
brace is present, it must be removed before operating the
tractor. Holding the chute deflector fully upward, remove
the shipping brace. Lower the chute deflector and discard
the shipping brace. See Figure 3-5.
Figure 3-5
Installing the Hood Topper (If necessary)
To install the hood topper (1), line up the holes on the hood topper
(1) up with the tabs (2) in the hood frame as shown in Figure 3-6.
Carefully insert the tabs (2) into the hood topper and pull back to lock
into place.
Figure 3-6
